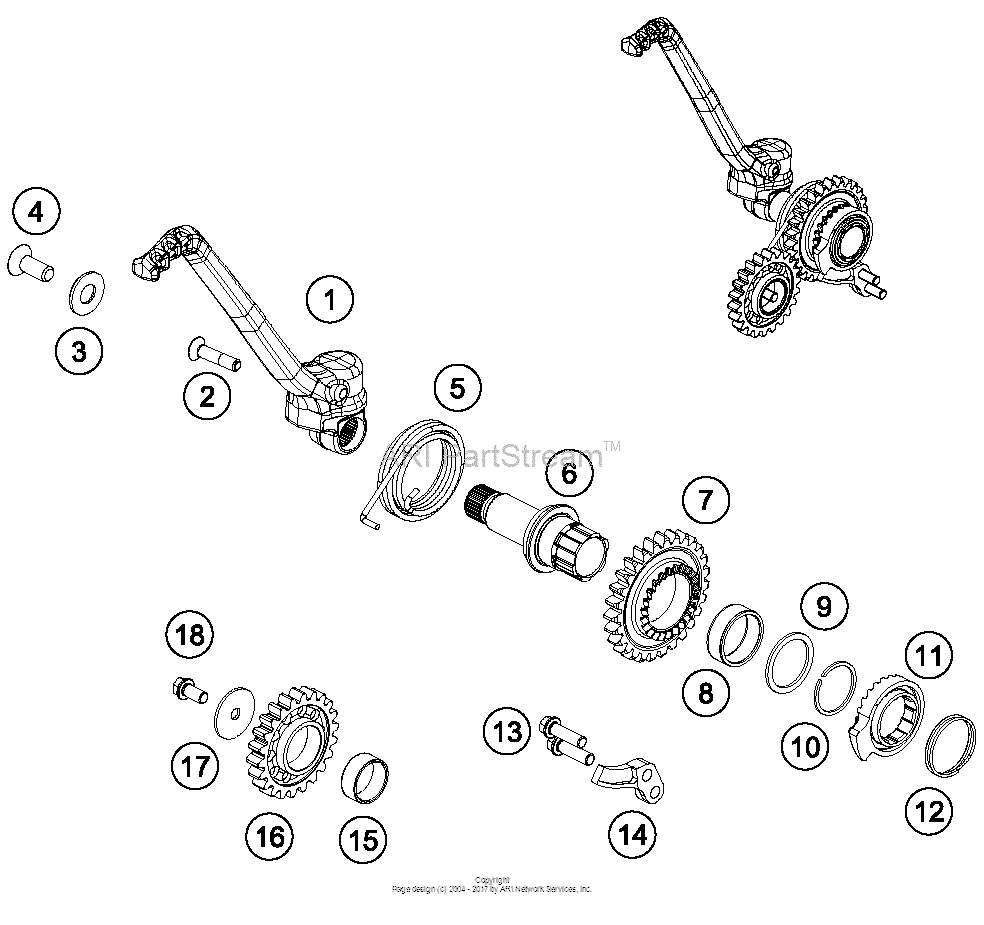

Kick Starter Diagram KTM 300 300 XC
- Year
- 2017
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50433070044 Kickstarter Cpl2017 |
50433070044 |
US $119.39 |
||
|
2
|
2
54633052000
Locating Screw M6X23
2017 |
54633052000 |
— | ||
|
3
|
3
54633037000 Washer 8mm galvanized2017 |
54633037000 |
US $5.42 |
||
|
4
|
4
0019080206S Flat head screw m. isa45 m8x202017 |
0019080206S |
US $3.26 |
||
|
5
|
5
50433054100 Kick Starter Spring2017 |
50433054100 |
US $4.90 |
||
|
6
|
6
79233050000 Kick Starter Shaft2017 |
79233050000 |
US $79.58 |
||
|
7
|
7
79233051027 Kick Starter Wheel 27Z2017 |
79233051027 |
US $91.65 |
||
|
8
|
8
0405252910 Needle bear k 25x29x102017 |
0405252910 |
US $9.16 |
||
|
9
|
9
54833044000 Stop Disc 25X31X1,52017 |
54833044000 |
US $3.71 |
||
|
10
|
10
0417025000 Circlip Sw252017 |
0417025000 |
US $2.84 |
||
|
11
|
11
50433052000 Kick Starter Ratchet2017 |
50433052000 |
US $46.65 |
||
|
12
|
12
58033028000 Ratchet gear spring 1,2 mm2017 |
58033028000 |
US $1.24 |
||
|
13
|
13
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
14
|
14
59033069000 Bump partTX30 |
59033069000 |
US $12.12 |
||
|
15
|
15
79433053050 Bronze BushTX30 |
79433053050 |
US $10.15 |
||
|
16
|
16
79233053022 Kick Starter Idler 22ZTX30 |
79233053022 |
US $67.63 |
||
|
17
|
17
79240017000 Stop Disc 6X26X1,5TX30 |
79240017000 |
US $2.60 |
||
|
18
|
18
0025060126 Hh collar screw m6x12 tx30TX30 |
0025060126 |
US $3.96 |
