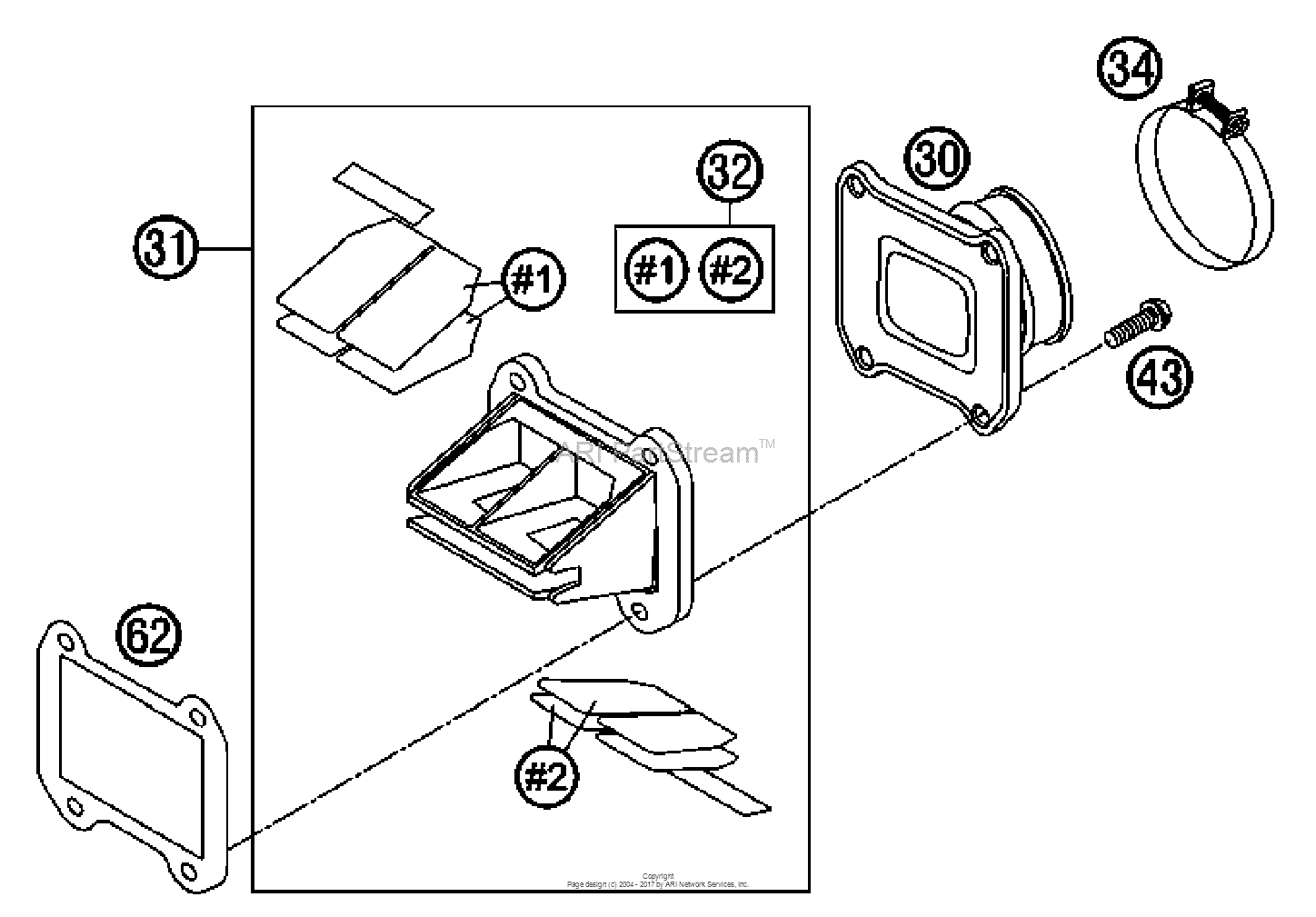

Reed Valve Case Diagram KTM 300 300 XC
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30
|
30
54830050000 Intake flange v-force 04FOR WINTER OPERATION |
54830050000 |
US $44.93 |
||
|
31
|
31
54830051244 Reed valve assy v-force cpl.07FOR WINTER OPERATION |
54830051244 |
US $321.50 |
||
| replacement | |||||
|
31
|
31
0015060203
Hh Collar Screw M 6X20 Ws=8
FOR WINTER OPERATION |
0015060203 |
— | ||
| replacement | |||||
|
31
|
31
0025060206 Hh collar screw m6x20 tx30FOR WINTER OPERATION |
0025060206 |
US $1.97 |
||
|
32
|
32
54830052100 Reed valve set v-force 07FOR WINTER OPERATION |
54830052100 |
US $142.53 |
||
| replacement | |||||
|
32
|
32
0015060203
Hh Collar Screw M 6X20 Ws=8
FOR WINTER OPERATION |
0015060203 |
— | ||
| replacement | |||||
|
32
|
32
0025060206 Hh collar screw m6x20 tx30FOR WINTER OPERATION |
0025060206 |
US $1.97 |
||
|
34
|
34
54330061000 Clamp 52/12 gemiFOR WINTER OPERATION |
54330061000 |
US $7.31 |
||
|
43
|
43
0015060203
Hh Collar Screw M 6X20 Ws=8
FOR WINTER OPERATION |
0015060203 |
— | ||
| replacement | |||||
|
43
|
43
0025060206 Hh collar screw m6x20 tx30FOR WINTER OPERATION |
0025060206 |
US $1.97 |
||
|
62
|
62
54830062100
Gasket reed valve case 04
FOR WINTER OPERATION |
54830062100 |
— | ||
| replacement | |||||
|
62
|
62
54830062200 Gasket Reed Valve CaseFOR WINTER OPERATION |
54830062200 |
US $5.36 |
||
