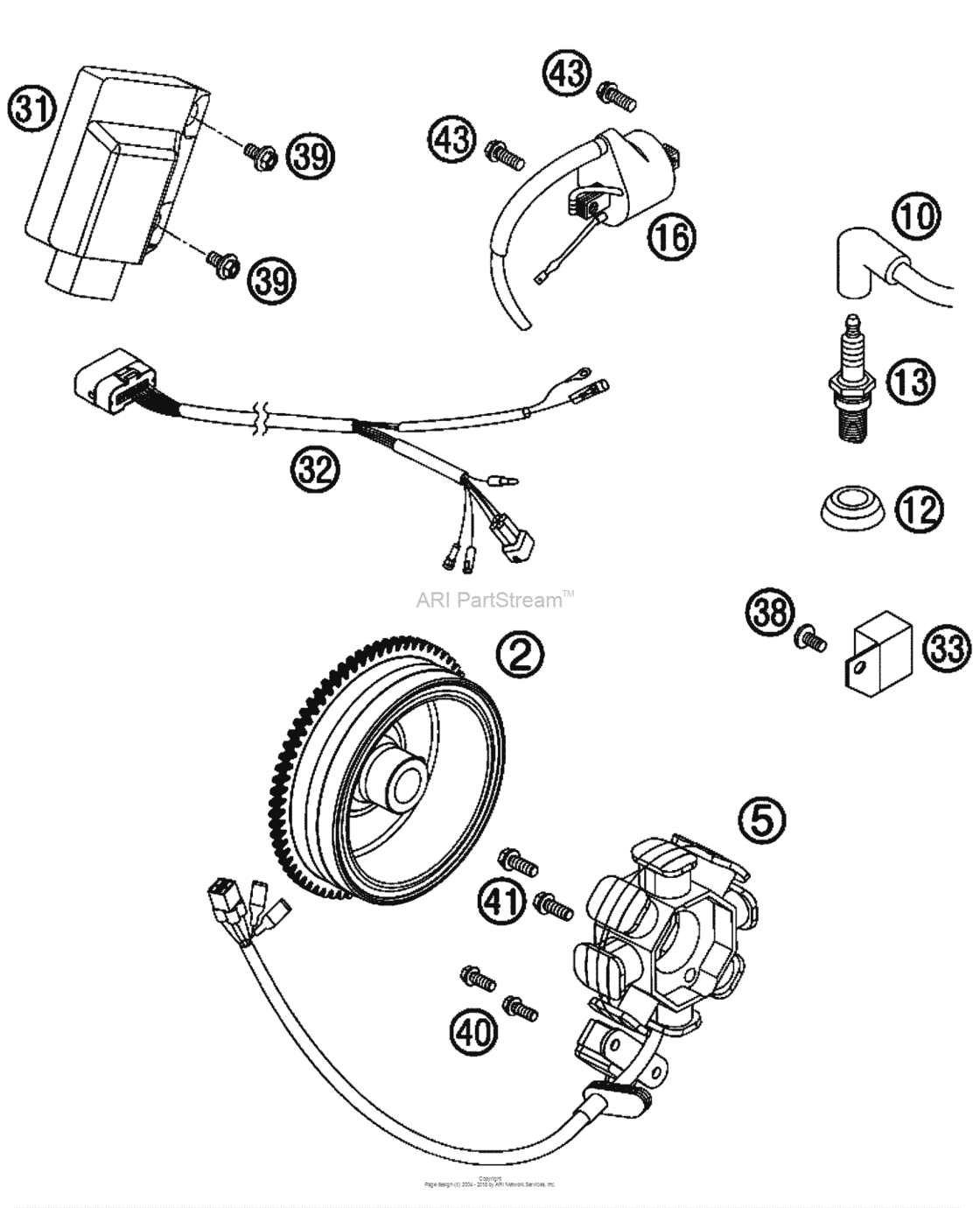

Ignition System Diagram KTM 300 300 XC
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
55139005000 Flywheel kokusanL=109,5MM '91 |
55139005000 |
US $362.19 |
||
|
5
|
5
55139004000 Stator kokusanL=109,5MM '91 |
55139004000 |
US $187.51 |
||
| replacement | |||||
|
5
|
5
55139004100 StatorL=109,5MM '91 |
55139004100 |
US $187.51 |
||
|
10
|
10
47039090000 Spark plug cap ngk reinforc.0404 |
47039090000 |
US $24.26 |
||
|
12
|
12
50231012000 Sealing cup for spark plug04 |
50231012000 |
US $3.91 |
||
|
13
|
13
54739093000 Spark plug ngk br7es04 |
54739093000 |
US $4.15 |
||
|
16
|
16
59039006000 Ignitioncoil "ig5128"04 |
59039006000 |
US $132.38 |
||
|
31
|
31
54839331200 Cdi unit 300 exc/xc 0707 |
54839331200 |
US $290.28 |
||
|
32
|
32
54839032300 Wiring harness f.cdi 2-st.sx0707 |
54839032300 |
US $67.86 |
||
|
33
|
33
54711034000 Voltage regulator koku.exc usa07 |
54711034000 |
US $96.37 |
||
|
38
|
38
0014060103
Hh Collar Screw M6X10 Tx30
WS=8 |
0014060103 |
— | ||
| replacement | |||||
|
38
|
38
0024060106 Hh collar screw m6x10 tx30WS=8 |
0024060106 |
US $4.35 |
||
|
39
|
39
0023060123 Collar screw m6x12 txTX |
0023060123 |
US $0.87 |
||
|
40
|
40
0014050123 Hh collar screw m 5x12 ws=6WS=6 |
0014050123 |
US $2.19 |
||
|
41
|
41
0015060203
Hh Collar Screw M 6X20 Ws=8
WS=8 |
0015060203 |
— | ||
| replacement | |||||
|
41
|
41
0025060206 Hh collar screw m6x20 tx30WS=8 |
0025060206 |
US $1.97 |
||
|
43
|
43
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
