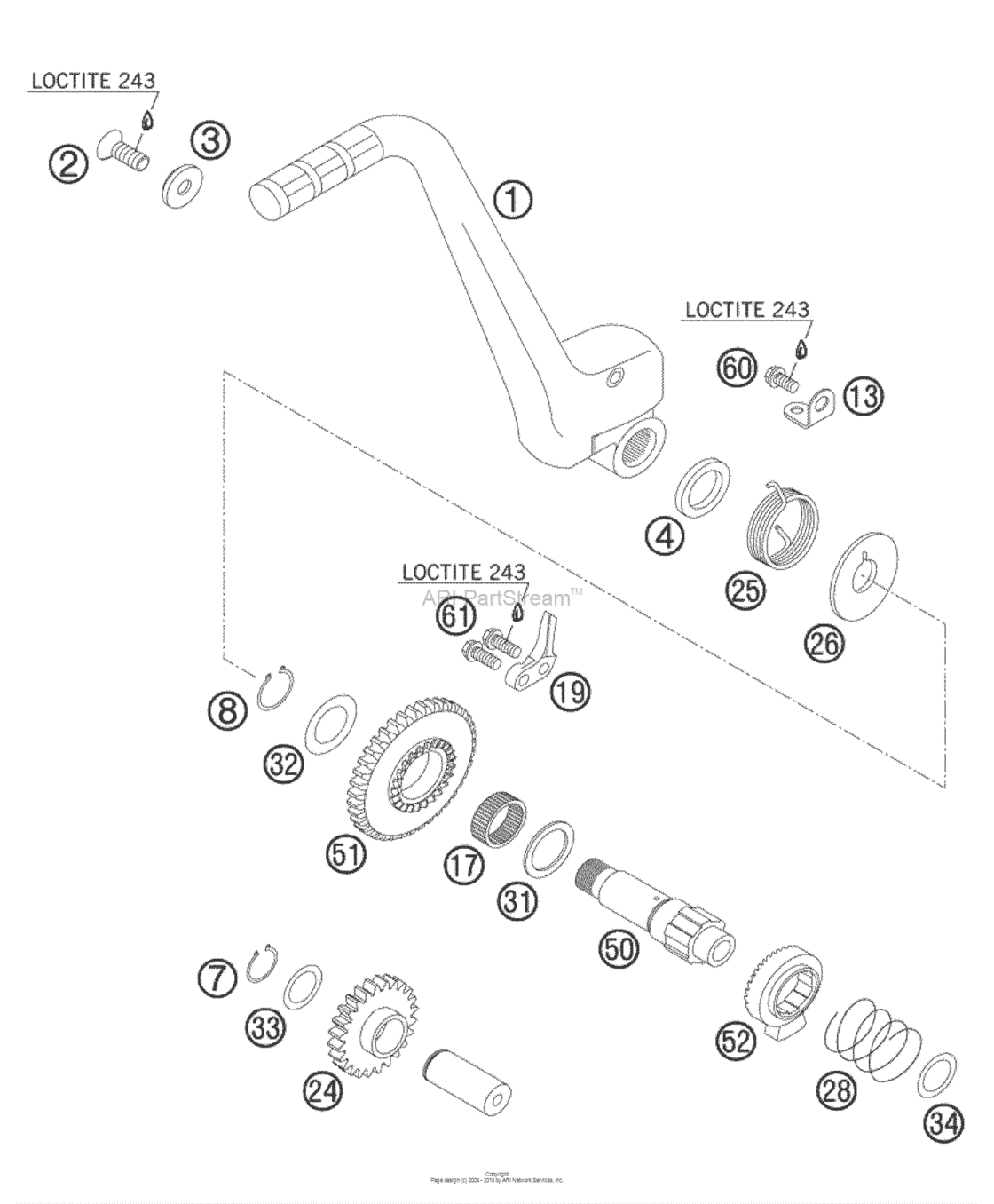

Kick Starter Diagram KTM 300 300 XC
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77033170044 Kick starter cpl.TX30 |
77033170044 |
US $121.60 |
||
|
2
|
2
54610052000 Sprocket screw-ah m8x20 ws=6WS=6 |
54610052000 |
US $2.35 |
||
| replacement | |||||
|
2
|
2
0019080206 Counter-sunk screw isa45 m8x20WS=6 |
0019080206 |
US $1.82 |
||
|
3
|
3
54633037000 Washer 8mm galvanizedWS=6 |
54633037000 |
US $5.42 |
||
|
4
|
4
0760193070 Shaft seal ring 19x30x7 bWS=6 |
0760193070 |
US $5.24 |
||
|
7
|
7
0471170010 Circlip Din0471-17X1WS=6 |
0471170010 |
US $1 |
||
|
8
|
8
0471190120 Circlip din0471-19x1,2WS=6 |
0471190120 |
US $1.12 |
||
|
13
|
13
54633074000 Spring hangerWS=6 |
54633074000 |
US $3.13 |
||
|
17
|
17
0405222610
Needle Bear.k 22X26X10 Divided
WS=6 |
0405222610 |
— | ||
| replacement | |||||
|
17
|
17
0405222611 Needle bear.k 22x26x10 dividedWS=6 |
0405222611 |
US $12.41 |
||
|
19
|
19
59033069000 Bump partWS=6 |
59033069000 |
US $12.12 |
||
|
24
|
24
54833024000 Intermediate gear 20032003 |
54833024000 |
US $78.22 |
||
|
25
|
25
54633025000 Kickstarter spring2003 |
54633025000 |
US $10.71 |
||
|
26
|
26
54633026000 Driving hub2003 |
54633026000 |
US $19.81 |
||
|
28
|
28
58033028000 Ratchet gear spring 1,2 mm2003 |
58033028000 |
US $1.24 |
||
|
31
|
31
58033031000 Stop disk 22,2 x 30 x 1,52003 |
58033031000 |
US $3.32 |
||
|
32
|
32
59033080000 Shim 20X32X12003 |
59033080000 |
US $1.73 |
||
|
33
|
33
54633090000 Stop disk 17,2x25x12003 |
54633090000 |
US $2.94 |
||
|
34
|
34
0988172405 Shim washer din0988-17x24x0,52003 |
0988172405 |
US $2.24 |
||
|
50
|
50
59033050100 Kickstarter shaft2003 |
59033050100 |
US $56.58 |
||
|
51
|
51
54833051034 Kickstarter gear 34-t 0303 |
54833051034 |
US $55.47 |
||
|
52
|
52
59033052000 Ratchet gear kickstarter03 |
59033052000 |
US $35.33 |
||
|
60
|
60
0015060103
Hh collar screw m 6x10 ws=8
WS=8 |
0015060103 |
— | ||
| replacement | |||||
|
60
|
60
0025060106 Hh collar screw m6x10 tx30WS=8 |
0025060106 |
US $1.58 |
||
|
61
|
61
0015060203
Hh Collar Screw M 6X20 Ws=8
WS=8 |
0015060203 |
— | ||
| replacement | |||||
|
61
|
61
0025060206 Hh collar screw m6x20 tx30WS=8 |
0025060206 |
US $1.97 |
||
