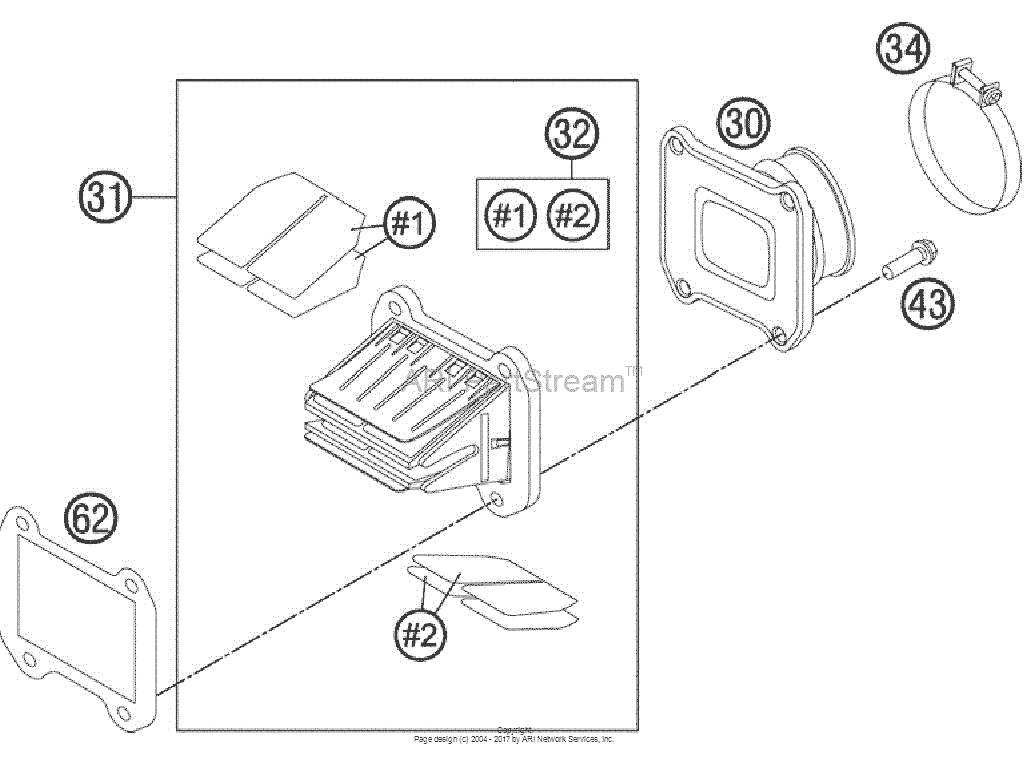

Reed Valve Case Diagram KTM 300 300 XC
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 XC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30
|
30
54830050000 Intake flange v-force 0404 |
54830050000 |
US $44.93 |
||
|
31
|
31
54830051544 Reed Valve Assy Cpl04 |
54830051544 |
US $342.55 |
||
| replacement | |||||
|
31
|
31
0015060203
Hh Collar Screw M 6X20 Ws=8
04 |
0015060203 |
— | ||
|
32
|
32
54830052200
Reed Valve Assy Cpl
04 |
54830052200 |
— | ||
| replacement | |||||
|
32
|
32
0015060203
Hh Collar Screw M 6X20 Ws=8
04 |
0015060203 |
— | ||
|
34
|
34
54330061000 Clamp 52/12 gemi04 |
54330061000 |
US $7.31 |
||
|
43
|
43
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
62
|
62
54830062200 Gasket Reed Valve CaseTX30 |
54830062200 |
US $5.36 |
||
