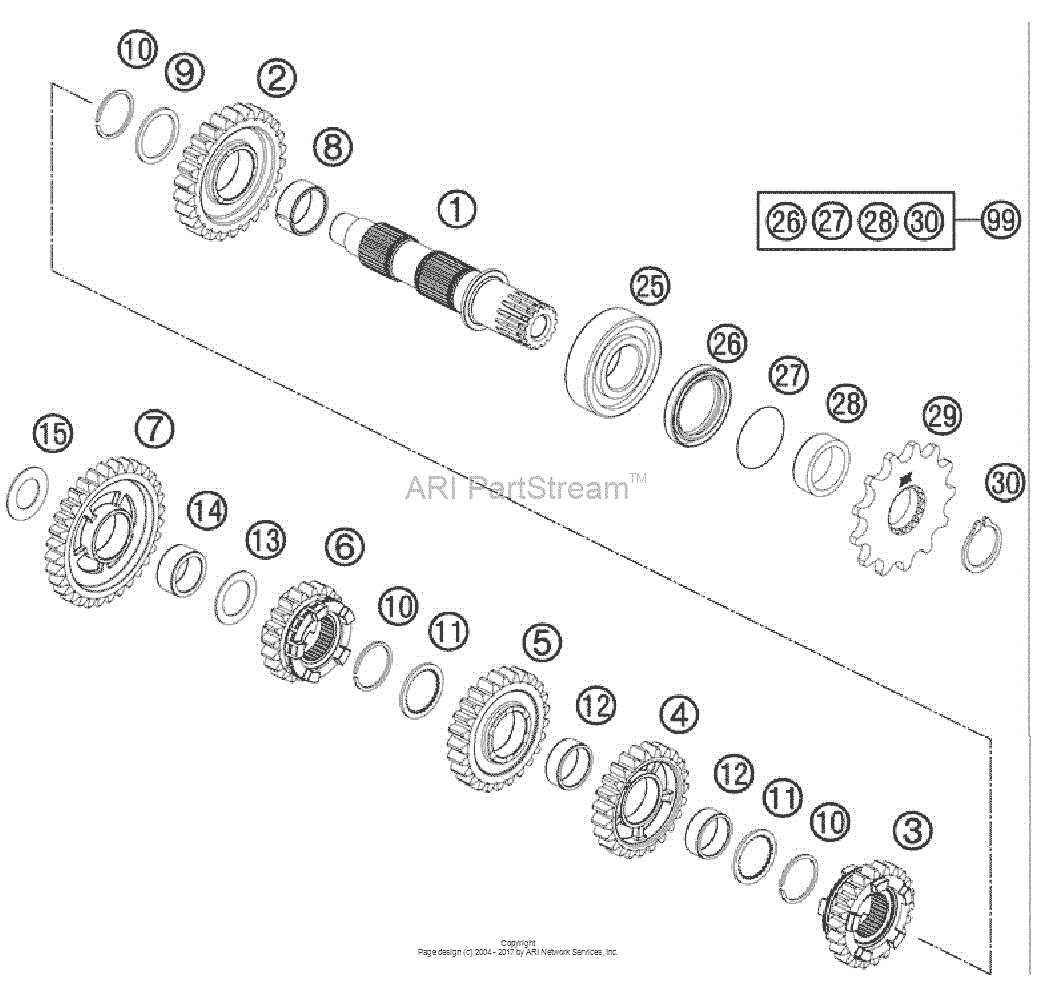

Transmission Ii - Countershaft Diagram KTM 300 300 XC
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54833210000 Counter Shaft Cpl05 |
54833210000 |
US $115.14 |
||
|
2
|
2
54833312000 Idler Gear 2. Gear, 2505 |
54833312000 |
US $82.21 |
||
|
3
|
3
54833215000 Sliding Gear 5Th Z=2205 |
54833215000 |
US $93.14 |
||
|
4
|
4
54833214000 Idler Gear 4.g, Z=2305 |
54833214000 |
US $90.95 |
||
|
5
|
5
54833213000 Idler Gear 3.g., Z= 2505 |
54833213000 |
US $91.51 |
||
|
6
|
6
54833216000 Sliding Gear 6.g., Z=2005 |
54833216000 |
US $109.14 |
||
|
7
|
7
54833311000 Idler Gear 1, Z=3105 |
54833311000 |
US $90.36 |
||
|
8
|
8
0405242812 Neddle bear. k24x28x11,9 div.05 |
0405242812 |
US $6.12 |
||
|
9
|
9
54833044000 Stop Disc 25X31X1,505 |
54833044000 |
US $3.71 |
||
|
10
|
10
0417025000 Circlip Sw2505 |
0417025000 |
US $2.84 |
||
|
11
|
11
54833043000 Stop Disc 25X0,8X30X30X7H05 |
54833043000 |
US $4.32 |
||
|
12
|
12
0405222611 Needle bear.k 22x26x10 divided05 |
0405222611 |
US $12.41 |
||
|
13
|
13
54833080000 Stop Disc 20,2X30X105 |
54833080000 |
US $2.35 |
||
|
14
|
14
0405202612 Needle bearing k 20x26x1205 |
0405202612 |
US $10.90 |
||
|
15
|
15
56033030000 Stop Disc 17,2X30X105 |
56033030000 |
US $3.83 |
||
|
25
|
25
54833025000 Ball bearing tm-sc05c20c4 ntn05 |
54833025000 |
US $70.53 |
||
|
26
|
26
0760324571 Shaft seal ring 32x45x7 bslnbr05 |
0760324571 |
US $6.61 |
||
|
27
|
27
0770250020 O-ring 25,00x2,00 nbr 7005 |
0770250020 |
US $2.26 |
||
|
28
|
28
54833032011 Spacer sleeve drive end 200305 |
54833032011 |
US $15.61 |
||
|
29
|
29
50033029013
Sprocket 13T
05 |
50033029013 |
— | ||
| replacement | |||||
|
29
|
29
79233029013 Sprocket 13T05 |
79233029013 |
US $33.08 |
||
|
29
|
29
50033029014
Front sprocket 14-t
(As required) |
50033029014 |
— | ||
| replacement | |||||
|
29
|
29
79233029014 Sprocket 14T(As required) |
79233029014 |
US $34.80 |
||
|
30
|
30
52033096000 Lock ring din0471-25x1,64sd(As required) |
52033096000 |
US $4.17 |
||
|
99
|
99
00050000940 Counter Shaft Rep.kit 2 Stroke(As required) |
00050000940 |
US $21.32 |
||
