Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 54832024044 Clutch Cage Incl. Prim. Wheel 00	54832024044	US $472.38
2	2 54832002008 Inner Clutch Hub 00	54832002008	—
	replacement
2	2 54832002100 INNER CLUTCH HUB 00	54832002100	US $113.08
3	3 78132003000 Clutch Pressure Cap 00	78132003000	US $38.95
	replacement
3	3 78132003100 Clutch Pressure Cap 00	78132003100	US $33.12
4	4 54832002111 Clutch Hub 00	54832002111	US $89.59
5	5 78132025100 Damping Rubber 00	78132025100	US $31.20 ~~US $31.20~~
6	6 78132004000 Sleeve 7,5X33.4 00	78132004000	US $2.87
7	7 78132013000 Washer 112X118X1.5 00	78132013000	US $9.08
8	8 59032010100 Intermediate disc 1mm 2002 2002	59032010100	US $8.94
9	9 59032010200 Intermediate Disc 1,4Mm 2002 2002	59032010200	US $9.96
10	10 78932010000 Intermediate Disc 1Mm 2002	78932010000	US $11.39
11	11 54832011100 Lining Disc 1,95 Mm 2002	54832011100	US $23.22
13	13 54832015100 Inner Ring 21.65X26X24.5 2002	54832015100	US $33.25
14	14 56532095000 Needle bearing k26x30x22zw.kse 2002	56532095000	US $21.51
18	18 78132018000 Tab Washer 2002	78132018000	—
	replacement
18	18 78132018100 Tab Washer 2002	78132018100	US $8.42
19	19 0936181505 Hexagon Nut Din0936-M18X1,5 R 2002	0936181505	US $7.60
20	20 54832009000 Washer 21.7 X 37 X 2.5 2002	54832009000	US $14.64
23	23 54832000026 Primary gear 26t 2003 2003	54832000026	US $79.93
25	25 0770300015 O-ring 30,00x1,50 nbr 70 2003	0770300015	US $3.26
50	50 54832006000 Spring Ring 2003	54832006000	US $37.32
53	53 54832054100 Push Rod 2003	54832054100	US $9.78
54	54 78032057000 Pressure piece 2003	78032057000	US $24.36
71	71 0025060306 Hh collar screw m6x30 tx30 TX30	0025060306	US $3.96
72	72 0025060206 Hh collar screw m6x20 tx30 TX30	0025060206	US $1.97
73	73 0025050166 Hh collar screw m5x16 tx30 TX30	0025050166	US $2.60
75	75 50329050000 Vent Injektion Hydr. Clutch TX30	50329050000	US $50.78
80	80 78132005000 Belleville Spring 71X115X1,5 I TX30	78132005000	US $32.13
81	81 54832066000 Piston cpl. TX30	54832066000	US $63.02
82	82 54832061044 Output cylinder cpl. 06 06	54832061044	US $109
85	85 54832067000 O-ring 06	54832067000	US $2.69
86	86 54832069000 Pressure spring 06	54832069000	US $12.09
87	87 0603100141 Copper Gasket Din7603-10X14X1 06	0603100141	US $2.24
88	88 62513020000 Bleeder Screw Cpl. 05 05	62513020000	US $30.16
89	89 54832063000 Clutch pipe 06 05	54832063000	US $87.04
95	95 54832011110 Clutch Kit 250/300 13-15 As Required	54832011110	US $216.90
96	96 78032057044 Pressure piece cpl. 08 08	78032057044	US $22.34
97	97 54637097200 Axial Needle Bearing Axk 1226 08	54637097200	US $10.06
98	98 54637098200 Axial washer as1226 12x26x1 08	54637098200	US $5.02
99	99 0993012000 Circlip Din7993-Rw12 08	0993012000	US $2.11

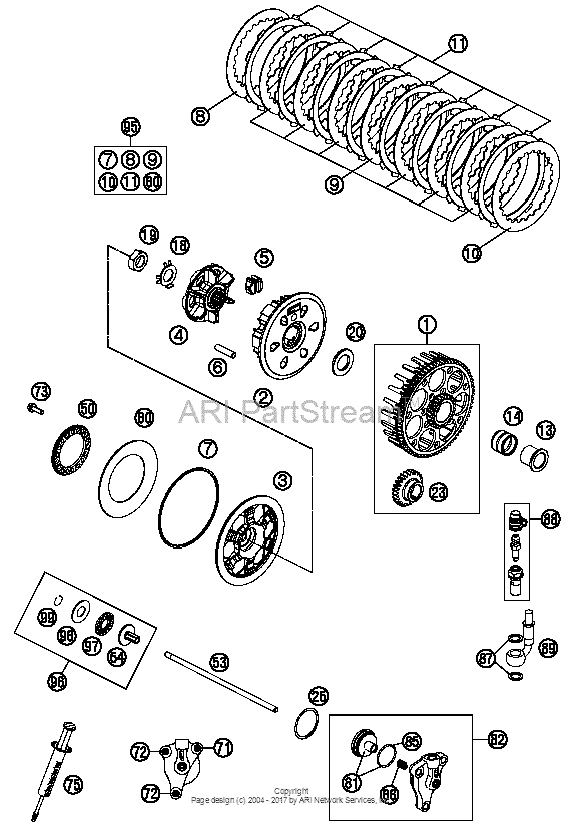

Clutch Diagram KTM 300 300 XC US/EU 18087441-939763

Clutch Diagram KTM 300 300 XC US/EU 18087441-939763
