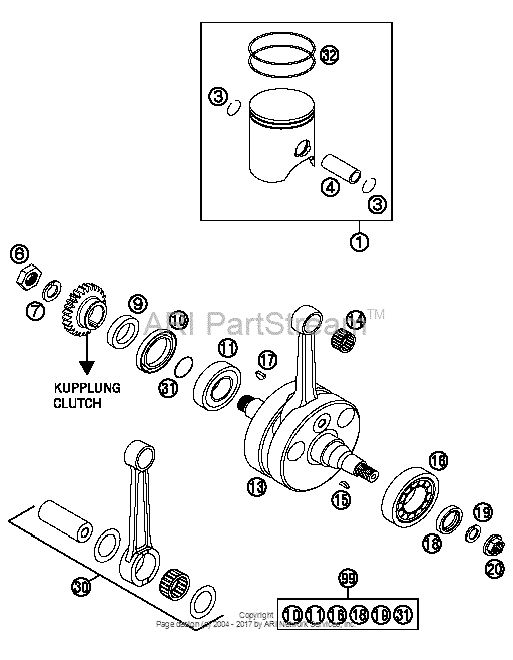

Crankshaft, Piston Diagram KTM 300 300 XC
- Year
- 2014
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54830107200I Piston cpl. gr 1 d=71.925As Required |
54830107200I |
US $295.89 |
||
| replacement | |||||
|
1
|
1
55630107000I Piston Cpl. Size 1 D=71,925As Required |
55630107000I |
US $295.89 |
||
|
1
|
1
54830107200II
Piston cpl. gr 2 d=71.935
As Required |
54830107200II |
— | ||
| replacements | |||||
|
1
|
1
55630107000II Piston Cpl. Size 2 D=71,935As Required |
55630107000II |
US $304.96 |
||
|
1
|
1
55630307100II Piston II cmpl.As Required |
55630307100II |
US $352.21 |
||
|
3
|
3
54030074000 Wire lock ring c18x1,5As Required |
54030074000 |
US $1.97 |
||
|
4
|
4
54830233000 Piston PinAs Required |
54830233000 |
US $38.39 |
||
|
6
|
6
54630029000 Hex.nut l/sh m18x1,5As Required |
54630029000 |
US $9.13 |
||
|
7
|
7
58132072000 Lock washer vsk 18As Required |
58132072000 |
US $1.09 |
||
|
9
|
9
54830016000 Spacer sleeve 28x38x10 0303 |
54830016000 |
US $15.03 |
||
|
10
|
10
0760385273 Shaft seal ring 38x52x7btsl03 |
0760385273 |
US $19.77 |
||
|
11
|
11
0625623204 Ball bearing 32x65x17 ntn03 |
0625623204 |
US $56.02 |
||
|
13
|
13
54830118200 Crankshaft 250/300 exc-mxc 0808 |
54830118200 |
US $670 |
||
| replacement | |||||
|
13
|
13
54830118300 Crankshaft Cpl. 250 Exc08 |
54830118300 |
US $617.34 |
||
|
14
|
14
54430034000 Needle bearing kbk 18x22x2008 |
54430034000 |
US $22.98 |
||
|
15
|
15
0888030050 Woodruff Key Din6888-3X5X1308 |
0888030050 |
US $2.60 |
||
|
16
|
16
56530123200 Cylind.rol.bear. nj207et2xcs4208 |
56530123200 |
US $114.95 |
||
|
17
|
17
6946005 Woodruff Key 5X6,5 Harded08 |
6946005 |
US $0.92 |
||
|
18
|
18
0760253570 Shaft seal ring 25x35x7 btsl08 |
0760253570 |
US $18.89 |
||
|
19
|
19
50230029012 Locking ring vsk 1208 |
50230029012 |
US $2.19 |
||
|
20
|
20
49030021000 Collar nut m12x1 r/s08 |
49030021000 |
US $10.57 |
||
|
30
|
30
54830015144
Conrod rep. kit 250/300
08 |
54830015144 |
— | ||
| replacement | |||||
|
30
|
30
54830015244 Con.rod Rep.set 250/30008 |
54830015244 |
US $360.91 |
||
|
31
|
31
0770250015 O-ring 25,00x1,50 nbr 7008 |
0770250015 |
US $0.24 |
||
|
32
|
32
54830132000 R-ring 72,0mm 300 20042004 |
54830132000 |
US $43.84 |
||
|
99
|
99
00050002301 Crankshaf Rep. Kit 250-300As Required |
00050002301 |
US $167.31 |
||
