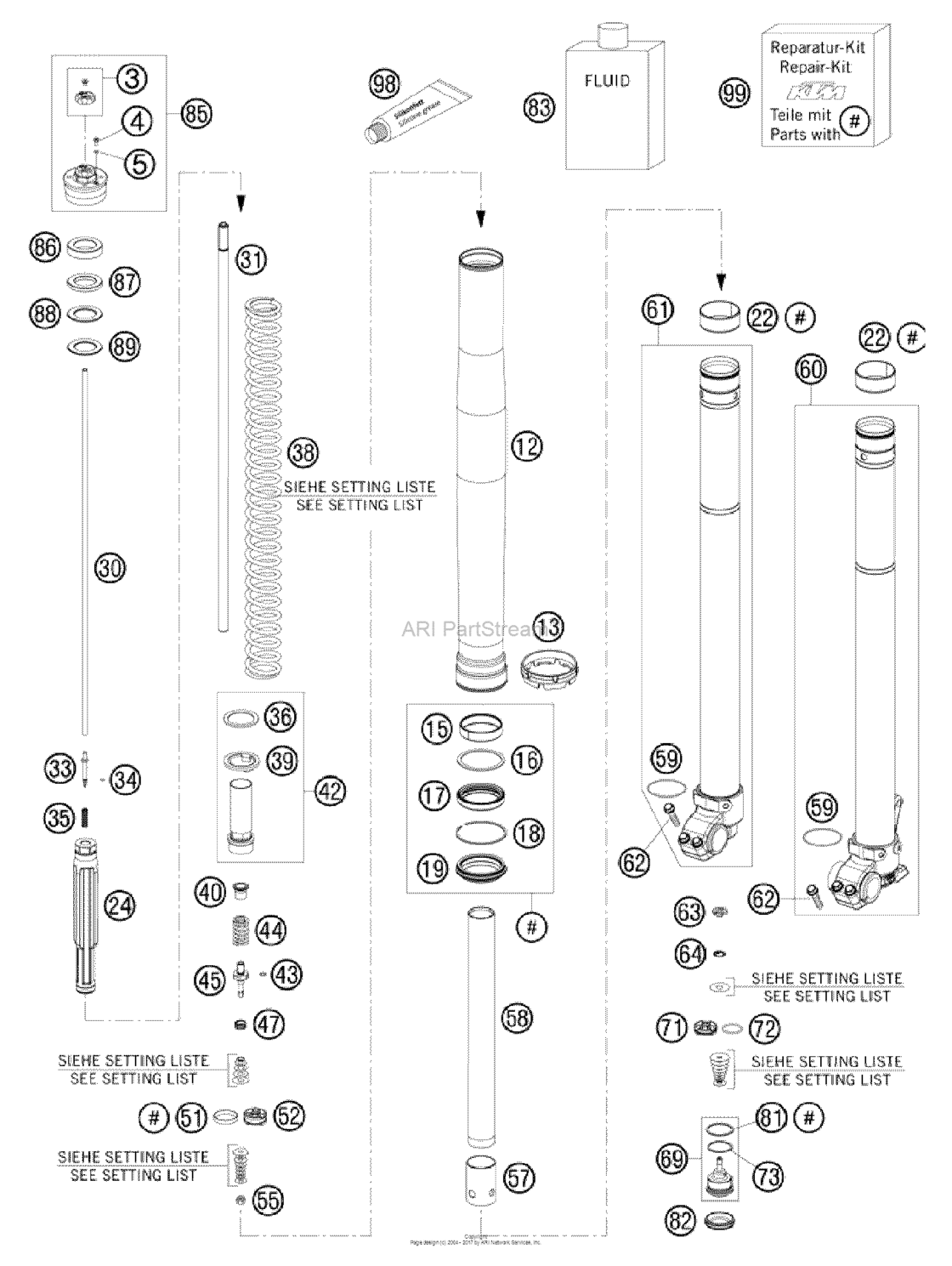

Front Fork Disasembled Diagram KTM 300 300 XC-W
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
48600736 Outer tube l577 d54/60mm 2l07 |
48600736 |
US $435.66 |
||
|
3
|
3
4860082S
Adjusting Knob + Screw
07 |
4860082S |
— | ||
|
3
|
3
48600698 Fork protection ring 0808 |
48600698 |
US $9.57 |
||
|
3
|
3
48600568 Piston rod d=12 l=554 alu07 |
48600568 |
US $133.09 |
||
|
4
|
4
4860048
Vent Screw M4X8
07 |
4860048 |
— | ||
|
5
|
5
48600009 O-ring nbr 3,7x1,607 |
48600009 |
US $0.90 |
||
|
5
|
5
48600429 Du-bush d48xd52x12ddl0208 |
48600429 |
US $36.48 |
||
| replacement | |||||
|
5
|
5
48601009 Guiding Bush 48X52X12 R1108 |
48601009 |
US $13.23 |
||
|
5
|
5
48600455 Piston ring 5x1x68(As required) |
48600455 |
US $13.80 |
||
|
6
|
6
4860003
Support Ring 50 X 5 7,6 X 1,5
08 |
4860003 |
— | ||
|
7
|
7
48600347
Oil Seal Ring 48X57,8X9,5
03 |
48600347 |
— | ||
| replacement | |||||
|
7
|
7
48601414 OIL SEAL RING 48X57,9X11,403 |
48601414 |
US $26.38 |
||
|
8
|
8
48600070 Lock washer sb5803 |
48600070 |
US $2.35 |
||
|
9
|
9
48600400
Dust Seal
03 |
48600400 |
— | ||
| replacement | |||||
|
9
|
9
48600816 Dust seal03 |
48600816 |
US $27.03 |
||
|
22
|
22
4800428
Du-Bush D47Xd49X20Ddl02
03 |
4800428 |
— | ||
|
24
|
24
48600557S Hydr.stop l=200 d=31,9 cpl. 0703 |
48600557S |
US $43.79 |
||
|
30
|
30
48600559 Adjusting tube l=520 0707 |
48600559 |
US $40 |
||
|
33
|
33
48600277 Adjuster needle 0707 |
48600277 |
US $9.33 |
||
|
34
|
34
48600298 O-ring 2x1,5 nbr07 |
48600298 |
US $4.28 |
||
|
35
|
35
48600444 Rebound spring c=4n/mm07 |
48600444 |
US $3.52 |
||
|
36
|
36
486003
Washer 32X42X2,5
07 |
486003 |
— | ||
|
38
|
38
94002S
Spring 3,8N/mm Set D=4,9Mm
(As required) |
94002S |
— | ||
|
38
|
38
94003S
Spring 4,0N/mm Set D=5,0Mm
(As required) |
94003S |
— | ||
|
38
|
38
94004S
Spring 4,2N/mm Set D=5,0Mm
(As required) |
94004S |
— | ||
|
38
|
38
94005S
Spring 4,4N/mm Set D=5,1Mm
(As required) |
94005S |
— | ||
|
38
|
38
94006S
Spring 4,6N/mm Set
(As required) |
94006S |
— | ||
|
38
|
38
94007S
Spring 4,8N/mm Set
(As required) |
94007S |
— | ||
|
39
|
39
4860002
Interm. Ring 26,2 X 43 X 3
(As required) |
4860002 |
— | ||
|
40
|
40
48600525 Guiding bush rebound spring(As required) |
48600525 |
US $24.72 |
||
|
42
|
42
48600762S Screw sleeve m27x,08 l=100 kpl(As required) |
48600762S |
US $28.78 |
||
|
43
|
43
48600299 O-ring 6x1,2 nbr(As required) |
48600299 |
US $3.52 |
||
|
44
|
44
486005
Rebound Spring L=32 C=17
(As required) |
486005 |
— | ||
|
45
|
45
48600576 Piston rod rebound(As required) |
48600576 |
US $14.28 |
||
|
47
|
47
48600382 Shuttle valve spring c=0,4(As required) |
48600382 |
US $2.67 |
||
|
52
|
52
48600575 Piston rebound sx 20072007 |
48600575 |
US $26.96 |
||
|
55
|
55
40540486 Nut m6x0,5 rebound2007 |
40540486 |
US $5.20 |
||
|
57
|
57
48600764 Adapter sleeve d23/d282007 |
48600764 |
US $17.12 |
||
|
58
|
58
48600763 Pipe d23/l350 0909 |
48600763 |
US $64.41 |
||
|
59
|
59
48600048 O-ring nbr 46 x 209 |
48600048 |
US $1.94 |
||
|
60
|
60
48600237S3 Axle clamp l/s + tube cpl. 0909 |
48600237S3 |
US $596.82 |
||
| replacement | |||||
|
60
|
60
48600860SA2 Axle Clamp L/s + Tube Cpl09 |
48600860SA2 |
US $426.75 |
||
|
61
|
61
48600238S4
Axle Clamp R/s + Tube Cpl
09 |
48600238S4 |
— | ||
| replacement | |||||
|
61
|
61
48600861S1 Axle clamp r/s + tube cpl. 0909 |
48600861S1 |
US $662.51 |
||
|
62
|
62
0025080256 Hh Collar Screw M8X25 Tx40TX40 |
0025080256 |
US $4.10 |
||
|
63
|
63
48600163 Check valve nut m6x0,5 d=2TX40 |
48600163 |
US $13.80 |
||
|
64
|
64
48600202 Spring check valve d=0,7TX40 |
48600202 |
US $2.28 |
||
|
69
|
69
48600586S
Tap compression cpl. 07
07 |
48600586S |
— | ||
| replacement | |||||
|
69
|
69
48600586E Tap Compression Cpl07 |
48600586E |
US $96.46 |
||
|
71
|
71
48600047 Piston compression d=27,907 |
48600047 |
US $49.96 |
||
|
72
|
72
46811499 O-ring nbr 21x207 |
46811499 |
US $1.48 |
||
|
73
|
73
35480320 O-ring nbr 24x207 |
35480320 |
US $2.70 |
||
|
81
|
81
48600004 Copper washer 29,5x33,5x107 |
48600004 |
US $1.65 |
||
|
82
|
82
48600141 Rubber cap d=35mm07 |
48600141 |
US $3.42 |
||
|
83
|
83
48600401S1 Fork Oil Sae4 5L2005 |
48600401S1 |
US $273.85 |
||
| replacement | |||||
|
83
|
83
48601166S1 Fork Oil Sae4 5L2005 |
48601166S1 |
US $218.08 |
||
|
85
|
85
48600431S2
Pre-load adj. m51x1,5 09
09 |
48600431S2 |
— | ||
| replacement | |||||
|
85
|
85
48600431E2
PRE-LOAD ADJ. CPL.
09 |
48600431E2 |
— | ||
|
86
|
86
48600038 Spacer 42x26,5x1009 |
48600038 |
US $8.04 |
||
|
87
|
87
48600037 Spacer 42x26,5x509 |
48600037 |
US $6.41 |
||
|
88
|
88
48600036 Spacer 42x26,5x2,509 |
48600036 |
US $6.48 |
||
|
89
|
89
48600053 Spacer 42X26,5X1,509 |
48600053 |
US $7.09 |
||
|
98
|
98
T511 Silicone grease f. dust stri09 |
T511 |
US $132.91 |
||
|
99
|
99
R14016 Repair-kit exc front fork 20092009 |
R14016 |
US $159.39 |
||
