	Description	OEM Part #	Price
1	1 0019050106S Int. Torx Flat Head M5X10 10.9 TX30	0019050106S	US $0.27
2	2 54837362000 Retaining plate 300 r/s 08 TX30	54837362000	US $16.08
3	3 54837363000 Retaining plate 300 l/s 08 TX30	54837363000	US $16.08
4	4 0770160021 O-ring 16,00x2,00 viton TX30	0770160021	US $1.87
5	5 55437161044 Control Roller 300 Left Cpl TX30	55437161044	US $37.09
6	6 55437162044 Control Roller 300 Right Cpl TX30	55437162044	US $37.09
10	10 0912060203 Ah Screw Din0912-M 6X20 TX30	0912060203	US $1.04
11	11 54637067000 Spring sleeve TX30	54637067000	US $4.49
12	12 54637066000 Overload spring TX30	54637066000	US $5.20
13	13 54637085300 Retain.plate control flap '92 '92	54637085300	US $4.42
14	14 54637065000 Control lever with ball type '92	54637065000	US $21.32
15	15 54637068100 Bushing sleeve '92	54637068100	US $8.57
16	16 54837364044 Gear segment right cpl. 08 '92	54837364044	US $44.13
17	17 54837364050 Gear segment 300 l/s 08 '92	54837364050	US $28.14
18	18 50437023000 Bearing Sleeve F. Control Flap '92	50437023000	US $6.58
19	19 0770150151 O-ring 15,00x1,50 viton '92	0770150151	US $2.60
20	20 55637120000 Control Flap 300 '92	55637120000	US $83.73
21	21 0912060163 Ah Screw Din0912-M 6X16 '92	0912060163	US $1.29
22	22 54637056100 Washer 6,5x11x2 '92	54637056100	US $0.31
23	23 0912060083 Ah screw din0912-m 6x 8 '92	0912060083	US $0.85
25	25 0014050123 Hh collar screw m 5x12 ws=6 '92	0014050123	US $2.19
26	26 0349000050 Washer din7349-5x15x2 '92	0349000050	US $0.65
27	27 55437058000 Bearing Support '92	55437058000	US $15.67
28	28 0025050256 Hh collar screw m5x25 isa30 '92	0025050256	US $0.66
29	29 0137060003 Spring Washer Din0137-B 6 '92	0137060003	US $0.43
31	31 55437050044 Centrifugal Force Regulator '92	55437050044	US $150.33
36	36 54637098100 Ball bearing 626llbc3/5k '92	54637098100	US $12.56
40	40 0014050203 Hh collar screw m 5x20 ws=6 '92	0014050203	US $2.79
41	41 54637070100 Cover lid 250-380'98 '98	54637070100	US $17.03
43	43 54837075000 Spring guide 250/300 '98	54837075000	US $12.99
44	44 0770021120 O-ring 12,37x2,62 nbr70 '98	0770021120	US $2.43
45	45 0770240020 O-ring 24,00x2,00 nbr70 '98	0770240020	US $1.45
46	46 54837069000 Adjust. spring 2003 2003	54837069000	US $1.97
47	47 54837072000 Auxiliary spring soft, red As Required	54837072000	US $1.43
47	47 54637072300 Auxiliary spring mid., yellow As Required	54637072300	US $1.55
47	47 54837072100 Auxiliary spring hard, green As Required	54837072100	US $2.60
48	48 54637071200 Spring insert As Required	54637071200	US $9.13
50	50 54637055244 Angle lever cpl. '91 '91	54637055244	US $35.33
51	51 0988101610 Shim washer din988 10x16x1 '91	0988101610	US $1.51
52	52 0618101410 Needle sleeve hk 1010 10/14/10 '91	0618101410	US $5.92
53	53 55437057100 Adjusting Lever 250/300 '91	55437057100	US $41.85
60	60 55437095044 Connecting Rod Cpl '91	55437095044	US $19.28
61	61 50237195055 Securing din-71805-s-8 '91	50237195055	US $1.51

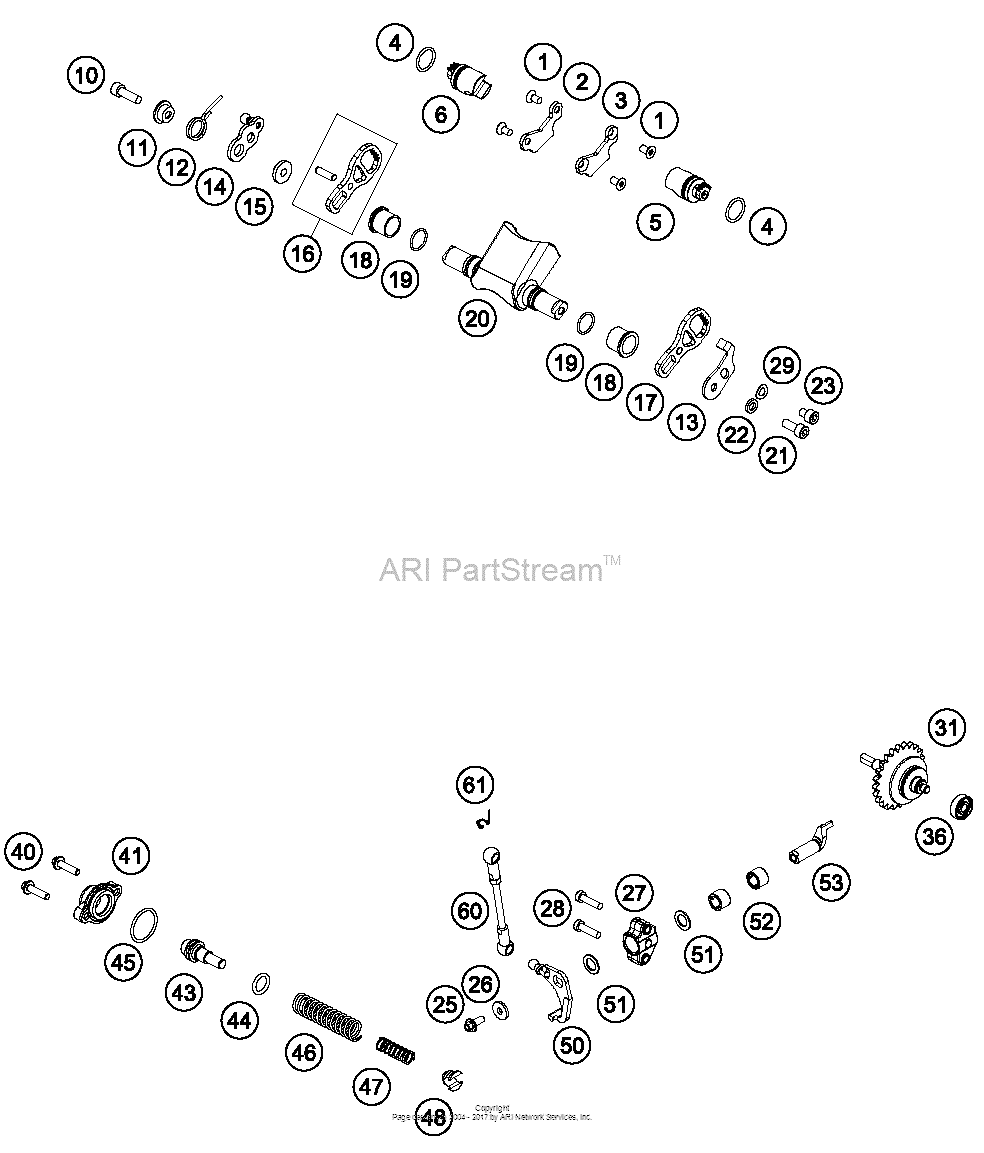

Exhaust Control Diagram KTM 300 300 XC-W US/EU 18087663-939773

Exhaust Control Diagram KTM 300 300 XC-W US/EU 18087663-939773
