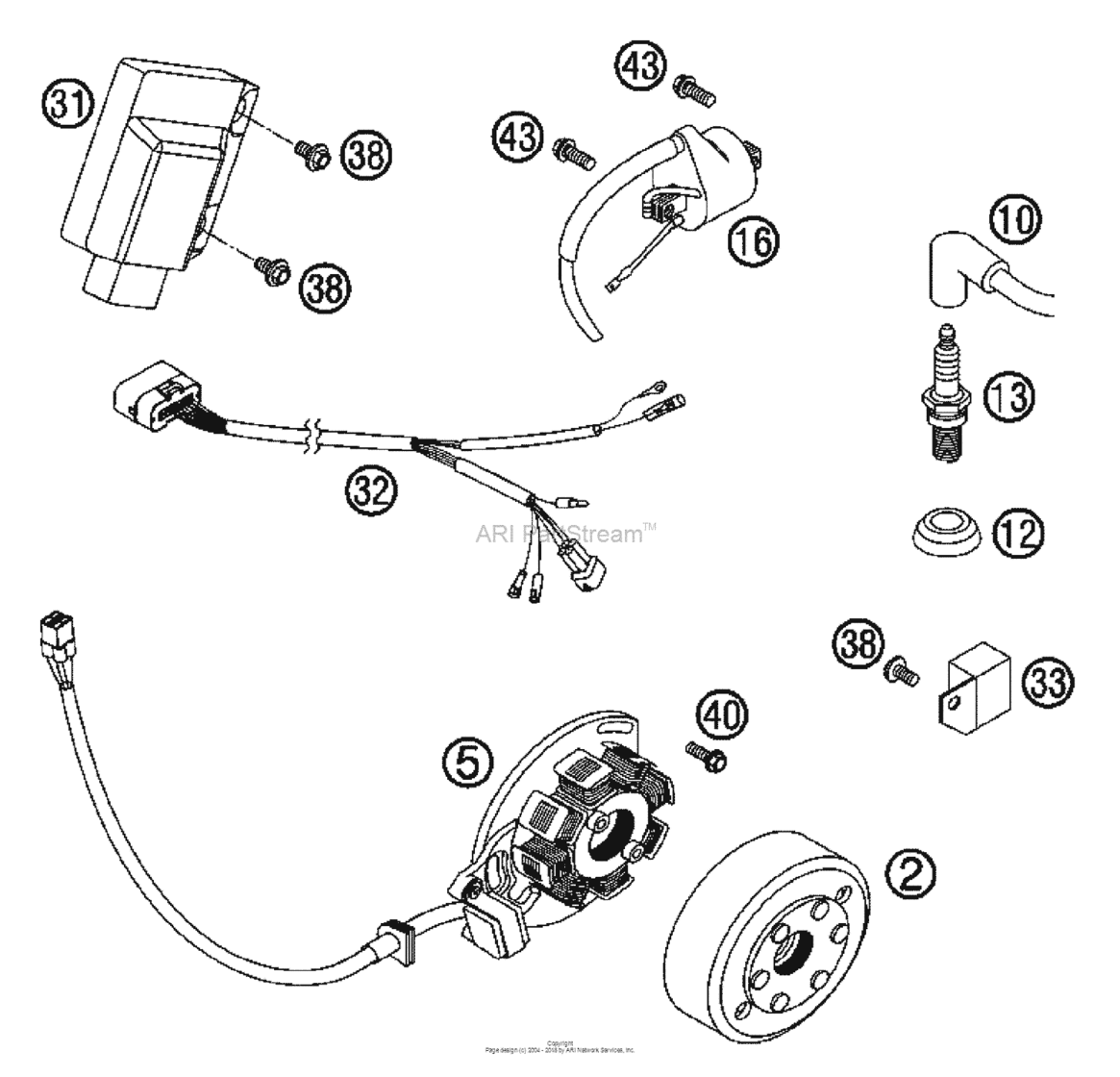

Ignition System Diagram KTM 300 300 XC-W
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
50339005200 Flywheel kokusan 2k-3 '98TX30 |
50339005200 |
US $273.94 |
||
|
5
|
5
54839204000 Stator kokusan 2k-3 2005TX30 |
54839204000 |
US $217.01 |
||
|
10
|
10
47039090000 Spark plug cap ngk reinforc.04TX30 |
47039090000 |
US $24.26 |
||
|
12
|
12
50231012000 Sealing cup for spark plugTX30 |
50231012000 |
US $3.91 |
||
|
13
|
13
54739093000 Spark plug ngk br7esTX30 |
54739093000 |
US $4.15 |
||
|
16
|
16
50339006000 Ignitioncoil Ig5128TX30 |
50339006000 |
US $77.81 |
||
| replacement | |||||
|
16
|
16
59039006000 Ignitioncoil "ig5128"TX30 |
59039006000 |
US $132.38 |
||
|
31
|
31
54839331200 Cdi unit 300 exc/xc 07TX30 |
54839331200 |
US $290.28 |
||
|
32
|
32
54839032200 Wiring harness for cdi 2-st.07TX30 |
54839032200 |
US $68.10 |
||
|
33
|
33
54711034000 Voltage regulator koku.exc usaTX30 |
54711034000 |
US $96.37 |
||
|
38
|
38
0014060103
Hh Collar Screw M6X10 Tx30
TX30 |
0014060103 |
— | ||
| replacement | |||||
|
38
|
38
0024060106 Hh collar screw m6x10 tx30TX30 |
0024060106 |
US $4.35 |
||
|
40
|
40
0015050163 Hh Collar Screw M 5X16 Ws=8TX30 |
0015050163 |
US $1.31 |
||
|
43
|
43
0015060163 Hh Collar Screw M 6X16 Ws=8TX30 |
0015060163 |
US $2.23 |
||
