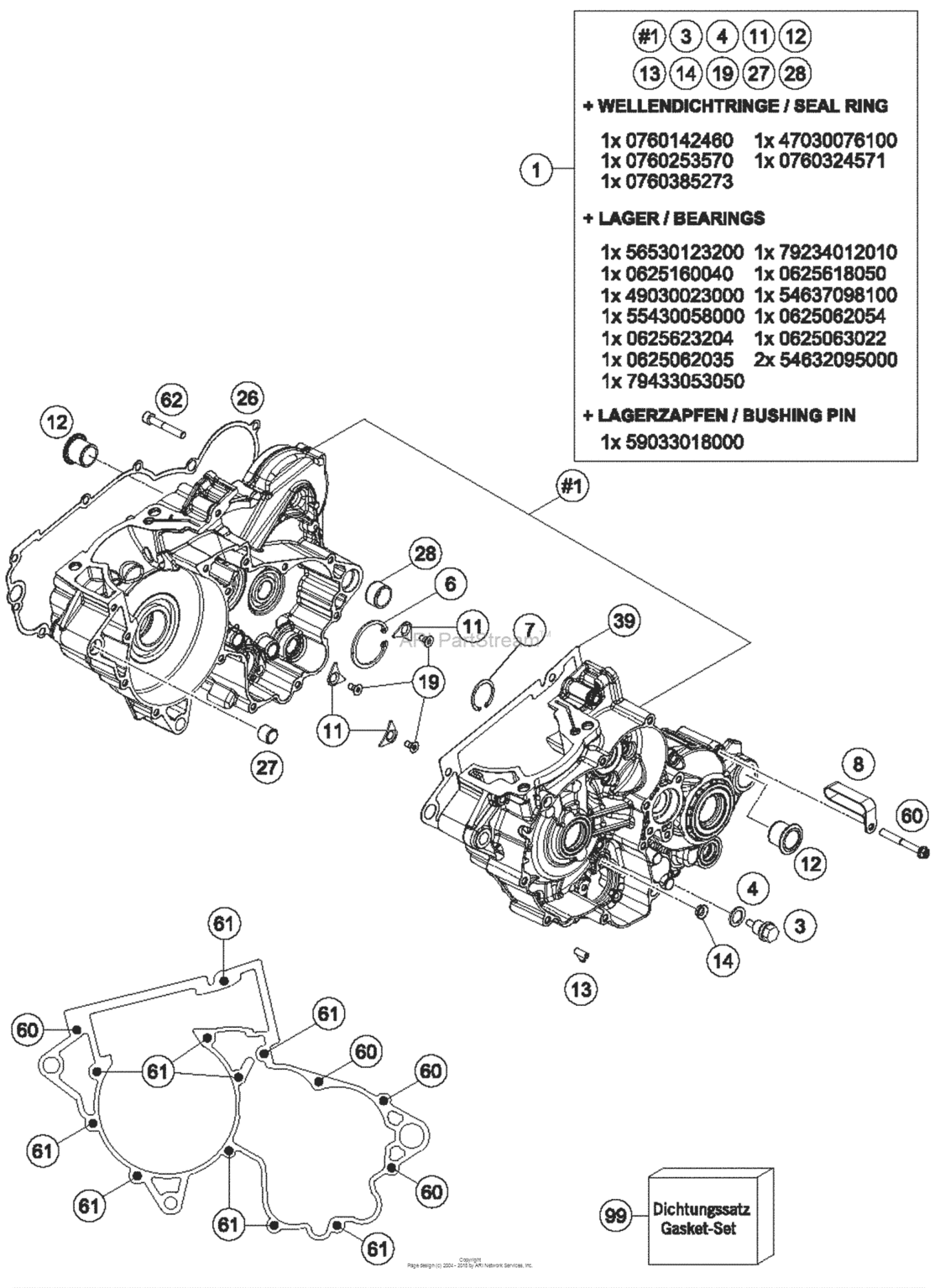

Engine Case Diagram KTM 300 300 XC-W Six Days
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 XC-W Six Days
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
55430200133 Enigne Case CplAs Required |
55430200133 |
US $872.41 |
||
3
|
3
58030021000
Oildrain Plug With Magnet
As Required |
58030021000 |
— | ||
replacement | |||||
3
|
3
58030021100 Oildrain Plug With MagnetAs Required |
58030021100 |
US $12.02 |
||
4
|
4
58038022000 Cu-Seal Ring Din7603-12X18X1,5As Required |
58038022000 |
US $1.97 |
||
6
|
6
0472042175 Circlip din0472-42x1,75As Required |
0472042175 |
US $1.89 |
||
7
|
7
55430059100 Circlip Din0472-28X1,2As Required |
55430059100 |
US $0.48 |
||
8
|
8
55430090000 Bracket For Bleeding TubeAs Required |
55430090000 |
US $7.46 |
||
11
|
11
75030085000 Retaining plate f. cs bearingAs Required |
75030085000 |
US $4.08 |
||
12
|
12
75030010100 Case BushAs Required |
75030010100 |
US $9.93 |
||
13
|
13
45130022000 Angle piece 50ccm lc 20012001 |
45130022000 |
US $5.80 |
||
14
|
14
55140030100 Collar bushing2001 |
55140030100 |
US $2.87 |
||
19
|
19
0019050106S Int. Torx Flat Head M5X10 10.92001 |
0019050106S |
US $0.27 |
||
26
|
26
55430025100 Clutch Cover Gasket Inside2001 |
55430025100 |
US $20.79 |
||
27
|
27
54630027000 Dowel bushing 13,8x11x122001 |
54630027000 |
US $5.73 |
||
28
|
28
54830027000 Dowel 21x12 032001 |
54830027000 |
US $4.71 |
||
39
|
39
55430039000 Engine Case Gasket2001 |
55430039000 |
US $36.18 |
||
60
|
60
0025060606 Hh collar screw m6x60 tx30TX30 |
0025060606 |
US $1.73 |
||
61
|
61
0025060456 Hh collar screw m6x45 tx30TX30 |
0025060456 |
US $1.89 |
||
62
|
62
0912060406 Ah screw din0912 m 6x40TX30 |
0912060406 |
US $0.65 |
||
99
|
99
55430199000 Gasket Set 250 Exc/sx 17As Required |
55430199000 |
US $322.92 |
