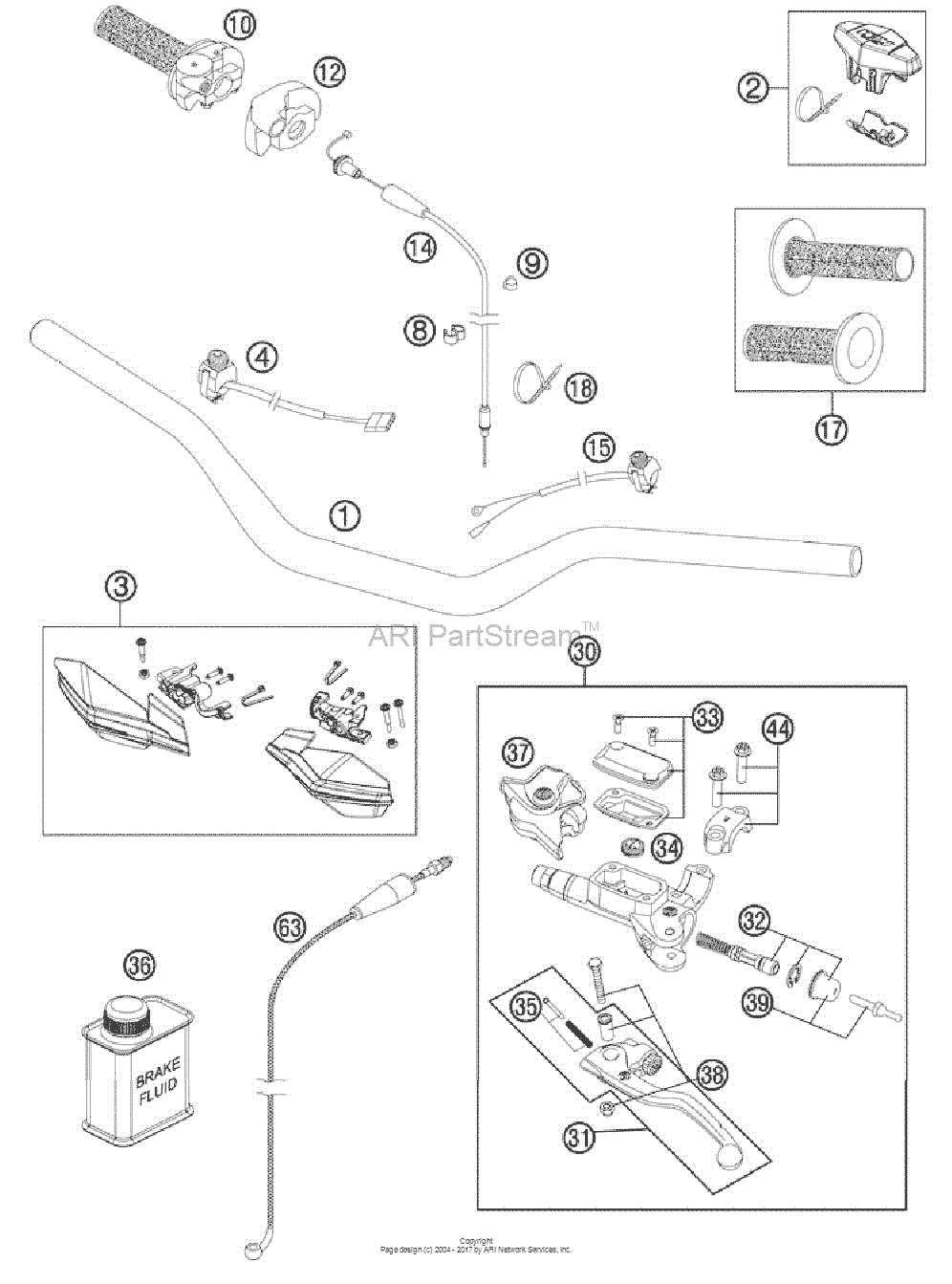

Handlebar, Controls Diagram KTM 300 300 XC-W
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7800200100017 Handlebar d=28mmD=28MM |
7800200100017 |
US $183.19 |
||
|
2
|
2
77202002144 Bar Pad CplD=28MM |
77202002144 |
US $26.96 |
||
|
3
|
3
7810207900004
Hand Guard Cpl. Orange
D=28MM |
7810207900004 |
— | ||
|
4
|
4
59411074000 Starter control 0404 |
59411074000 |
US $39.17 |
||
| replacement | |||||
|
4
|
4
78111074000 Starter Button Grey 1304 |
78111074000 |
US $58.31 |
||
|
8
|
8
60111094000 Clamp 5/7 mm 0606 |
60111094000 |
US $3.54 |
||
|
9
|
9
57013072100 Wiring holder 16mm16MM |
57013072100 |
US $0.53 |
||
|
10
|
10
54802010100 Throttle grip cpl. 0909 |
54802010100 |
US $95.44 |
||
| replacement | |||||
|
10
|
10
51502010200 Throttle Grip Cpl. 2St. 1309 |
51502010200 |
US $67.97 |
||
|
12
|
12
50302020000 Protection Cover '97'97 |
50302020000 |
US $16.75 |
||
|
14
|
14
51502091000
Throttle Cable 2-St. 2014
'97 |
51502091000 |
— | ||
| replacement | |||||
|
14
|
14
51502091200 Throttle Cable 2-St. 2014'97 |
51502091200 |
US $39.20 |
||
|
15
|
15
50311089200 Short Circuit Button 0202 |
50311089200 |
US $50.97 |
||
|
17
|
17
54802021200 Grip-set gray/orange 0909 Not Available |
54802021200 |
US $28.29 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm black09 Not Available |
44011076200 |
US $0.39 |
||
|
30
|
30
54802030044
Master cylinder cpl. 06
06 |
54802030044 |
— | ||
| replacement | |||||
|
30
|
30
54802030144 Master Cylinder Cpl06 |
54802030144 |
US $214.10 |
||
|
31
|
31
54802031000 Clutch lever cpl. brembo 0606 |
54802031000 |
US $45.82 |
||
|
32
|
32
54802032000 Rep. kit piston 0606 |
54802032000 |
US $43.21 |
||
|
33
|
33
54802003000 Cover hyd. clutch cpl.06 |
54802003000 |
US $30.28 |
||
|
34
|
34
54802051000 Valve06 |
54802051000 |
US $16.88 |
||
|
35
|
35
54802052000 Bolt kpl.06 |
54802052000 |
US $26.49 |
||
|
36
|
36
00062030000 Brake fluid dot5.1 0,25l0,25L |
00062030000 |
US $14.35 |
||
|
37
|
37
54802037000 Protection cap 0606 |
54802037000 |
US $18.77 |
||
|
38
|
38
54802038100 Lever screw cpl. 0606 |
54802038100 |
US $36.02 |
||
|
39
|
39
54802046000 Push rod cpl.06 |
54802046000 |
US $20.01 |
||
|
44
|
44
54802005100 Clamp cpl. 0606 |
54802005100 |
US $23.49 |
||
|
63
|
63
54832063000 Clutch pipe 0606 |
54832063000 |
US $87.04 |
||
