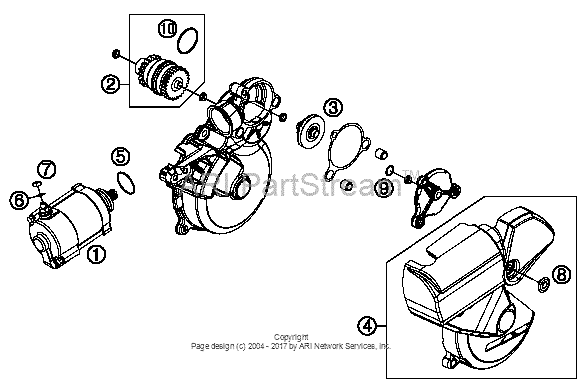

Electric Starter Diagram KTM 300 300 XC-W
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55140001100 Starter Moric08-12 |
55140001100 |
US $409.96 |
||
|
2
|
2
55140026300 Bendix 16/28 Not Available08-12 |
55140026300 |
US $155.36 |
||
| replacement | |||||
|
2
|
2
55140026400 Bendix 16/2808-12 |
55140026400 |
US $155.36 |
||
|
3
|
3
55140022300 Crown Wheel08-12 |
55140022300 |
US $65.89 |
||
|
4
|
4
55140040144 Starter drive cover cpl.08-12 |
55140040144 |
US $38.62 |
||
|
5
|
5
0770250030 O-ring 25,00x3,00 nbr 7008-12 |
0770250030 |
US $4.35 |
||
|
6
|
6
0125060003 Washer Din0125-A 6,408-12 |
0125060003 |
US $0.37 |
||
|
7
|
7
0985060003 Self Lock. Nut Din0985-M 608-12 |
0985060003 |
US $2.60 |
||
|
8
|
8
50308052000 Bush 6X11X16X5 Mm08-12 |
50308052000 |
US $3.49 |
||
| replacement | |||||
|
8
|
8
79608052000 Bush 6X11X16X5 Mm08-12 |
79608052000 |
US $1.31 |
||
|
9
|
9
0988081401 Thrust Washer 8X14X0,1As Required |
0988081401 |
US $0.66 |
||
|
9
|
9
0988081402 Thrust Washer 8X14X0,2As Required |
0988081402 |
US $0.65 |
||
|
9
|
9
0988081403 Thrust Washer 8X14X0,3As Required |
0988081403 |
US $0.65 |
||
|
9
|
9
0988081405 Thrust Washer 8X14X0,5As Required |
0988081405 |
US $0.65 |
||
|
10
|
10
55140027000 BendixspringAs Required |
55140027000 |
US $9.28 |
||
