Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 54831301244 Carburetor Pwk36S Ag Bz7 15 Only For Us+Br As Required	54831301244	US $527.03
1	1 54831201844 Carbur. Keihin Pwk 36S Ag 12 Only For Eu As Required	54831201844	—
1	1 54831101944 Carburetor Keihin Pwk36S Ag 08 As Required	54831101944	—
7	7 54831007138 Idle jet size 38x38 keihin As Required	54831007138	US $16.68
7	7 54531607035 Idle jet 35 keihin As Required	54531607035	US $13.86
7	7 54531607038 Idle jet 38 keihin As Required	54531607038	US $12.22
7	7 54531607040 Idle jet 40 keihin As Required	54531607040	US $11.83
7	7 54531607042 Idle jet 42 keihin As Required	54531607042	US $12.16
7	7 54531607045 Idle jet 45 keihin As Required	54531607045	US $11.95
7	7 54531607048 Idle jet 48 keihin As Required	54531607048	US $11.63
7	7 54531607050 Idle jet 50 keihin As Required	54531607050	US $11.48
8	8 57331008000 Arm pin float As Required	57331008000	US $1.63
9	9 57331009000 Float cpl. As Required	57331009000	US $60.62
10	10 54831010000 Gasket float chamber As Required	54831010000	US $9.45
11	11 54831011000 Float chamber pwk38-s ag As Required	54831011000	US $77.95
12	12 54531612100 Retaining plate for bleeder As Required	54531612100	US $2.09
13	13 54831051050 Starter jet 50 keihin As Required	54831051050	US $11.63
13	13 54831051085 Starter jet 85 keihin As Required	54831051085	US $11.85
14	14 0016040163 Hh collar screw m 4x16 ws=6 As Required	0016040163	US $0.66
	replacement
14	14 0016040133 Hh collar screw m 4x13 ws=6 As Required	0016040133	US $0.53
15	15 54531615000 Spring for adjustment screw As Required	54531615000	US $2.75
17	17 54831017000 Stop Screw Cpl As Required	54831017000	US $7.60
18	18 54631118000 Spring As Required	54631118000	US $9.66
19	19 54631219100 Adjustment screw m 5 As Required	54631219100	US $15.33
20	20 54631220000 Float needle As Required	54631220000	US $33.66
21	21 54531621000 Clamp As Required	54531621000	US $3.18
23	23 54531623115 Main jet 115 keihin As Required	54531623115	US $12.24
23	23 54531623150 Main jet 150 keihin As Required	54531623150	US $11.83
23	23 54531623152 Main jet 152 keihin As Required	54531623152	US $11.83
23	23 54531623155 Main jet 155 keihin As Required	54531623155	US $12.02
23	23 54531623158 Main jet 158 keihin As Required	54531623158	US $12.24
23	23 54531623160 Main jet 160 keihin As Required	54531623160	US $13.16
23	23 54531623162 Main jet 162 keihin As Required	54531623162	US $12.67
23	23 54531623165 Main jet 165 keihin As Required	54531623165	US $12.92
23	23 54531623168 Main jet 168 keihin As Required	54531623168	US $13.07
23	23 54531623170 Main jet 170 keihin As Required	54531623170	US $12.75
23	23 54531623172 Main Jet 172 Keihin As Required	54531623172	US $12.84
23	23 54531623175 Main Jet 175 Keihin As Required	54531623175	US $12.84
25	25 54831025000 Special-ah-screw m 4x12 As Required	54831025000	US $2.99
27	27 54831127000 Carburetor cover pwk36-s ag As Required	54831127000	US $56.71
28	28 54831028000 Gasket for carburetor cover As Required	54831028000	US $7.02
29	29 54531629000 Clip for jet needle As Required	54531629000	US $2.82
30	30 54831030000 Sliding spring As Required	54831030000	US $9.88
31	31 54631231000 Spring cap As Required	54631231000	US $10.57
32	32 54631232000 Nipple As Required	54631232000	US $39.15
34	34 54731134100 Jet needle keihin n2zw 08 As Required	54731134100	US $14.52
34	34 54731134200 Jet needle keihin n2zj 08 As Required	54731134200	US $15.47
34	34 54731134700 Jet needle keihin n2zh 08 As Required	54731134700	US $12.85
34	34 54831034100 Jet needle keihin n84k As Required	54831034100	US $9.88
34	34 54831035300 Jet needle keihin n8re 06 As Required	54831035300	US $12.10
34	34 54831035000 Jet needle keihin n8rf 06 As Required	54831035000	US $11.59
34	34 54831035100 Jet needle keihin n8rg 06 As Required	54831035100	US $27.29
34	34 54831035400 Jet needle keihin n8rh 06 As Required	54831035400	US $14.67
34	34 54831035500 Jet needle keihin n8rw 07 As Required	54831035500	US $11.58
34	34 54831035600 Jet needle keihin n8rj 07 As Required	54831035600	US $11.85
34	34 54831035700 Jet needle keihin n8rk 08 As Required	54831035700	US $12.10
34	34 54831035800 Jet Needle Keihin N8Rl As Required	54831035800	US $10.57
35	35 54631035000 Throttle valve 7 for 38 pj '00 '00	54631035000	US $241.79
44	44 58502096044 Connect. Cold Start Cable Cpl '00	58502096044	US $31.01
45	45 54631245000 Starter piston cpl. '00	54631245000	US $91.65
46	46 54531696000 Clamp 6 mm '00	54531696000	US $2.11
47	47 31007007101 Pvc-hose 4x6mm '00	31007007101	US $2.38
48	48 52031137001 Pvc-hose 3x5mm '00	52031137001	US $6
49	49 54531699000 Plug m 18x1 '00	54531699000	US $20.21
50	50 0770180230 O-ring 18,00x2,30 nbr 70 '00	0770180230	US $2.02
52	52 52331029000 Slide stop l=36 08 As Required	52331029000	US $6.58
52	52 50331029038 Slide stop l=38mm As Required	50331029038	US $7.53
53	53 0770060018 O-ring 6,00x1,78 As Required	0770060018	US $1.45
71	71 54831071000 Washer adjusting screw As Required	54831071000	US $1.70
72	72 54831072000 O-ring adjusting screw As Required	54831072000	US $1.97

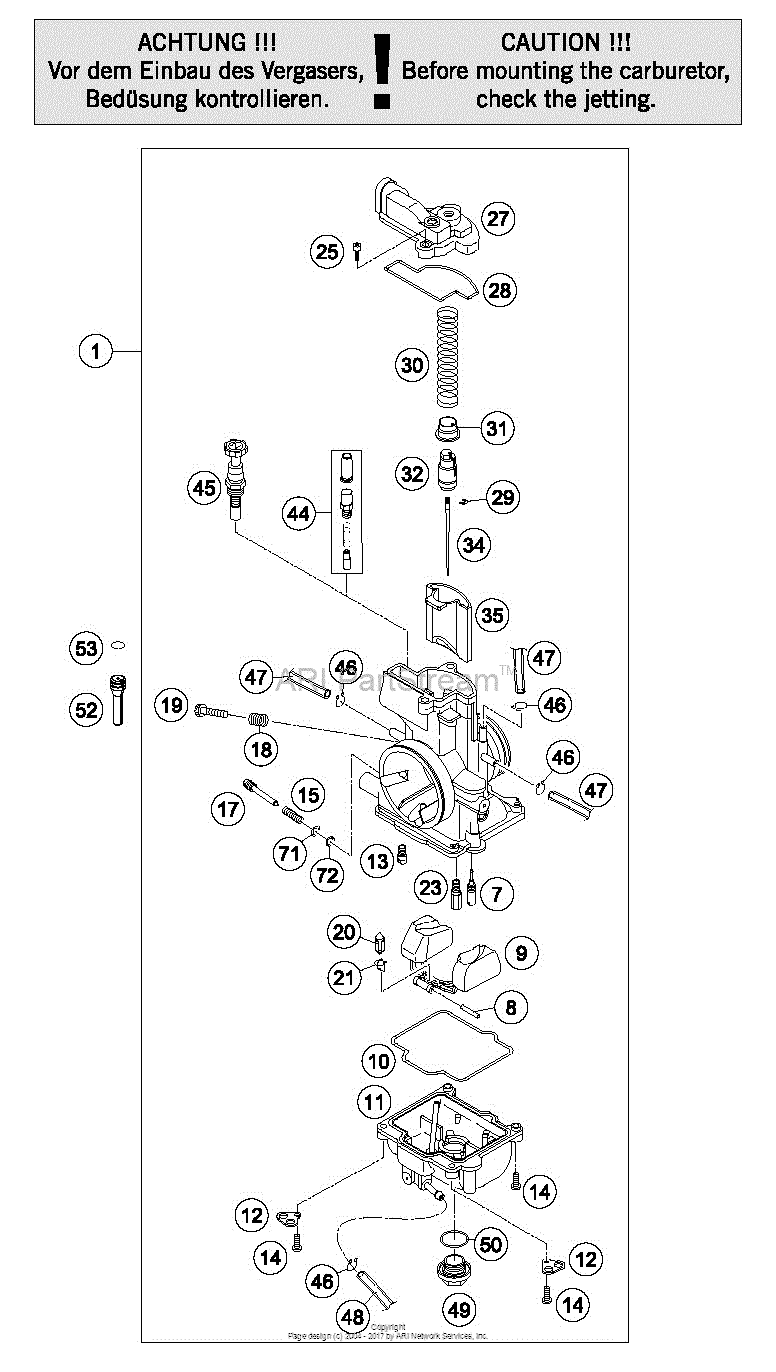

Carburetor Diagram KTM 300 300 XC-W US/EU 18088052-939794

Carburetor Diagram KTM 300 300 XC-W US/EU 18088052-939794
