Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 54830107200I Piston cpl. gr 1 d=71.925 10-14, As Required	54830107200I	US $295.89
	replacement
1	1 55630107000I Piston Cpl. Size 1 D=71,925 10-14, As Required	55630107000I	US $295.89
1	1 54830107200II Piston cpl. gr 2 d=71.935 10-14, As Required	54830107200II	—
	replacements
1	1 55630107000II Piston Cpl. Size 2 D=71,935 10-14, As Required	55630107000II	US $304.96
1	1 55630307100II Piston II cmpl. 10-14, As Required	55630307100II	US $352.21
3	3 54030074000 Wire lock ring c18x1,5 10-14, As Required	54030074000	US $1.97
4	4 54830233000 Piston Pin 10-14, As Required	54830233000	US $38.39
6	6 54630029000 Hex.nut l/sh m18x1,5 10-14, As Required	54630029000	US $9.13
7	7 58132072000 Lock washer vsk 18 10-14, As Required	58132072000	US $1.09
9	9 54830016000 Spacer sleeve 28x38x10 03 10-14, As Required	54830016000	US $15.03
10	10 0760385273 Shaft seal ring 38x52x7btsl 10-14, As Required	0760385273	US $19.77
11	11 0625623204 Ball bearing 32x65x17 ntn 10-14, As Required	0625623204	US $56.02
13	13 54830118300 Crankshaft Cpl. 250 Exc 10-14, As Required	54830118300	US $617.34
14	14 54430034000 Needle bearing kbk 18x22x20 10-14, As Required	54430034000	US $22.98
15	15 0888030050 Woodruff Key Din6888-3X5X13 10-14, As Required	0888030050	US $2.60
16	16 56530123200 Cylind.rol.bear. nj207et2xcs42 10-14, As Required	56530123200	US $114.95
17	17 6946005 Woodruff Key 5X6,5 Harded 10-14, As Required	6946005	US $0.92
18	18 0760253570 Shaft seal ring 25x35x7 btsl 10-14, As Required	0760253570	US $18.89
19	19 50230029012 Locking ring vsk 12 10-14, As Required	50230029012	US $2.19
20	20 49030021000 Collar nut m12x1 r/s 10-14, As Required	49030021000	US $10.57
30	30 54830015244 Con.rod Rep.set 250/300 10-14, As Required	54830015244	US $360.91
31	31 0770250015 O-ring 25,00x1,50 nbr 70 10-14, As Required	0770250015	US $0.24
32	32 54830132000 R-ring 72,0mm 300 2004 2004	54830132000	US $43.84
98	98 00050000009 Piston kit gr.i300sx/exc 07-08 07-14, As Required	00050000009	US $258.26
98	98 00050000001 Piston Kit Gr. Ii 300 Exc07-14 07-14, As Required	00050000001	US $258.26
99	99 00050002301 Crankshaf Rep. Kit 250-300 As Required	00050002301	US $167.31

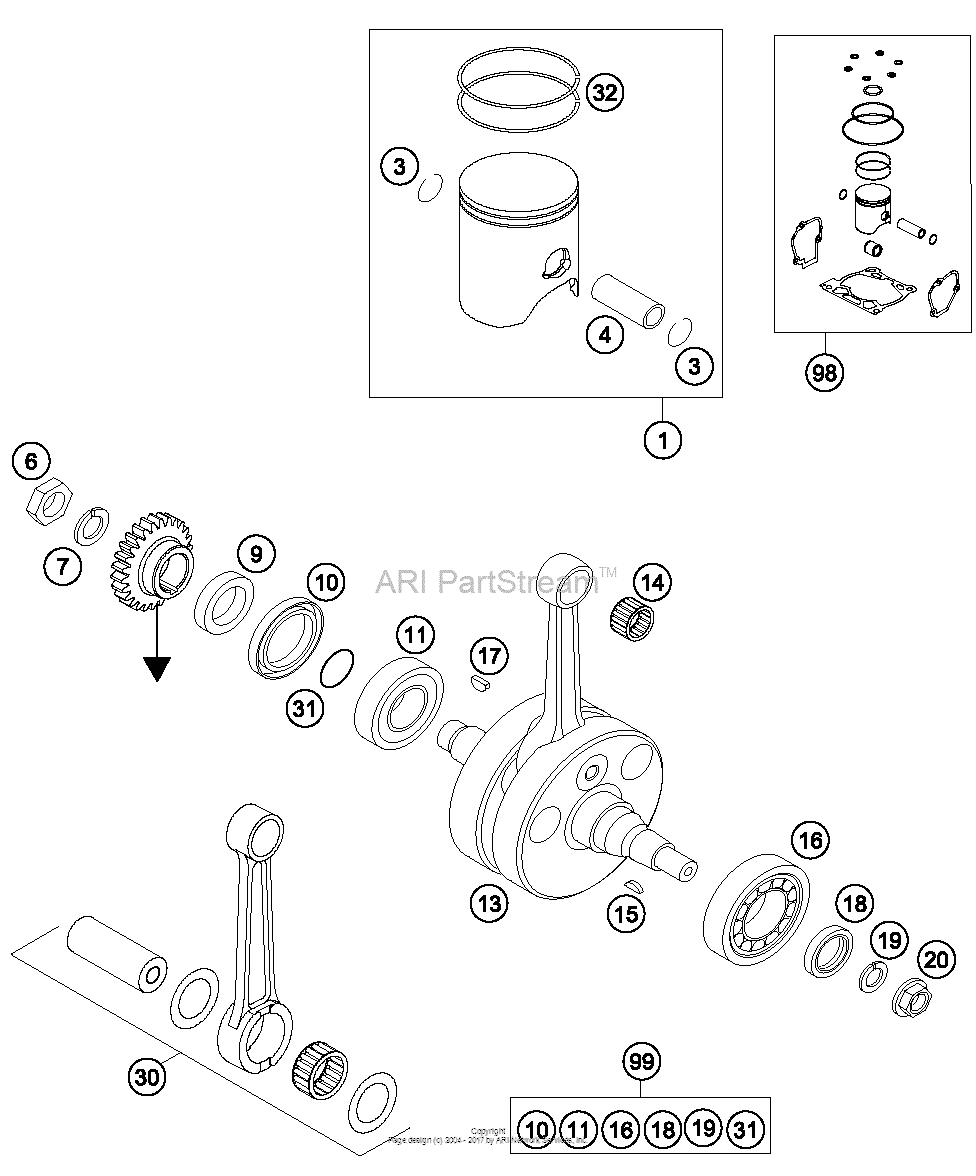

Crankshaft, Piston Diagram KTM 300 300 XC-W US/EU 18088056-939794

Crankshaft, Piston Diagram KTM 300 300 XC-W US/EU 18088056-939794
