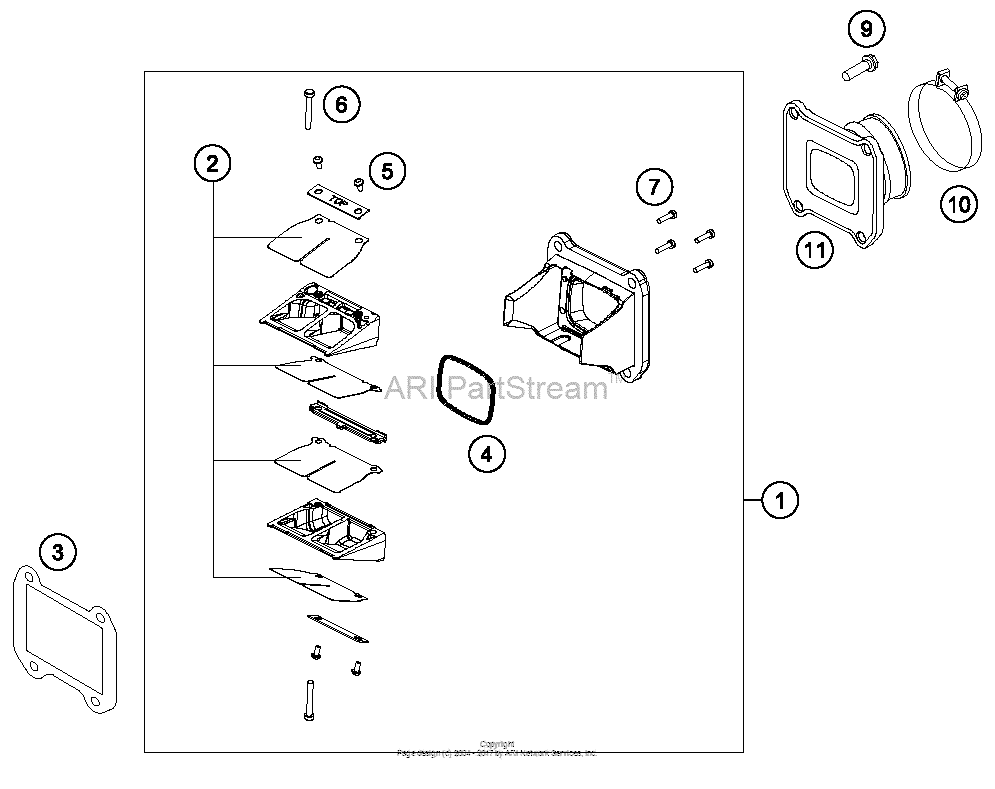

Reed Valve Case Diagram KTM 300 300 XC-W
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 XC-W
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54830151044 Reed Valve Assy CplTX30 |
54830151044 |
US $182.77 |
||
|
2
|
2
54830052344 Reed Valve SetTX30 |
54830052344 |
US $95.71 |
||
|
3
|
3
54830062200 Gasket Reed Valve CaseTX30 |
54830062200 |
US $5.36 |
||
|
4
|
4
54830153050 Gasket Supporting PlateTX30 |
54830153050 |
US $26.13 |
||
|
5
|
5
0081030063 Ejot Delta Pt Screw 30X6TX30 |
0081030063 |
US $0.27 |
||
|
6
|
6
0081035253 Ejot Delta Pt Screw 35X25TX30 |
0081035253 |
US $0.46 |
||
|
7
|
7
0081030124 Ejot Delta Pt Screw 30X12TX30 |
0081030124 |
US $0.27 |
||
|
9
|
9
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
10
|
10
54330061000 Clamp 52/12 gemiTX30 |
54330061000 |
US $7.31 |
||
|
11
|
11
54830050000 Intake flange v-force 04TX30 |
54830050000 |
US $44.93 |
