	Description	OEM Part #	Price
3	3 48601029S1 Axle Clamp R/s With Inner Tube As Required	48601029S1	US $572.99
4	4 48601028S1 Axle Clamp L/s With Inner Tube As Required	48601028S1	US $600.12
5	5 0025080256 Hh Collar Screw M8X25 Tx40 TX40	0025080256	US $4.10
6	6 48601008 Guiding Bush 47X49X20 R11 TX40	48601008	US $13.23
7	7 48601009 Guiding Bush 48X52X12 R11 TX40	48601009	US $13.23
8	8 48600013 Support ring 50 x 57,6 x 1,5 TX40	48600013	US $11.37
9	9 48601179 Oil Seal Ring 48X57,9X11,4 TX40	48601179	US $23.60
10	10 48600070 Lock washer sb58 TX40	48600070	US $2.35
11	11 48601178 Dust Seal Dl48X58,4X5,7 Red TX40	48601178	US $23.05
12	12 48600736 Outer tube l577 d54/60mm 2l TX40	48600736	US $435.66
13	13 91410081S Spring D43.8 L465 3.6N/mm Set As Required	91410081S	US $223.13
13	13 91410082S Spring D43,8 L465 3,8N/mm Set As Required	91410082S	US $223.13
13	13 91410083S Spring D43,8 L465 4,0N/mm Set As Required	91410083S	US $223.13
13	13 91410084S Spring D43,8 L465 4,2N/mm Set As Required	91410084S	US $223.13
13	13 91410085S Spring D43,8 L465 4,4N/mm Set As Required	91410085S	US $223.13
13	13 91410086S Spring D43,8 L465 4,6N/mm Set As Required	91410086S	US $223.13
13	13 91410092S Spring D43,8 L465 4,8N/mm Set As Required	91410092S	US $223.13
14	14 48600456 Spacer 43x35x2,5 As Required	48600456	US $28.70
14	14 48600458 Spacer 43x35x1,5 As Required	48600458	US $28.70
15	15 48601116S Screw Cap M51X1,5 Cpl As Required	48601116S	US $118.66
	replacement
15	15 48601116E Screw Cap M51X1,5 Cpl As Required	48601116E	US $118.66
15	15 48601050S Screw Cap M51X1,5 Reb. Kpl As Required	48601050S	—
	replacement
15	15 48601050E Screw Cap M51X1,5 Reb. Kpl As Required	48601050E	US $122.38
16	16 R14033 Screw Cap Small Part Kit As Required	R14033	US $37.15
17	17 48601031S Cartridge Kit As Required	48601031S	US $107.24
18	18 R14034 Hydrostop Kit As Required	R14034	US $38.13
19	19 48601279S Base Valve Kit As Required	48601279S	US $62.73
20	20 48601025S1 Check Valve D21 Cpl As Required	48601025S1	US $42.14
21	21 R14035 Screw Sleeve Kit As Required	R14035	US $74.43
22	22 48601123S Needle Kit As Required	48601123S	US $46.07
23	23 R14036 Tap Kit As Required	R14036	US $69.07
24	24 48600382 Shuttle valve spring c=0,4 As Required	48600382	US $2.67
25	25 48601054S Piston Rod Cpl As Required	48601054S	US $112.17
26	26 48601035S Spring Guide Cpl As Required	48601035S	US $17.10
27	27 48601021S Pressure Tank L74,5 D36 S Cpl As Required	48601021S	US $85.53
27	27 48601021S2 Pressure Tank L74,5 D36 S2 Cpl As Required	48601021S2	US $91.29
27	27 48601021S3 Pressure Tank L74,5 D36 S3 Cpl As Required	48601021S3	US $91.29
27	27 48601021S4 Pressure Tank L74,5 D36 S4 Cpl As Required	48601021S4	US $98.28
27	27 48601021S5 Pressuretank L74,5 D36 S5 Cpl As Required	48601021S5	—
	replacement
27	27 48601021S4 Pressure Tank L74,5 D36 S4 Cpl As Required	48601021S4	US $98.28
30	30 48601166S1 Fork Oil Sae4 5L As Required	48601166S1	US $218.08
31	31 T511 Silicone grease f. dust stri As Required	T511	US $132.91
99	99 R24001 Repair - Kit As Required	R24001	US $219.61

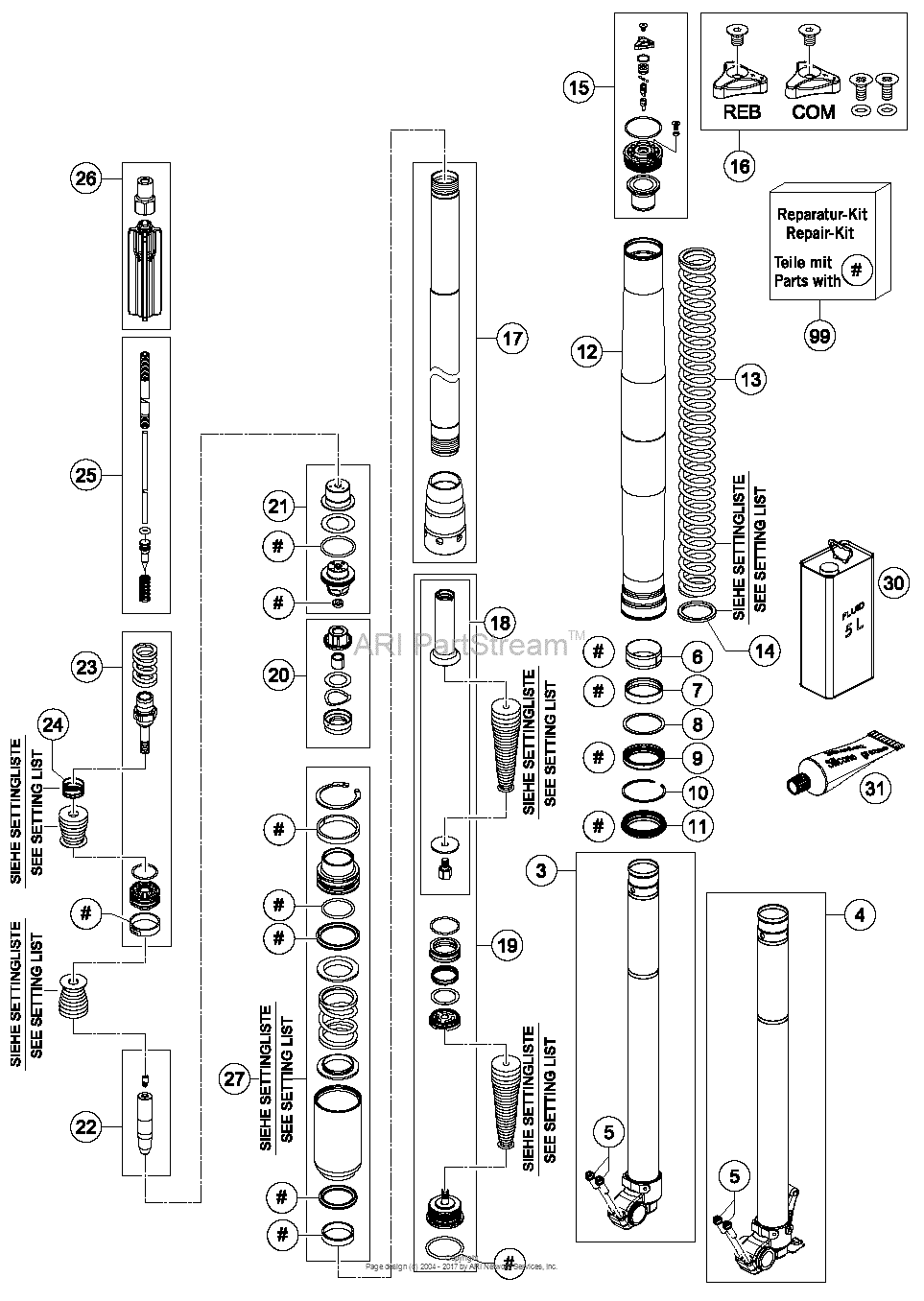

Front Fork Disassembled Diagram KTM 300 300 XC-W Six Days US/EU 18088074-939795

Front Fork Disassembled Diagram KTM 300 300 XC-W Six Days US/EU 18088074-939795
