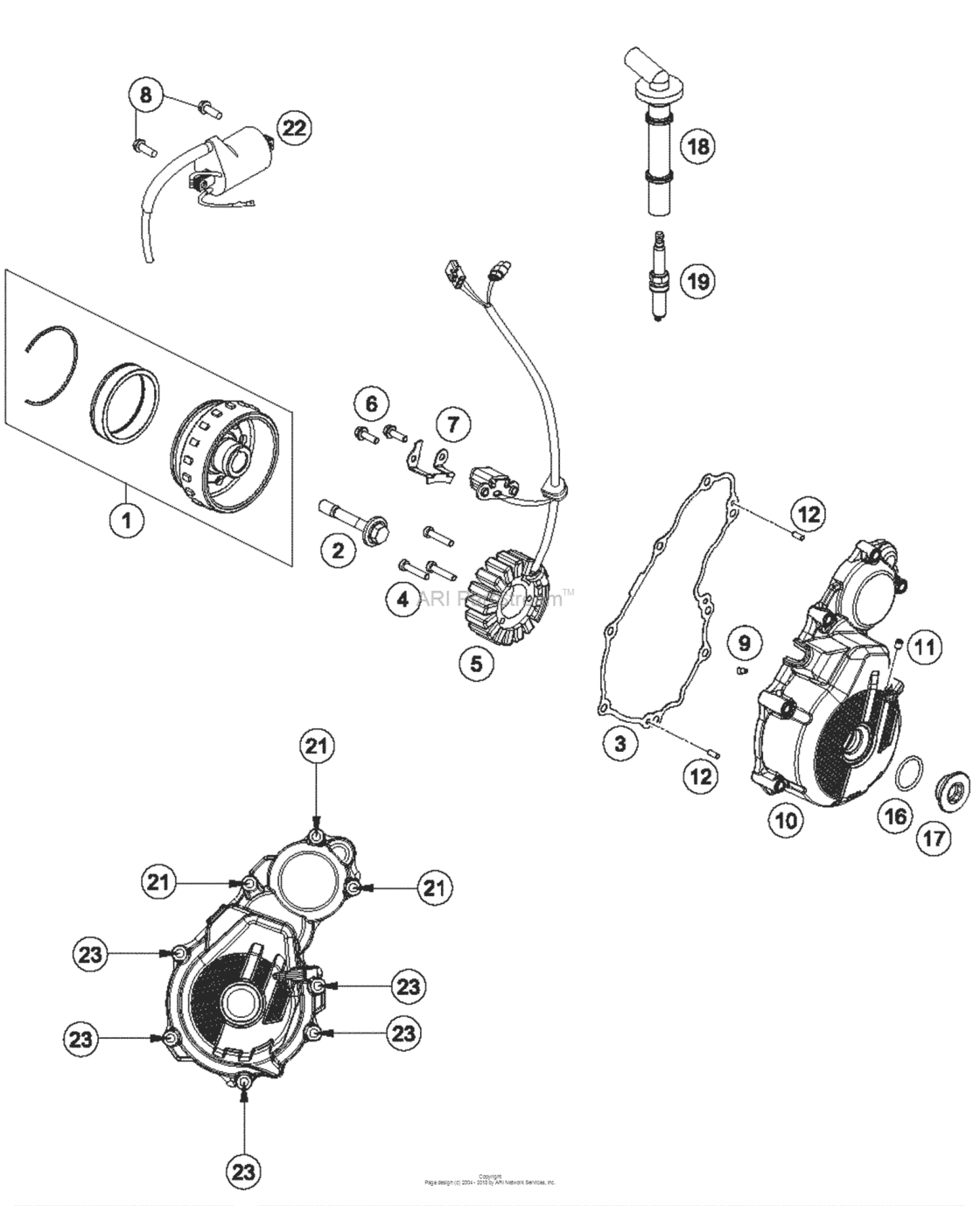

Ignition System Diagram KTM 350 350 EXC-F
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 350
- Model
- 350 EXC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79239105044 Rotor Efi Cpl2000 |
79239105044 |
US $436.71 |
||
|
2
|
2
77339010100 Flywheel screw2000 |
77339010100 |
US $4.66 |
||
|
3
|
3
79230040000 Ignition Cover Gasket2000 |
79230040000 |
US $21.25 |
||
|
4
|
4
0912050303 Ah Screw Din0912-M 5X302000 |
0912050303 |
US $0.66 |
||
|
5
|
5
79239104000 Stator2000 |
79239104000 |
US $200.97 |
||
|
6
|
6
0025050166 Hh collar screw m5x16 tx30TX30 |
0025050166 |
US $2.60 |
||
|
7
|
7
79230102050 Cable BracketTX30 |
79230102050 |
US $13.12 |
||
|
8
|
8
0026060186 Collar Screw M6X18 Isa30TX30 |
0026060186 |
US $0.58 |
||
|
9
|
9
80030058060 Oil jet "60" m4TX30 |
80030058060 |
US $10.27 |
||
|
10
|
10
7923010200015 Ignition Cover ExcTX30 |
7923010200015 |
US $111.78 |
||
|
11
|
11
0913050063S Thread Pin Din 913 M5X6TX30 |
0913050063S |
US $0.82 |
||
|
12
|
12
0402040980 Needle Rol.din5402 Nrb 4X9,8TX30 |
0402040980 |
US $1.77 |
||
|
16
|
16
07700240251 O-ring 24x2,5 vitonTX30 |
07700240251 |
US $3.96 |
||
|
17
|
17
7723000216030 Screw Plug M24X1,5TX30 |
7723000216030 |
US $39.24 |
||
|
18
|
18
77239090000 Spark plug connectorTX30 |
77239090000 |
US $32.98 |
||
|
19
|
19
77839093000 Spark Plug Ngk Lmar9Ai-10TX30 |
77839093000 |
US $27.05 |
||
|
21
|
21
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $3.96 |
||
|
22
|
22
58439006000 Ignitioncoil ig3826 kokusan'96'96 |
58439006000 |
US $83.22 |
||
|
23
|
23
0025060406 Hh collar screw m6x40 tx30TX30 |
0025060406 |
US $2.23 |
