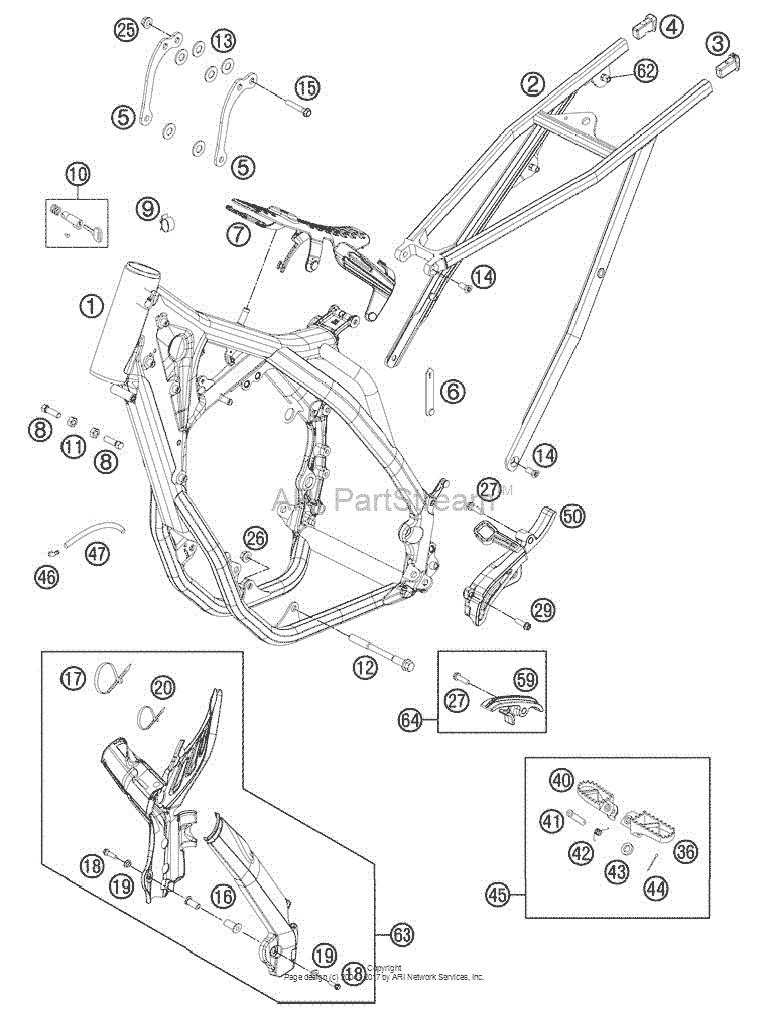

Frame Diagram KTM 350 350 EXC-F
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 350
- Model
- 350 EXC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7750300110033 Frame Black M. 775L111 |
7750300110033 |
US $1,707.85 |
||
|
2
|
2
77203002000 Sub Frame Sx11 |
77203002000 |
US $368.54 |
||
|
3
|
3
78003002010
Sub frame application left 08
08 |
78003002010 |
— | ||
| replacement | |||||
|
3
|
3
78103002010 Sub Frame Application Left08 |
78103002010 |
US $20.28 |
||
|
4
|
4
78003002020
Sub frame application right 08
08 |
78003002020 |
— | ||
| replacement | |||||
|
4
|
4
78103002020 Sub Frame Application Right08 |
78103002020 |
US $22.39 |
||
|
5
|
5
77503013000 Reinforcing 350 Exc-F 201208 |
77503013000 |
US $10.81 |
||
|
6
|
6
60011093075 Rubber cable tie 75mm 0303 |
60011093075 |
US $3.71 |
||
|
7
|
7
77207012000 Tank Rest Rubber03 |
77207012000 |
US $8.04 |
||
|
8
|
8
59001037000 Special screw m8x26 ws=1003 |
59001037000 |
US $2.09 |
||
|
9
|
9
57013072100 Wiring holder 16mm03 |
57013072100 |
US $0.53 |
||
|
10
|
10
78003035000 Steering Head Lock 0808 |
78003035000 |
US $50.83 |
||
| replacement | |||||
|
10
|
10
78003035100 STEERING HEAD LOCK 0808 |
78003035100 |
US $24.07 |
||
|
11
|
11
0934080003 Hexagon Nut Din0934-M 808 |
0934080003 |
US $3.26 |
||
|
12
|
12
77203014000 Engine Brac.scr. M10X11508 |
77203014000 |
US $7.65 |
||
|
13
|
13
77003013050 Washer 8,5x18x1 inox08 |
77003013050 |
US $2.14 |
||
|
14
|
14
0019080206S Flat head screw m. isa45 m8x2008 |
0019080206S |
US $3.26 |
||
|
15
|
15
56530079000
Collar screw m8x42 ws=13 10.9
08 |
56530079000 |
— | ||
| replacement | |||||
|
15
|
15
56530079000S Hh Collar Screw M8X44 Ws1308 |
56530079000S |
US $1.60 |
||
|
16
|
16
54803092050 Blind plug-in nut m5 wn 22a 0308 |
54803092050 |
US $4.76 |
||
|
17
|
17
44011076305 Cable tie 300/4,8mm black08 |
44011076305 |
US $0.36 |
||
|
18
|
18
0738050250 Cou.sunk scr. ah iso7380 m5x2508 |
0738050250 |
US $0.75 |
||
|
19
|
19
54803092060 Bush f. frame protection 0303 |
54803092060 |
US $3.43 |
||
|
20
|
20
44011076140 Cable tie 140/2,5mm black03 |
44011076140 |
US $0.29 |
||
|
25
|
25
54310086200 Self Locking Nut M8 10.910.9 |
54310086200 |
US $1.56 |
||
|
26
|
26
54310086100 Self locking nut m10 cu ws=1410.9 |
54310086100 |
US $2.55 |
||
|
27
|
27
0025080306 Hh collar screw m8x30 tx40TX40 |
0025080306 |
US $3.89 |
||
|
29
|
29
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
36
|
36
78003040050 Footrest l/s 0808 |
78003040050 |
US $44.12 |
||
|
40
|
40
78003041050 Footrest r/s 0808 |
78003041050 |
US $44.12 |
||
|
41
|
41
54803044000 Pin For Foot Ped 51.5X9.8 Mm03 |
54803044000 |
US $10.98 |
||
|
42
|
42
54603041000 Footrest Spring L/s & R/s03 |
54603041000 |
US $3.52 |
||
|
43
|
43
0125100003 Washer Din0125-A10,503 |
0125100003 |
US $1.19 |
||
|
44
|
44
0094032253 Pin din0094-3,2x25 steel03 |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
44
|
44
0094032250 Pin din0094-3,2x25 steel03 |
0094032250 |
US $1.12 |
||
|
45
|
45
78003040033 Footrest l/s + r/s cpl. 0909 |
78003040033 |
US $118.13 |
||
|
46
|
46
50303089000 Angle piece '9797 |
50303089000 |
US $4.52 |
||
|
47
|
47
55007016001 Pvc-hose 7x10 per meter(As required) |
55007016001 |
US $5.98 |
||
|
50
|
50
77203096000 Sprocket Cover 350 Sx-F(As required) |
77203096000 |
US $13.45 |
||
|
59
|
59
77203053000 Chain Slider Lower Part Cpl(As required) |
77203053000 |
US $7.67 |
||
|
62
|
62
77303139000 Blind rivet nut em6-60lf/hx(As required) |
77303139000 |
US $2.94 |
||
|
63
|
63
77203094000 Plastic Frame Protection Set(As required) |
77203094000 |
US $54.15 |
||
|
64
|
64
77203053010 Chain Sliding Kit Below Cpl.11(As required) |
77203053010 |
US $17.46 |
||
