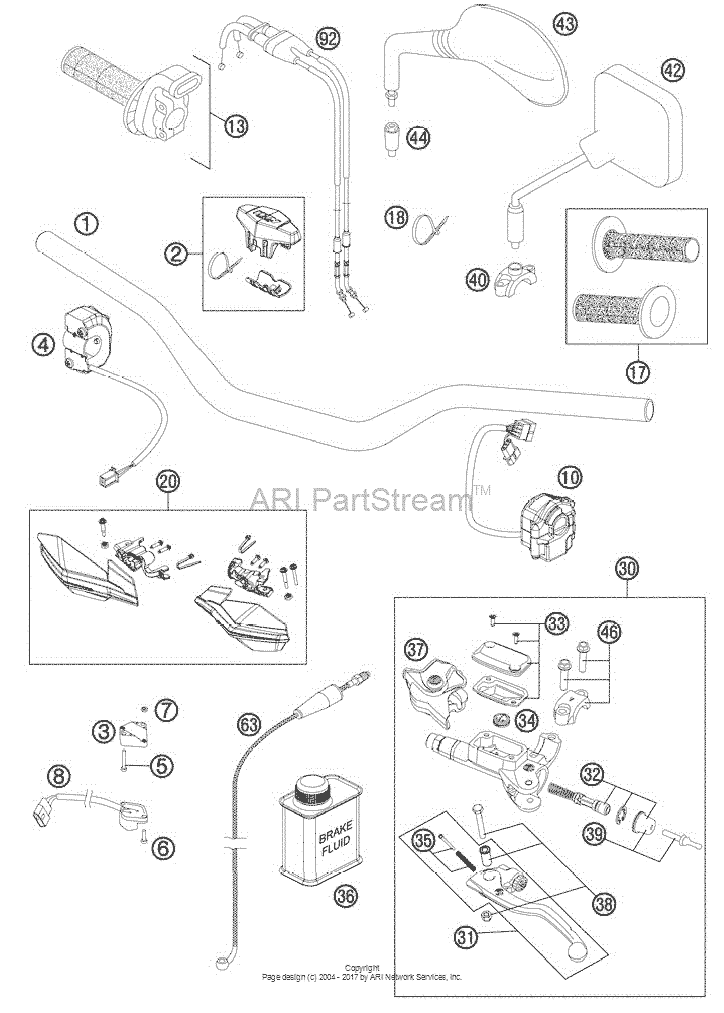

Handlebar, Controls Diagram KTM 350 350 EXC-F
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 350
- Model
- 350 EXC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7800200100017 Handlebar d=28mm2000 |
7800200100017 |
US $183.19 |
||
|
2
|
2
77202002144 Bar Pad Cpl2000 |
77202002144 |
US $26.96 |
||
|
3
|
3
13011070060 Adapter For Flasher Switch '9898 |
13011070060 |
US $4.74 |
||
|
4
|
4
76511074000 Start-emergency stop switch 0898 |
76511074000 |
US $53.06 |
||
|
5
|
5
0084040223 Cyl.head Screw Din0084-M 4X22A98 |
0084040223 |
US $0.20 |
||
|
6
|
6
0985040203 Flat head screw din7985-m 4x2098 |
0985040203 |
US $0.53 |
||
|
7
|
7
0934040003 Hexagon nut din0934-m 498 |
0934040003 |
US $0.54 |
||
|
8
|
8
50311029000 Flasher Switch Cev '9898 |
50311029000 |
US $53.19 |
||
|
10
|
10
76511070000
Light switch l/s 08
08 |
76511070000 |
— | ||
| replacement | |||||
|
10
|
10
76511070100 Light switch l/s 0808 |
76511070100 |
US $164.51 |
||
|
13
|
13
77002010100
Throttle grip cpl. 4-st. 09
09 |
77002010100 |
— | ||
| replacement | |||||
|
13
|
13
78102010000 Throttle Grip Cpl09 |
78102010000 |
US $71.72 |
||
|
17
|
17
54802021200 Grip-set gray/orange 0909 Not Available |
54802021200 |
US $28.29 |
||
|
18
|
18
44011076140 Cable tie 140/2,5mm black(As required) |
44011076140 |
US $0.29 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm black(As required) |
44011076200 |
US $0.39 |
||
|
20
|
20
7810297900004 Handguards Cpl.le+Ri Orange(As required) |
7810297900004 |
US $83.28 |
||
| replacement | |||||
|
20
|
20
7810297905004 HANDGUARD SET ORANGE(As required) |
7810297905004 |
US $41.63 |
||
|
30
|
30
54802030044
Master cylinder cpl. 06
06 |
54802030044 |
— | ||
| replacement | |||||
|
30
|
30
54802030144 Master Cylinder Cpl06 |
54802030144 |
US $214.10 |
||
|
31
|
31
54802031000 Clutch lever cpl. brembo 0606 |
54802031000 |
US $45.82 |
||
|
32
|
32
54802032000 Rep. kit piston 0606 |
54802032000 |
US $43.21 |
||
|
33
|
33
54802003000 Cover hyd. clutch cpl.06 |
54802003000 |
US $30.28 |
||
|
34
|
34
54802051000 Valve06 |
54802051000 |
US $16.88 |
||
|
35
|
35
54802052000 Bolt kpl.06 |
54802052000 |
US $26.49 |
||
|
36
|
36
00062030000 Brake fluid dot5.1 0,25l0,25L |
00062030000 |
US $14.35 |
||
|
37
|
37
54802037000 Protection cap 0606 |
54802037000 |
US $18.77 |
||
|
38
|
38
54802038100 Lever screw cpl. 0606 |
54802038100 |
US $36.02 |
||
|
39
|
39
54802046000 Push rod cpl.06 |
54802046000 |
US $20.01 |
||
|
40
|
40
58012040150 Clamp for mirror '9494 |
58012040150 |
US $18.90 |
||
|
42
|
42
58012040000 Rear mirror l/s94 |
58012040000 |
US $41.60 |
||
|
42
|
42
58012140000 Rear mirror r/s94 |
58012140000 |
US $42.67 |
||
|
43
|
43
58412040000 Mirror l/s 9898 (As required) |
58412040000 |
US $37.33 |
||
|
43
|
43
58412041000 Mirror r/s 9898 (As required) |
58412041000 |
US $37.33 |
||
|
44
|
44
58412040050 Support for mirror lc4 '9898 |
58412040050 |
US $18.41 |
||
|
46
|
46
54802005100 Clamp cpl. 0606 |
54802005100 |
US $23.49 |
||
|
63
|
63
54832063000 Clutch pipe 0606 |
54832063000 |
US $87.04 |
||
|
92
|
92
77002091000 Throttle cable 250 sxf 20052005 |
77002091000 |
US $80.70 |
||
