Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 7800200100017 Handlebar d=28mm 2000	7800200100017	US $183.19
2	2 77202002144 Bar Pad Cpl 2000	77202002144	US $26.96
3	3 13011070060 Adapter For Flasher Switch '98 98	13011070060	US $4.74
4	4 0934040003 Hexagon nut din0934-m 4 98	0934040003	US $0.54
5	5 0084040223 Cyl.head Screw Din0084-M 4X22A 98	0084040223	US $0.20
6	6 0985040203 Flat head screw din7985-m 4x20 98	0985040203	US $0.53
7	7 7770207900004 Handguards Cpl. L+R Orange 98	7770207900004	—
	replacement
7	7 7770217900004 Handguards Cpl. L+R Orange 98	7770217900004	US $56.34
10	10 50311070000 H.light Switch Cev 2/4Takt '98 98	50311070000	US $65.79
13	13 78102010000 Throttle Grip Cpl 98	78102010000	US $71.72
16	16 44011076305 Cable tie 300/4,8mm black As Required	44011076305	US $0.36
17	17 78102021000 Grip Set As Required	78102021000	US $25.62
18	18 44011076200 Cable tie 200/3,6mm black As Required	44011076200	US $0.39
18	18 44011076140 Cable tie 140/2,5mm black As Required	44011076140	US $0.29
29	29 50311029000 Flasher Switch Cev '98 98	50311029000	US $53.19
30	30 54802030144 Master Cylinder Cpl 98	54802030144	US $214.10
31	31 54802031000 Clutch lever cpl. brembo 06 06	54802031000	US $45.82
32	32 54802032000 Rep. kit piston 06 06	54802032000	US $43.21
33	33 5480200310030 Cover Hyd. Clutch Cpl. 2014 2014	5480200310030	US $40.39
34	34 54802051000 Valve 2014	54802051000	US $16.88
35	35 54802052000 Bolt kpl. 2014	54802052000	US $26.49
36	36 00062030000 Brake fluid dot5.1 0,25l 2014	00062030000	US $14.35
37	37 54802037000 Protection cap 06 06	54802037000	US $18.77
38	38 54802038100 Lever screw cpl. 06 06	54802038100	US $36.02
39	39 54802046000 Push rod cpl. 06	54802046000	US $20.01
40	40 58012040150 Clamp for mirror '94 94	58012040150	US $18.90
43	43 58412040000 Mirror l/s 98 98, As Required	58412040000	US $37.33
43	43 58412041000 Mirror r/s 98 98, As Required	58412041000	US $37.33
44	44 58412040050 Support for mirror lc4 '98 98, As Required	58412040050	US $18.41
46	46 54802005100 Clamp cpl. 06 06	54802005100	US $23.49
63	63 54832063000 Clutch pipe 06 06	54832063000	US $87.04
69	69 77711074000 Start-Stop Switch 06	77711074000	—
92	92 78102091000 Throttle Cable 4T 13	78102091000	US $73.51
	replacement
92	92 78102091100 Throttle Cable 4T 13	78102091100	US $60.42
94	94 58012040000 Rear mirror l/s 13	58012040000	US $41.60
94	94 58012140000 Rear mirror r/s 13	58012140000	US $42.67

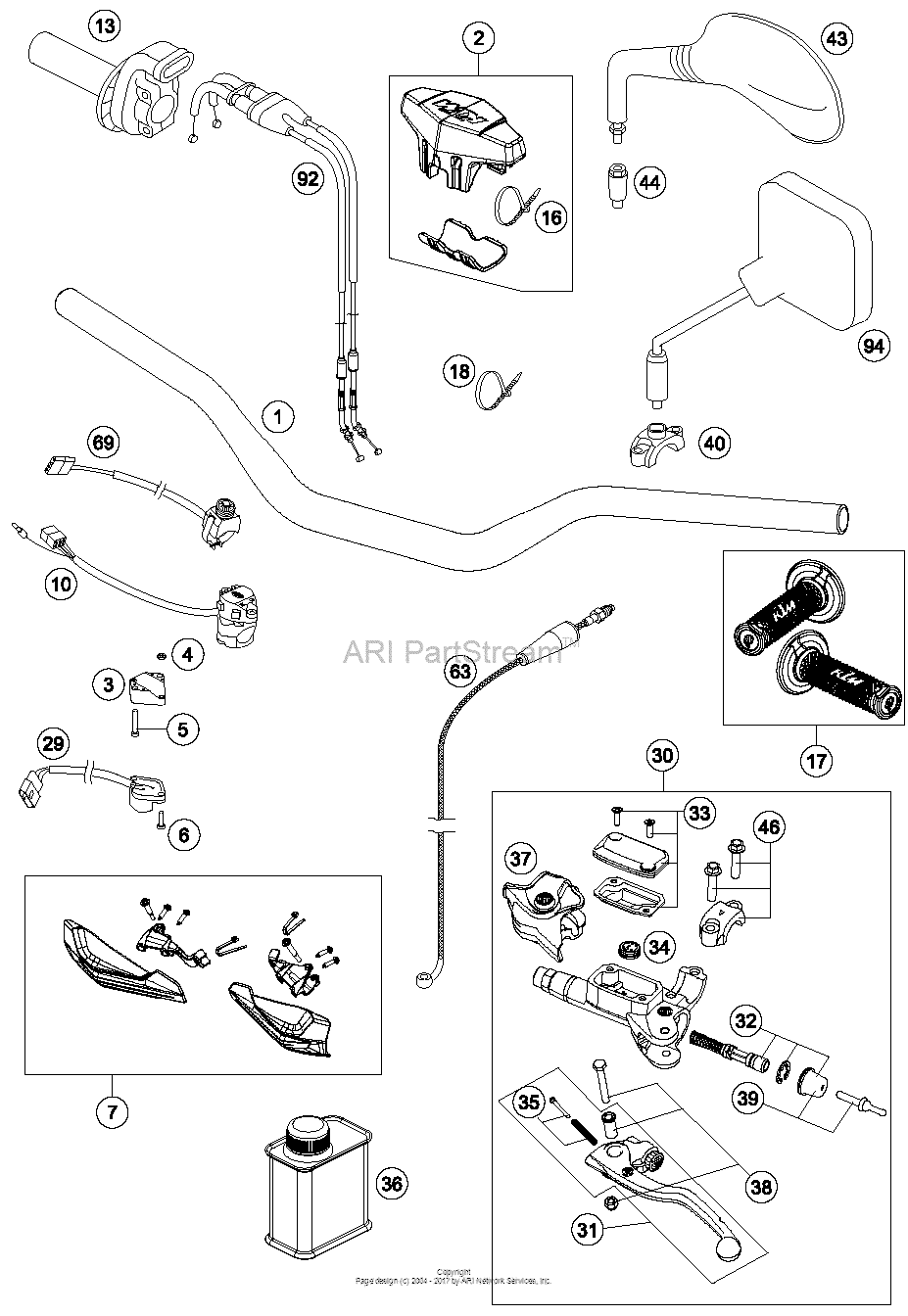

Handlebar, Controls Diagram KTM 350 350 EXC-F US/EU 18088423-939810

Handlebar, Controls Diagram KTM 350 350 EXC-F US/EU 18088423-939810
