	Description	OEM Part #	Price
1	1 7750310110004 Frame 775N1 Orange 12-14, As Required	7750310110004	US $1,621.46
2	2 77203002000 Sub Frame Sx 12-14, As Required	77203002000	US $368.54
3	3 78103002010 Sub Frame Application Left 12-14, As Required	78103002010	US $20.28
4	4 78103002020 Sub Frame Application Right 12-14, As Required	78103002020	US $22.39
5	5 77503113000 Engine Brace 14 12-14, As Required	77503113000	US $5.92
6	6 60011093075 Rubber cable tie 75mm 03 12-14, As Required	60011093075	US $3.71
7	7 77207012000 Tank Rest Rubber 12-14, As Required	77207012000	US $8.04
8	8 59001037000 Special screw m8x26 ws=10 12-14, As Required	59001037000	US $2.09
9	9 57013072100 Wiring holder 16mm 12-14, As Required	57013072100	US $0.53
10	10 78003035000 Steering Head Lock 08 12-14, As Required	78003035000	US $50.83
	replacement
10	10 78003035100 STEERING HEAD LOCK 08 12-14, As Required	78003035100	US $24.07
11	11 0934080003 Hexagon Nut Din0934-M 8 12-14, As Required	0934080003	US $3.26
12	12 77203014000 Engine Brac.scr. M10X115 12-14, As Required	77203014000	US $7.65
14	14 0019080206S Flat head screw m. isa45 m8x20 12-14, As Required	0019080206S	US $3.26
15	15 56530079000S Hh Collar Screw M8X44 Ws13 12-14, As Required	56530079000S	US $1.60
16	16 54803092050 Blind plug-in nut m5 wn 22a 03 12-14, As Required	54803092050	US $4.76
17	17 44011076305 Cable tie 300/4,8mm black 12-14, As Required	44011076305	US $0.36
18	18 0738050250 Cou.sunk scr. ah iso7380 m5x25 12-14, As Required	0738050250	US $0.75
19	19 54803092060 Bush f. frame protection 03 12-14, As Required	54803092060	US $3.43
20	20 44011076140 Cable tie 140/2,5mm black 12-14, As Required	44011076140	US $0.29
25	25 06923080003 Hexagon nut din en1661 m8 sw13 12-14, As Required	06923080003	US $1.16
26	26 54310086100 Self locking nut m10 cu ws=14 12-14, As Required	54310086100	US $2.55
27	27 0025080306 Hh collar screw m8x30 tx40 TX40	0025080306	US $3.89
29	29 0025060256 Hh collar screw m6x25 tx30 TX30	0025060256	US $2.45
36	36 78003040050 Footrest l/s 08 TX30	78003040050	US $44.12
40	40 78003041050 Footrest r/s 08 TX30	78003041050	US $44.12
41	41 54803044000 Pin For Foot Ped 51.5X9.8 Mm TX30	54803044000	US $10.98
42	42 54603041000 Footrest Spring L/s & R/s TX30	54603041000	US $3.52
43	43 0125100003 Washer Din0125-A10,5 TX30	0125100003	US $1.19
44	44 0094032253 Pin din0094-3,2x25 steel TX30	0094032253	US $1.12
	replacement
44	44 0094032250 Pin din0094-3,2x25 steel TX30	0094032250	US $1.12
45	45 78003040033 Footrest l/s + r/s cpl. 09 TX30	78003040033	US $118.13
46	46 51030022000 Angle piece 90 degree m10x1 TX30	51030022000	US $4.66
47	47 55007016001 Pvc-hose 7x10 per meter TX30	55007016001	US $5.98
50	50 77203096000 Sprocket Cover 350 Sx-F TX30	77203096000	US $13.45
59	59 77203053000 Chain Slider Lower Part Cpl TX30	77203053000	US $7.67
62	62 77303139000 Blind rivet nut em6-60lf/hx As Required	77303139000	US $2.94
63	63 77203094000 Plastic Frame Protection Set As Required	77203094000	US $54.15
64	64 77203053010 Chain Sliding Kit Below Cpl.11 As Required	77203053010	US $17.46
99	99 77203096010 Sprocket Cover Kit As Required	77203096010	US $17.85

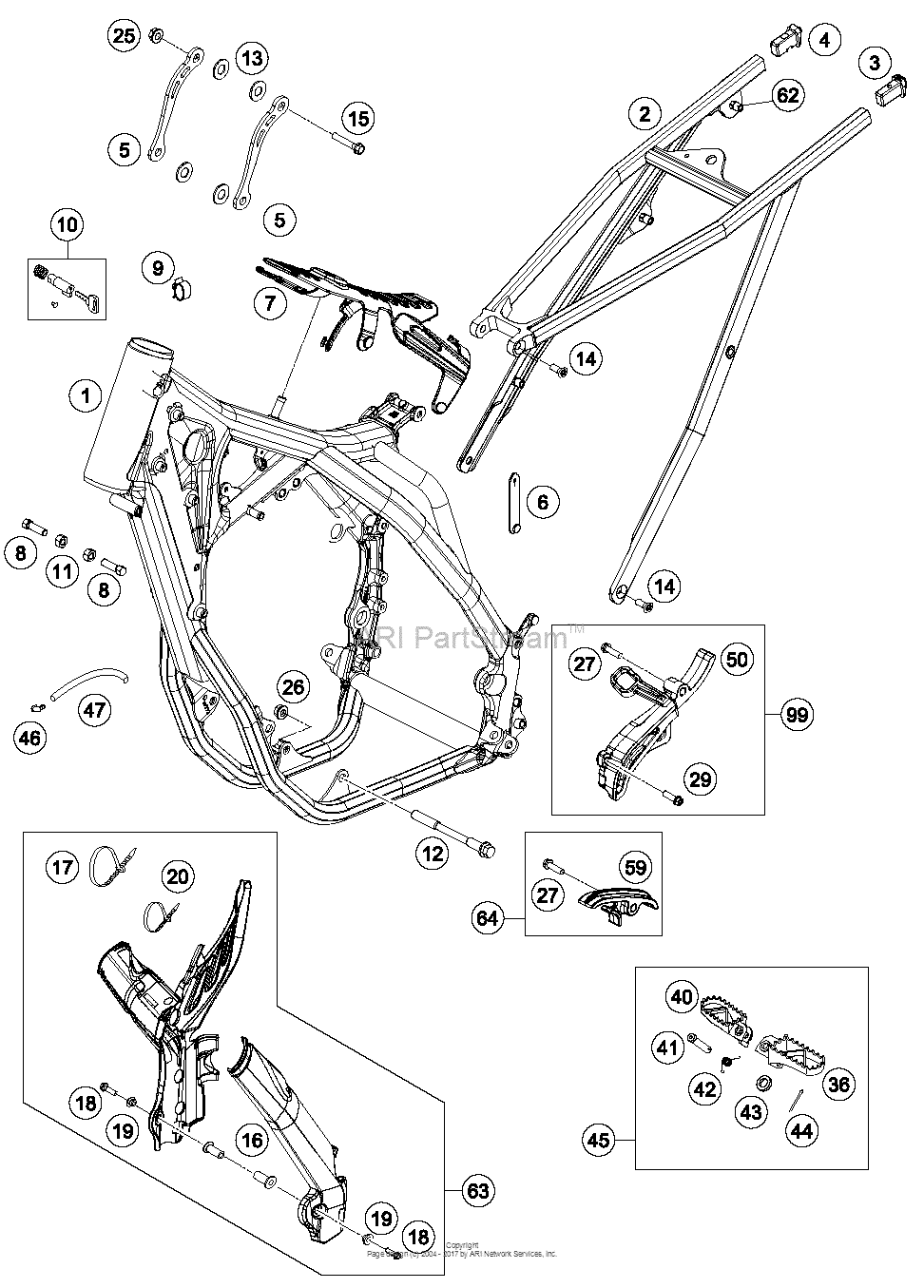

Frame Diagram KTM 350 350 EXC-F US/EU 18088470-939812

Frame Diagram KTM 350 350 EXC-F US/EU 18088470-939812
