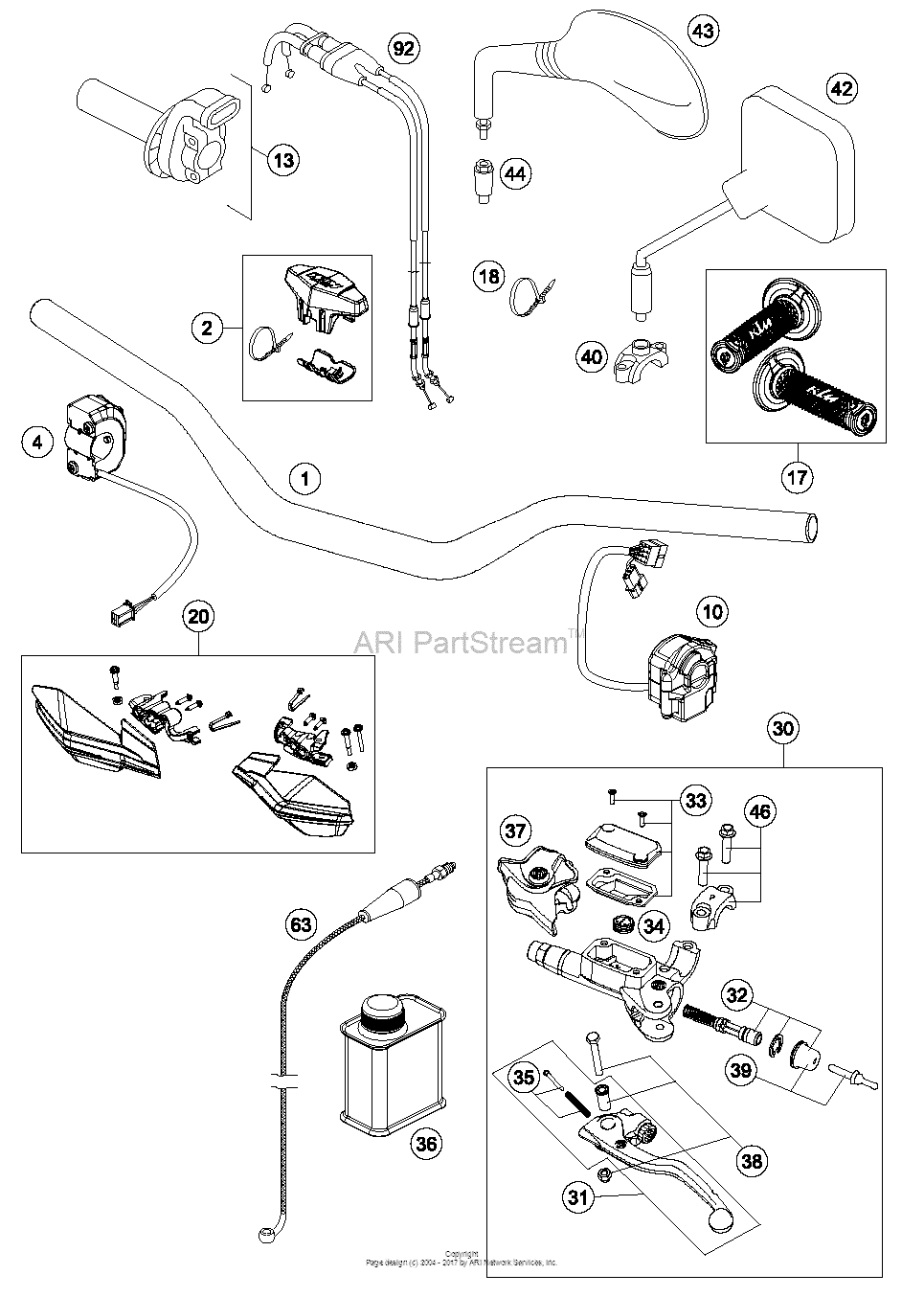

Handlebar, Controls Diagram KTM 350 350 EXC-F
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 350
- Model
- 350 EXC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7800200100030 Handlebar2000 |
7800200100030 |
US $160.77 |
||
|
2
|
2
77202002144 Bar Pad Cpl2000 |
77202002144 |
US $26.96 |
||
|
4
|
4
76511074000 Start-emergency stop switch 082000 |
76511074000 |
US $53.06 |
||
|
10
|
10
76511070000
Light switch l/s 08
2000 |
76511070000 |
— | ||
| replacement | |||||
|
10
|
10
76511070100 Light switch l/s 082000 |
76511070100 |
US $164.51 |
||
|
13
|
13
78102010000 Throttle Grip Cpl2000 |
78102010000 |
US $71.72 |
||
|
17
|
17
78102021000 Grip Set2000 |
78102021000 |
US $25.62 |
||
|
18
|
18
44011076140 Cable tie 140/2,5mm blackAs Required |
44011076140 |
US $0.29 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm blackAs Required |
44011076200 |
US $0.39 |
||
|
20
|
20
7770217900004 Handguards Cpl. L+R OrangeAs Required |
7770217900004 |
US $56.34 |
||
|
30
|
30
54802030144 Master Cylinder CplAs Required |
54802030144 |
US $214.10 |
||
|
31
|
31
54802031000 Clutch lever cpl. brembo 06As Required |
54802031000 |
US $45.82 |
||
|
32
|
32
54802032000 Rep. kit piston 06As Required |
54802032000 |
US $43.21 |
||
|
33
|
33
5480200310030 Cover Hyd. Clutch Cpl. 20142014 |
5480200310030 |
US $40.39 |
||
|
34
|
34
54802051000 Valve2014 |
54802051000 |
US $16.88 |
||
|
35
|
35
54802052000 Bolt kpl.2014 |
54802052000 |
US $26.49 |
||
|
36
|
36
00062030000 Brake fluid dot5.1 0,25l2014 |
00062030000 |
US $14.35 |
||
|
37
|
37
54802037000 Protection cap 062014 |
54802037000 |
US $18.77 |
||
|
38
|
38
54802038100 Lever screw cpl. 062014 |
54802038100 |
US $36.02 |
||
|
39
|
39
54802046000 Push rod cpl.2014 |
54802046000 |
US $20.01 |
||
|
40
|
40
58012040150 Clamp for mirror '94'94 |
58012040150 |
US $18.90 |
||
|
42
|
42
58012040000 Rear mirror l/s'94 |
58012040000 |
US $41.60 |
||
|
42
|
42
58012140000 Rear mirror r/s'94 |
58012140000 |
US $42.67 |
||
|
43
|
43
58412040000 Mirror l/s 98As Required |
58412040000 |
US $37.33 |
||
|
43
|
43
58412041000 Mirror r/s 98As Required |
58412041000 |
US $37.33 |
||
|
44
|
44
58412040050 Support for mirror lc4 '98'98 |
58412040050 |
US $18.41 |
||
|
46
|
46
54802005100 Clamp cpl. 06'98 |
54802005100 |
US $23.49 |
||
|
63
|
63
54832063000 Clutch pipe 06'98 |
54832063000 |
US $87.04 |
||
|
92
|
92
78102091000 Throttle Cable 4T'98 |
78102091000 |
US $73.51 |
||
| replacement | |||||
|
92
|
92
78102091100 Throttle Cable 4T'98 |
78102091100 |
US $60.42 |
||
