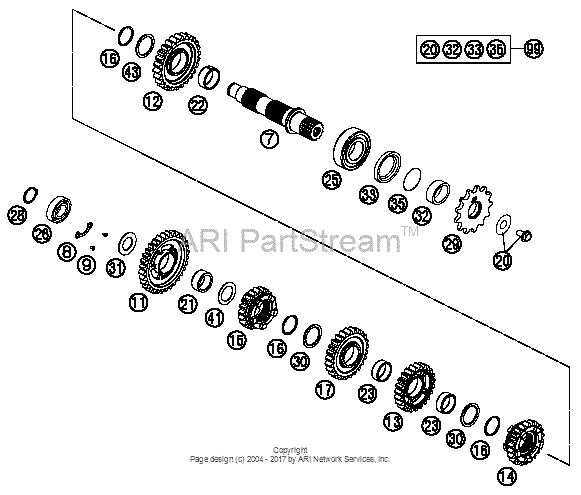

Transmission Ii - Countershaft Diagram KTM 350 350 EXC-F
- Year
- 2014
- Sales region
- US/EU
- Engine Capacity
- 350
- Model
- 350 EXC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
77233110000 Output Shaft11-14, As Required |
77233110000 |
US $128.96 |
||
|
8
|
8
78033132000 Tab washer bearing count.shaft11-14, As Required |
78033132000 |
US $4.15 |
||
|
9
|
9
0019050106 Int. Torx Flat Head M5X1011-14, As Required |
0019050106 |
US $0.61 |
||
| replacement | |||||
|
9
|
9
0019050106S Int. Torx Flat Head M5X10 10.911-14, As Required |
0019050106S |
US $0.27 |
||
|
11
|
11
54833211000 Idler Gear 1.g. Z=3211-14, As Required |
54833211000 |
US $181.54 |
||
| replacement | |||||
|
11
|
11
79333111000 Idler Gear 1. G, Z=3211-14, As Required |
79333111000 |
US $237.49 |
||
|
12
|
12
54833212000 Idler Gear 2 Nd. Gear T=2611-14, As Required |
54833212000 |
US $87.26 |
||
|
13
|
13
54833214000 Idler Gear 4.g, Z=2311-14, As Required |
54833214000 |
US $90.95 |
||
|
14
|
14
54833215000 Sliding Gear 5Th Z=2211-14, As Required |
54833215000 |
US $93.14 |
||
|
15
|
15
54833216000 Sliding Gear 6.g., Z=2011-14, As Required |
54833216000 |
US $109.14 |
||
|
16
|
16
0417024000 Circlip Ws2411-14, As Required |
0417024000 |
US $0.95 |
||
|
17
|
17
54833213000 Idler Gear 3.g., Z= 2511-14, As Required |
54833213000 |
US $91.51 |
||
|
20
|
20
59033034044 Screw 10.9+Spring Washer11-14, As Required |
59033034044 |
US $9.01 |
||
|
21
|
21
0405202612 Needle bearing k 20x26x1211-14, As Required |
0405202612 |
US $10.90 |
||
|
22
|
22
0405242812 Neddle bear. k24x28x11,9 div.11-14, As Required |
0405242812 |
US $6.12 |
||
|
23
|
23
0405222611 Needle bear.k 22x26x10 divided11-14, As Required |
0405222611 |
US $12.41 |
||
|
25
|
25
49030023000 Cyl.roll Bearing Nj20511-14, As Required |
49030023000 |
US $67.86 |
||
|
26
|
26
0625062035 Ball bearing 6203 jr2 c311-14, As Required |
0625062035 |
US $12.95 |
||
|
28
|
28
0471170015 Circlip din 0471-17x1, 511-14, As Required |
0471170015 |
US $0.66 |
||
|
29
|
29
50033029013
Sprocket 13T
As Required |
50033029013 |
— | ||
| replacement | |||||
|
29
|
29
79233029013 Sprocket 13TAs Required |
79233029013 |
US $33.08 |
||
|
29
|
29
50033029014
Front sprocket 14-t
As Required |
50033029014 |
— | ||
| replacement | |||||
|
29
|
29
79233029014 Sprocket 14TAs Required |
79233029014 |
US $34.80 |
||
|
30
|
30
54833043000 Stop Disc 25X0,8X30X30X7HAs Required |
54833043000 |
US $4.32 |
||
|
31
|
31
77233020000 Stop Disk 17,2X30X1,3As Required |
77233020000 |
US $3.42 |
||
|
32
|
32
54633014100
Spacer bushing 12mm
As Required |
54633014100 |
— | ||
| replacement | |||||
|
32
|
32
76633030012 Spacer bushing 12mmAs Required |
76633030012 |
US $15.16 |
||
|
33
|
33
0760324571 Shaft seal ring 32x45x7 bslnbrAs Required |
0760324571 |
US $6.61 |
||
|
35
|
35
0770020220 O-ring 25,12x1,78 nbr70As Required |
0770020220 |
US $3.89 |
||
|
41
|
41
54833080000 Stop Disc 20,2X30X1As Required |
54833080000 |
US $2.35 |
||
|
43
|
43
54833044000 Stop Disc 25X31X1,5As Required |
54833044000 |
US $3.71 |
||
|
99
|
99
00050000941 Counter Shaft Rep.kit 4 StrokeAs Required |
00050000941 |
US $36.26 |
||
