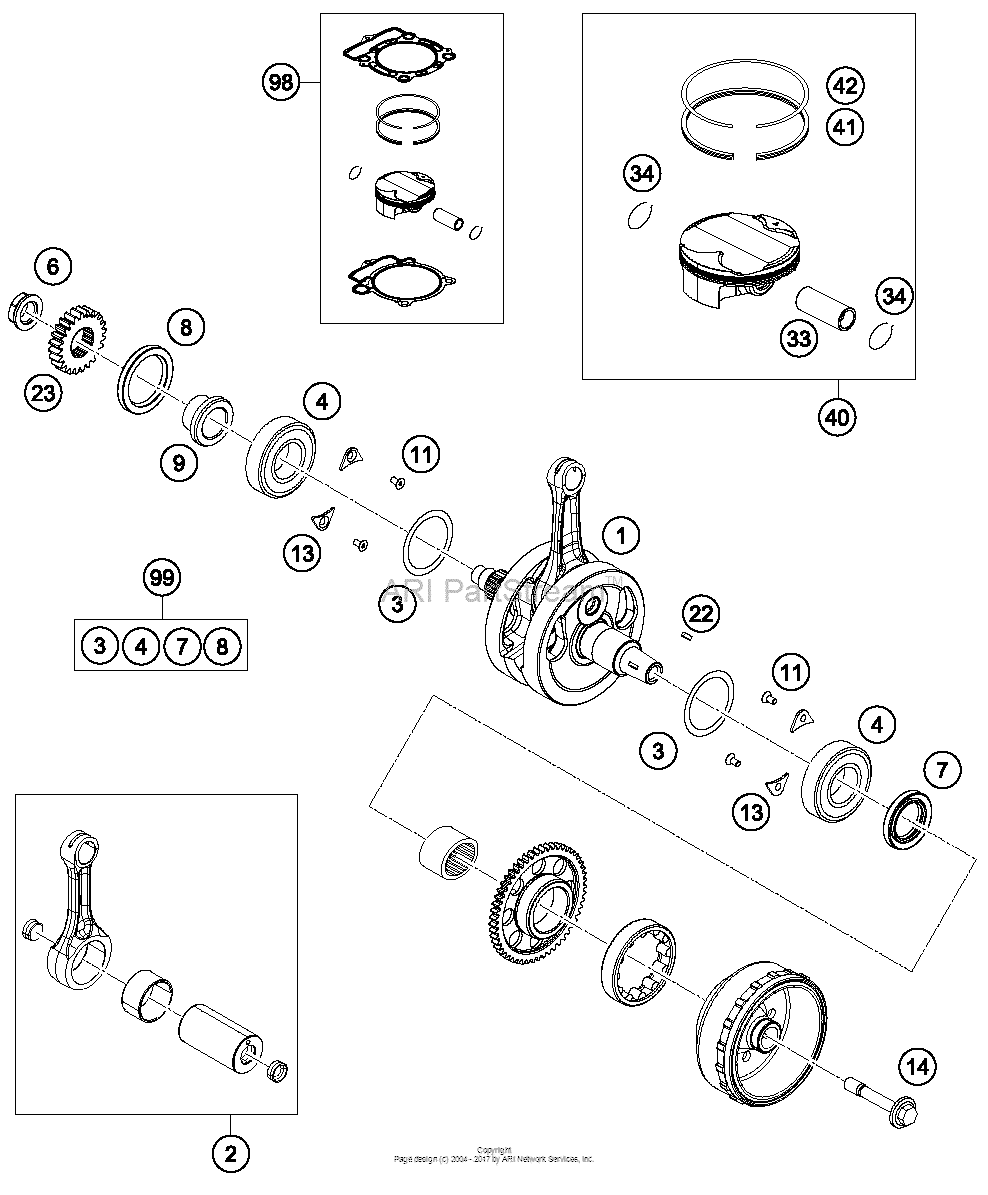

Crankshaft, Piston Diagram KTM 350 350 EXC-F
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 350
- Model
- 350 EXC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77530018200 Crankshaft Cpl2000 |
77530018200 |
US $1,048.83 |
||
|
2
|
2
77830015044 Connecting Rod Repair Set2000 |
77830015044 |
US $448.43 |
||
|
3
|
3
0988324510 Thrust Washer 988St 32X0,1As Required |
0988324510 |
US $0.27 |
||
|
3
|
3
0988324515 Thrust Washer 988St 32X0,15As Required |
0988324515 |
US $0.27 |
||
|
3
|
3
0988324530 Thrust Washer 988St 32X0,30As Required |
0988324530 |
US $0.22 |
||
|
4
|
4
77330082200 Bearing Nj 206 Ecp/hn3C4Hva624As Required |
77330082200 |
US $85.58 |
||
|
6
|
6
77230029000 Nut primary wheelAs Required |
77230029000 |
US $14.99 |
||
| replacement | |||||
|
6
|
6
0910001801000S Nut primary wheelAs Required |
0910001801000S |
US $14.99 |
||
|
7
|
7
0760304772 Sh.seal Ring 30X47X7 Bsl VitonAs Required |
0760304772 |
US $26.23 |
||
|
8
|
8
0760405560 Shaft seal ring a40x55x6 vitonAs Required |
0760405560 |
US $13.04 |
||
|
9
|
9
77232022000 Spacer Bushing Primary GearAs Required |
77232022000 |
US $22.27 |
||
|
11
|
11
0019050106S Int. Torx Flat Head M5X10 10.9As Required |
0019050106S |
US $0.27 |
||
|
13
|
13
75030085000 Retaining plate f. cs bearingAs Required |
75030085000 |
US $4.08 |
||
|
14
|
14
77339010100 Flywheel screwAs Required |
77339010100 |
US $4.66 |
||
|
22
|
22
0888030037 Woodruff key din6888-3x3,7As Required |
0888030037 |
US $0.58 |
||
|
23
|
23
77232023024 Primary Gear 24TAs Required |
77232023024 |
US $83.40 |
||
|
33
|
33
77230133000 Piston Pin 350As Required |
77230133000 |
US $53.60 |
||
|
34
|
34
77230174000 CirclipAs Required |
77230174000 |
US $2.47 |
||
|
40
|
40
77530107100I
Piston I Cpl. 350
As Required |
77530107100I |
— | ||
|
40
|
40
77530107100II
Piston Ii Cpl. 350
As Required |
77530107100II |
— | ||
|
41
|
41
77230032100 Oil Scraper RingAs Required |
77230032100 |
US $52.77 |
||
|
42
|
42
77230030000 Compressionring 350As Required |
77230030000 |
US $43.23 |
||
|
98
|
98
77530007010I
Piston Kit Gr. I 350 Exc-F 14
As Required |
77530007010I |
— | ||
|
98
|
98
77530007010II
Piston Kit Gr. Ii 350 Exc-F 14
As Required |
77530007010II |
— | ||
|
99
|
99
00050002311 Crankshaft Rep. Kit Sx-F 13-1513-15, As Required |
00050002311 |
US $177.40 |
||
