Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 77536020000 Cylinder Head Cpl 13-15, As Required	77536020000	US $776.53
2	2 77830036085 Cylinder Head Gasket 13-15, As Required	77830036085	US $74.22
3	3 7723605200033 Valve Cover 13-15, As Required	7723605200033	US $48.14
4	4 77236053000 Valve Cover Gasket 13-15, As Required	77236053000	US $16.98
5	5 77336054150 Valve cover screw 13-15, As Required	77336054150	US $6.61
6	6 77036054150 Rubber Gasket For Screw 13-15, As Required	77036054150	—
	replacement
6	6 77036054250 Rubber Gasket For Screw 13-15, As Required	77036054250	US $5.20
7	7 77236025001 Valve Guide Intakt 13-15, As Required	77236025001	US $29.31
8	8 77236075000 Insert spark-plug shaft 13-15, As Required	77236075000	US $34.19
9	9 77336053050 Gasket spark-plug shaft 13-15, As Required	77336053050	US $7.45
10	10 0770260015 O-ring 1,5x26 13-15, As Required	0770260015	US $3.89
11	11 77330067142 Hh collar screw m7x1x42 13-15, As Required	77330067142	US $2.01
12	12 07700900151 O-Ring 9X1,5 V80 Sh 13-15, As Required	07700900151	US $1.41
13	13 77236080000 Screw Plug 13-15, As Required	77236080000	US $6.95
	replacement
13	13 77236080100 Screw Plug 13-15, As Required	77236080100	US $2.69
14	14 77336088210 Collar nut m10x1,25 sw13 13-15, As Required	77336088210	US $1.56
15	15 77336089010 Washer 19x10,5x2,5 13-15, As Required	77336089010	US $3.13
16	16 77230044000 Stud screw m10x1,25 13-15, As Required	77230044000	US $8.89
17	17 60030063050 Oil jet 50 05 13-15, As Required	60030063050	US $7.92
18	18 58038022000 Cu-Seal Ring Din7603-12X18X1,5 13-15, As Required	58038022000	US $1.97
19	19 0908120153 Plug din0908-m12x1,5 13-15, As Required	0908120153	US $3.81
21	21 77236044000 Connection Rubber Efi 13-15, As Required	77236044000	US $38.22
22	22 61036047000 Hose clamp gemi 63mm 05 13-15, As Required	61036047000	US $7.46
23	23 0402050980 Needle roller din5402 5x9,8 13-15, As Required	0402050980	US $0.80
24	24 0770100020 O-ring 10,00x2,00 silcone 13-15, As Required	0770100020	US $2.02
25	25 60011252000 Temperat.-sensor water lc8 02 13-15, As Required	60011252000	US $38.01
26	26 59030296000 Screw plug 13-15, As Required	59030296000	US $5.49
27	27 58030010200 Screw In Nozzle M20X1,5 13-15, As Required	58030010200	US $8.82
28	28 77236041000 Gasket Exhaust Flange 13-15, As Required	77236041000	US $11.71
29	29 77236139000 Engineflange 13-15, As Required	77236139000	US $42.98
30	30 0025060166 Hh collar screw m6x16 tx30 TX30	0025060166	US $2.23
31	31 77336088106 Collar nut m6x1 sw8 TX30	77336088106	US $12.50
32	32 0125060003 Washer Din0125-A 6,4 TX30	0125060003	US $0.37
33	33 77330043000 Stud screw m6 TX30	77330043000	US $11.46
34	34 77538087000 Engine Breather Tube TX30	77538087000	US $9.57
35	35 58431082100 Ydnac-clamp 10173 (16mm) '98 '98	58431082100	US $0.73
37	37 60036023100 Vacuum conection m6/0,5mm '98	60036023100	US $28.76
40	40 77236048000 Hose Clamp Gemi 58Mm '98	77236048000	US $12.09

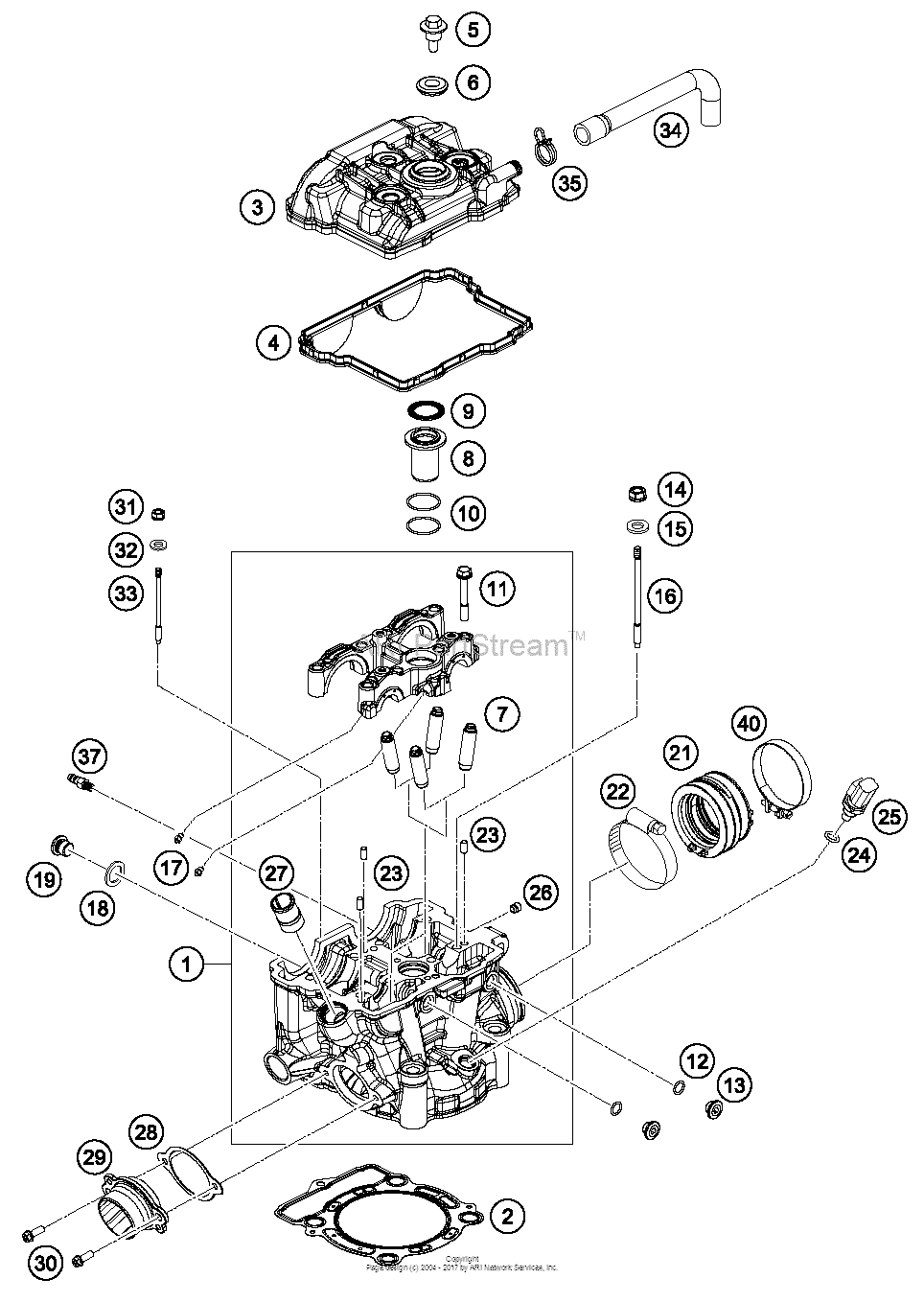

Cylinder Head Diagram KTM 350 350 EXC-F US/EU 18088549-939816

Cylinder Head Diagram KTM 350 350 EXC-F US/EU 18088549-939816
