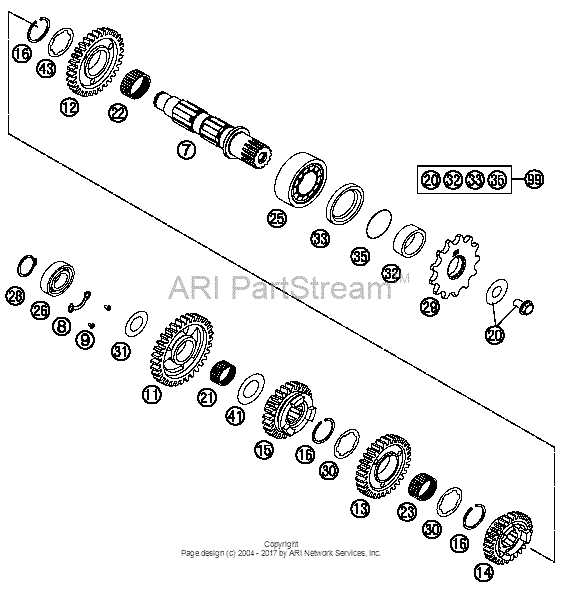

Transmission Ii - Countershaft Diagram KTM 350 350 XC-F
- Year
- 2014
- Sales region
- US/EU
- Engine Capacity
- 350
- Model
- 350 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
77233010000 CountershaftAs Required, 11-13 |
77233010000 |
US $116.79 |
||
|
8
|
8
78033132000 Tab washer bearing count.shaftAs Required, 11-13 |
78033132000 |
US $4.15 |
||
|
9
|
9
0019050106 Int. Torx Flat Head M5X10As Required, 11-13 |
0019050106 |
US $0.61 |
||
| replacement | |||||
|
9
|
9
0019050106S Int. Torx Flat Head M5X10 10.9As Required, 11-13 |
0019050106S |
US $0.27 |
||
|
11
|
11
54833011000 Idler gear 1st g. 28-t "1s28"As Required, 11-13 |
54833011000 |
US $97.53 |
||
| replacement | |||||
|
11
|
11
54833011100 Idler Gear 1 StAs Required, 11-13 |
54833011100 |
US $88.52 |
||
|
12
|
12
54833012100 Idler gear 2nd g. 26-t "2s26"As Required, 11-13 |
54833012100 |
US $84.58 |
||
|
13
|
13
54833013000 Idler gear 3rd g. 24-t "3s24"As Required, 11-13 |
54833013000 |
US $89.15 |
||
|
14
|
14
54833014000 Sliding gear 4th g.24-t "4s24"As Required, 11-13 |
54833014000 |
US $100.33 |
||
|
15
|
15
54833015000 Sliding gear 5th g.21-t "5s21"As Required, 11-13 |
54833015000 |
US $87.96 |
||
|
16
|
16
77033022000 Axial-circlip 25x1,65As Required, 11-13 |
77033022000 |
US $3.11 |
||
|
20
|
20
59033034044 Screw 10.9+Spring WasherAs Required, 11-13 |
59033034044 |
US $9.01 |
||
|
21
|
21
0405202413 Needle bear. k20x24x13As Required, 11-13 |
0405202413 |
US $11.29 |
||
|
22
|
22
0405242812 Neddle bear. k24x28x11,9 div.As Required, 11-13 |
0405242812 |
US $6.12 |
||
|
23
|
23
0405222613 Needle Bear. K 22X26X13 TnAs Required, 11-13 |
0405222613 |
US $9.52 |
||
|
25
|
25
49030023000 Cyl.roll Bearing Nj205As Required, 11-13 |
49030023000 |
US $67.86 |
||
|
26
|
26
0625062035 Ball bearing 6203 jr2 c3As Required, 11-13 |
0625062035 |
US $12.95 |
||
|
28
|
28
0471170015 Circlip din 0471-17x1, 5As Required, 11-13 |
0471170015 |
US $0.66 |
||
|
29
|
29
50033029013
Sprocket 13T
As Required |
50033029013 |
— | ||
| replacement | |||||
|
29
|
29
79233029013 Sprocket 13TAs Required |
79233029013 |
US $33.08 |
||
|
29
|
29
50033029014
Front sprocket 14-t
As Required |
50033029014 |
— | ||
| replacement | |||||
|
29
|
29
79233029014 Sprocket 14TAs Required |
79233029014 |
US $34.80 |
||
|
30
|
30
59033030000 Stop disc 25,2x32x1,5As Required |
59033030000 |
US $1.75 |
||
|
31
|
31
56033030000 Stop Disc 17,2X30X1As Required |
56033030000 |
US $3.83 |
||
|
32
|
32
54633014100
Spacer bushing 12mm
As Required |
54633014100 |
— | ||
| replacement | |||||
|
32
|
32
76633030012 Spacer bushing 12mmAs Required |
76633030012 |
US $15.16 |
||
|
33
|
33
0760324571 Shaft seal ring 32x45x7 bslnbrAs Required |
0760324571 |
US $6.61 |
||
|
35
|
35
0770020220 O-ring 25,12x1,78 nbr70As Required |
0770020220 |
US $3.89 |
||
|
41
|
41
59033080000 Shim 20X32X1As Required |
59033080000 |
US $1.73 |
||
|
43
|
43
50333043000 Stop disc 25,2x32x1As Required |
50333043000 |
US $4.86 |
||
|
99
|
99
00050000941 Counter Shaft Rep.kit 4 StrokeAs Required |
00050000941 |
US $36.26 |
||
