Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 77232001173 Outer Clutch Hub 13	77232001173	US $230.20
2	2 77232002000 Inner clutch hub 13	77232002000	—
	replacement
2	2 77232002100 Inner Clutch Hub 13	77232002100	US $87.47
3	3 77232003000 Pressure plate 13	77232003000	US $41.04
4	4 77232004000 Driving sleeve d=7,95 l=38 13	77232004000	US $4.40
9	9 59032010200 Intermediate Disc 1,4Mm 2002 2002	59032010200	US $9.96
10	10 59032010100 Intermediate disc 1mm 2002 2002	59032010100	US $8.94
11	11 59032011100 Lining disc 2mm 04 04	59032011100	US $24.02
	replacement
11	11 79532011000 Lining Disc 1,95Mm 04	79532011000	US $24.02
13	13 77232015000 Inner ring 04	77232015000	US $29.27
16	16 77230029000 Nut primary wheel 04	77230029000	US $14.99
	replacement
16	16 0910001801000S Nut primary wheel 04	0910001801000S	US $14.99
18	18 77232018000 Sheet metal lock 04	77232018000	US $8.26
19	19 77232019000 Hexagon nut m18x1,5 04	77232019000	US $5.85
20	20 77232009100 Washer 21,8 x 37 x 3 04	77232009100	US $8.53
23	23 77232023024 Primary Gear 24T 04	77232023024	US $83.40
24	24 77232062000 Gasket F. Output Cylinder 04	77232062000	US $2.58
25	25 0770300015 O-ring 30,00x1,50 nbr 70 04	0770300015	US $3.26
30	30 78132010010 Clutch Kit 350 Sx-F 11-15 11-14	78132010010	US $261.04
50	50 59032006000 Spring Retainer 6,2X12X18X3,6 11-14	59032006000	US $1.67
53	53 77232054000 Push rod 11-14	77232054000	US $14.33
54	54 78032057000 Pressure piece 11-14	78032057000	US $24.36
71	71 0025060166 Hh collar screw m6x16 tx30 TX30	0025060166	US $2.23
72	72 0025060356 Hh collar screw m6x35 tx30 TX30	0025060356	US $6.15
73	73 0025060256 Hh collar screw m6x25 tx30 TX30	0025060256	US $2.45
75	75 50329050000 Vent Injektion Hydr. Clutch TX30	50329050000	US $50.78
80	80 52332005000 Clutch spring 2,4x40 200'98 98	52332005000	US $7.72
	replacement
80	80 52332005200 Clutch Spring 98	52332005200	US $2.23
81	81 77232066000 Piston cpl. 98	77232066000	US $50.75
82	82 77232061044 Output cylinder cpl. 98	77232061044	US $115.35
85	85 54832067000 O-ring 98	54832067000	US $2.69
86	86 54832069000 Pressure spring 98	54832069000	US $12.09
87	87 42013226000 Cu-Seal Ring Din7603-10X16X1 98	42013226000	US $4.10
88	88 62513020000 Bleeder Screw Cpl. 05 05	62513020000	US $30.16
89	89 54832063000 Clutch pipe 06 06	54832063000	US $87.04
95	95 56532095000 Needle bearing k26x30x22zw.kse 06	56532095000	US $21.51
96	96 78032057044 Pressure piece cpl. 08 08	78032057044	US $22.34
97	97 54637097200 Axial Needle Bearing Axk 1226 08	54637097200	US $10.06
98	98 54637098200 Axial washer as1226 12x26x1 08	54637098200	US $5.02
99	99 0993012000 Circlip Din7993-Rw12 08	0993012000	US $2.11

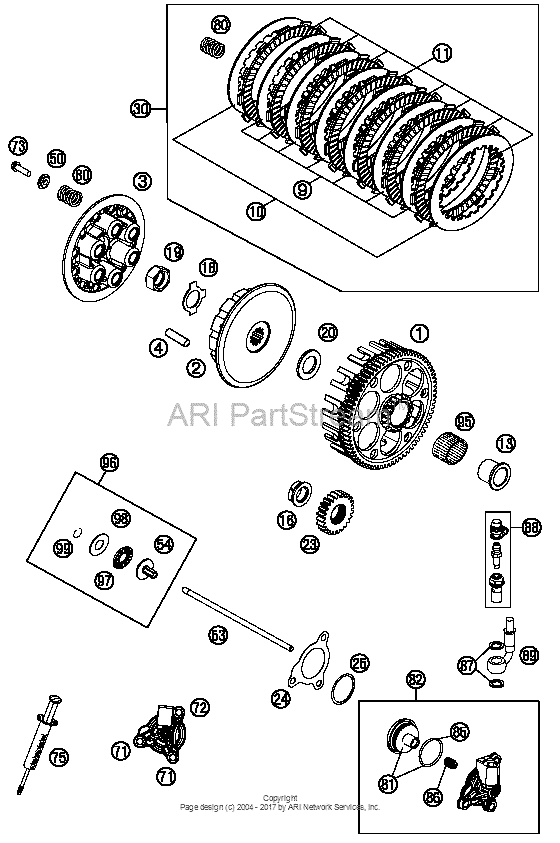

Clutch Diagram KTM 350 350 XC-F US/EU 18089193-939847

Clutch Diagram KTM 350 350 XC-F US/EU 18089193-939847
