Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 77839005044 Rotor Efi Cpl TX30	77839005044	US $693.36
2	2 77339010100 Flywheel screw TX30	77339010100	US $4.66
3	3 77530040000 Ignition Cover Gasket TX30	77530040000	US $16.80
4	4 0012040303 Ah Screw Din6912 M4X30 TX30	0012040303	US $1.38
5	5 77239004000 Stator TX30	77239004000	US $199.16
6	6 0025050166 Hh collar screw m5x16 tx30 TX30	0025050166	US $2.60
7	7 77230002050 Wiring Retaining Bracket TX30	77230002050	US $10.37
8	8 0025060166 Hh collar screw m6x16 tx30 TX30	0025060166	US $2.23
9	9 80030058060 Oil jet "60" m4 TX30	80030058060	US $10.27
10	10 7723000200015 Ignition Cover TX30	7723000200015	US $161.62
11	11 0913050063 Thread Pin Din 913 M5X6 TX30	0913050063	US $0.39
12	12 0402040980 Needle Rol.din5402 Nrb 4X9,8 TX30	0402040980	US $1.77
13	13 77240043000 Gasket torque limiter TX30	77240043000	US $2.84
14	14 7723000201015 Cover Torque Limiter TX30	7723000201015	US $32.57
15	15 0025060256 Hh collar screw m6x25 tx30 TX30	0025060256	US $2.45
16	16 07700240251 O-ring 24x2,5 viton TX30	07700240251	US $3.96
17	17 7723000206030 Screw Plug M24X1,5 TX30	7723000206030	—
	replacement
17	17 7723000216030 Screw Plug M24X1,5 TX30	7723000216030	US $39.24
18	18 77239090000 Spark plug connector TX30	77239090000	US $32.98
19	19 77239093000 Plug ngk lmar9ai - 8 TX30	77239093000	US $23.63
20	20 0025060506 Hh collar screw m6x50 tx30 TX30	0025060506	US $3.30
21	21 0025060306 Hh collar screw m6x30 tx30 TX30	0025060306	US $3.96
22	22 58439006000 Ignitioncoil ig3826 kokusan'96 96	58439006000	US $83.22
23	23 0025060406 Hh collar screw m6x40 tx30 TX30	0025060406	US $2.23

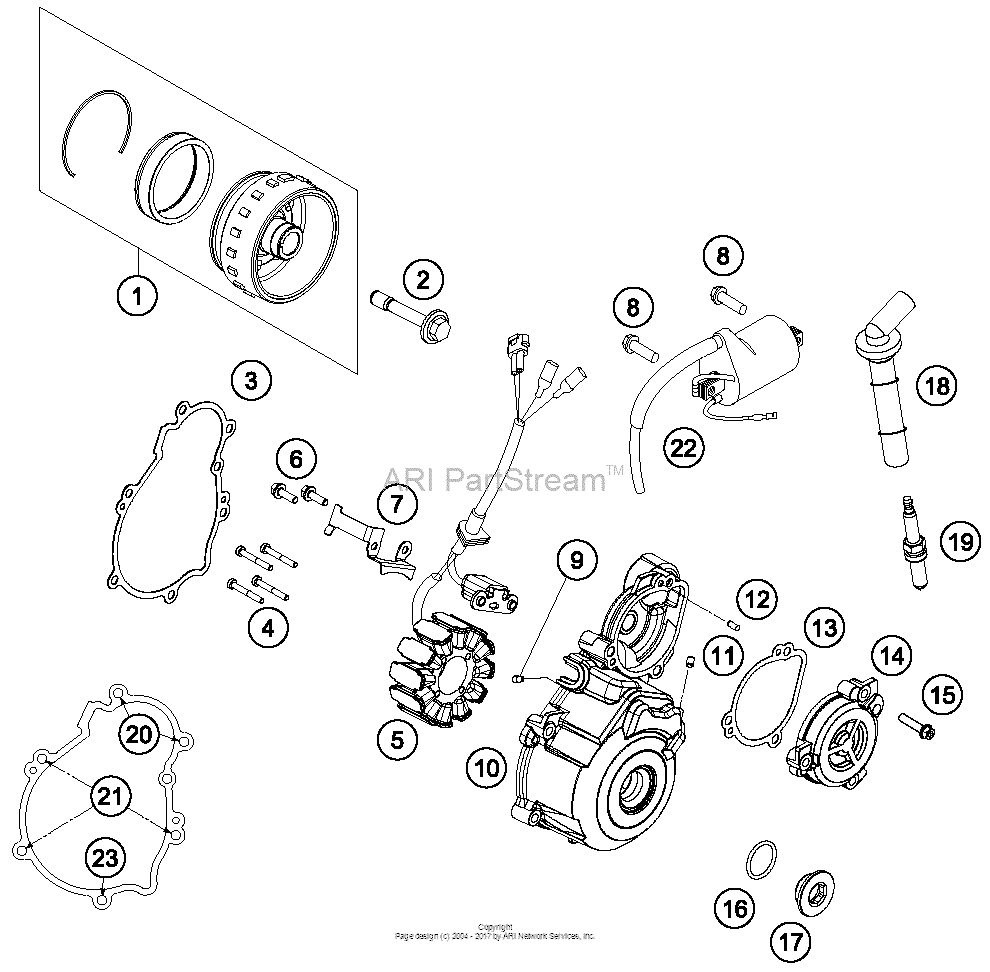

Ignition System Diagram KTM 350 350 XC-F US/EU 18089201-939847

Ignition System Diagram KTM 350 350 XC-F US/EU 18089201-939847
