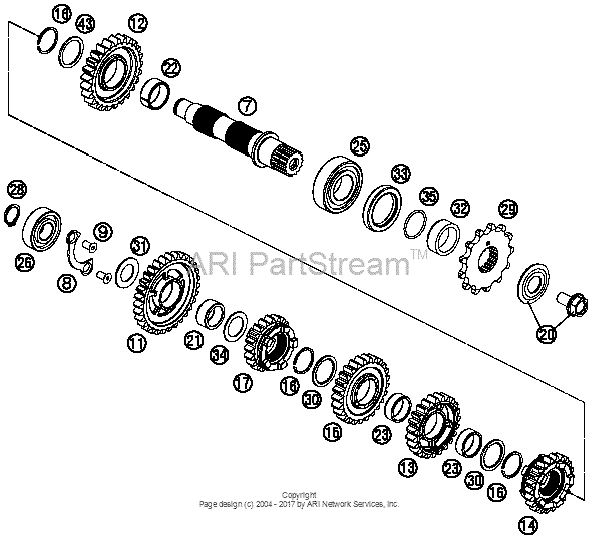

Transmission Ii - Countershaft Diagram KTM 350 350 XC-F
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 350
- Model
- 350 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
77233110000 Output ShaftAs Required |
77233110000 |
US $128.96 |
||
|
8
|
8
78033132000 Tab washer bearing count.shaftAs Required |
78033132000 |
US $4.15 |
||
|
9
|
9
0019050106S Int. Torx Flat Head M5X10 10.9As Required |
0019050106S |
US $0.27 |
||
|
11
|
11
54833311000 Idler Gear 1, Z=31As Required |
54833311000 |
US $90.36 |
||
|
12
|
12
54833312000 Idler Gear 2. Gear, 25As Required |
54833312000 |
US $82.21 |
||
|
13
|
13
54833214000 Idler Gear 4.g, Z=23As Required |
54833214000 |
US $90.95 |
||
|
14
|
14
54833215000 Sliding Gear 5Th Z=22As Required |
54833215000 |
US $93.14 |
||
|
15
|
15
54833213000 Idler Gear 3.g., Z= 25As Required |
54833213000 |
US $91.51 |
||
|
16
|
16
0417024000 Circlip Ws24As Required |
0417024000 |
US $0.95 |
||
|
17
|
17
54833216000 Sliding Gear 6.g., Z=20As Required |
54833216000 |
US $109.14 |
||
|
20
|
20
59033034044 Screw 10.9+Spring WasherAs Required |
59033034044 |
US $9.01 |
||
|
21
|
21
0405202612 Needle bearing k 20x26x12As Required |
0405202612 |
US $10.90 |
||
|
22
|
22
0405242812 Neddle bear. k24x28x11,9 div.As Required |
0405242812 |
US $6.12 |
||
|
23
|
23
0405222611 Needle bear.k 22x26x10 dividedAs Required |
0405222611 |
US $12.41 |
||
|
25
|
25
49030023000 Cyl.roll Bearing Nj205As Required |
49030023000 |
US $67.86 |
||
|
26
|
26
0625062035 Ball bearing 6203 jr2 c3As Required |
0625062035 |
US $12.95 |
||
|
28
|
28
0471170015 Circlip din 0471-17x1, 5As Required |
0471170015 |
US $0.66 |
||
|
29
|
29
50033029013
Sprocket 13T
As Required |
50033029013 |
— | ||
| replacement | |||||
|
29
|
29
79233029013 Sprocket 13TAs Required |
79233029013 |
US $33.08 |
||
|
29
|
29
50033029014
Front sprocket 14-t
As Required |
50033029014 |
— | ||
| replacement | |||||
|
29
|
29
79233029014 Sprocket 14TAs Required |
79233029014 |
US $34.80 |
||
|
30
|
30
54833043000 Stop Disc 25X0,8X30X30X7HAs Required |
54833043000 |
US $4.32 |
||
|
31
|
31
77233020000 Stop Disk 17,2X30X1,3As Required |
77233020000 |
US $3.42 |
||
|
32
|
32
54633014100
Spacer bushing 12mm
As Required |
54633014100 |
— | ||
| replacement | |||||
|
32
|
32
76633030012 Spacer bushing 12mmAs Required |
76633030012 |
US $15.16 |
||
|
33
|
33
0760324571 Shaft seal ring 32x45x7 bslnbrAs Required |
0760324571 |
US $6.61 |
||
|
34
|
34
54833080000 Stop Disc 20,2X30X1As Required |
54833080000 |
US $2.35 |
||
|
35
|
35
0770020220 O-ring 25,12x1,78 nbr70As Required |
0770020220 |
US $3.89 |
||
|
43
|
43
54833044000 Stop Disc 25X31X1,5As Required |
54833044000 |
US $3.71 |
||
