Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 79230018000 Crankshaft Cpl As Required	79230018000	US $1,179.04
	replacement
1	1 79230018100 Crankshaft Cpl As Required	79230018100	US $1,087.81
2	2 79230015044 Connecting Rod Repair Kit As Required	79230015044	US $556.75
3	3 0988324510 Thrust Washer 988St 32X0,1 As Required	0988324510	US $0.27
3	3 0988324515 Thrust Washer 988St 32X0,15 As Required	0988324515	US $0.27
3	3 0988324530 Thrust Washer 988St 32X0,30 As Required	0988324530	US $0.22
4	4 77330082200 Bearing Nj 206 Ecp/hn3C4Hva624 As Required	77330082200	US $85.58
6	6 77230029000 Nut primary wheel As Required	77230029000	US $14.99
	replacement
6	6 0910001801000S Nut primary wheel As Required	0910001801000S	US $14.99
7	7 0760304760 Shaft Seal Ring A30X47X6 Viton As Required	0760304760	US $15.08
8	8 0760405561 Shaft Seal Ring A 40X55X6 V As Required	0760405561	US $15.54
9	9 77232022000 Spacer Bushing Primary Gear As Required	77232022000	US $22.27
11	11 0019050106S Int. Torx Flat Head M5X10 10.9 As Required	0019050106S	US $0.27
13	13 75030085000 Retaining plate f. cs bearing As Required	75030085000	US $4.08
14	14 77339010100 Flywheel screw As Required	77339010100	US $4.66
22	22 0888030037 Woodruff key din6888-3x3,7 As Required	0888030037	US $0.58
23	23 79232023024 Primary Gear 24T As Required	79232023024	US $96.56
34	34 79230274000 Circlip Piston Pin As Required	79230274000	US $42.26
40	40 79230207100I Piston I Cpl. 350 As Required	79230207100I	—
40	40 79230207100II Piston Ii Cpl. 350 As Required	79230207100II	—
41	41 77230032100 Oil Scraper Ring As Required	77230032100	US $52.77
42	42 77230030000 Compressionring 350 As Required	77230030000	US $43.23
98	98 00050000231 Piston Kit 350 Sx-F Gr. I As Required	00050000231	US $577.39
98	98 00050000232 Piston Kit 350 Sx-F Gr. Ii As Required	00050000232	US $577.39
99	99 00050002316 Crankshaft Rep. Kit As Required	00050002316	US $111.69

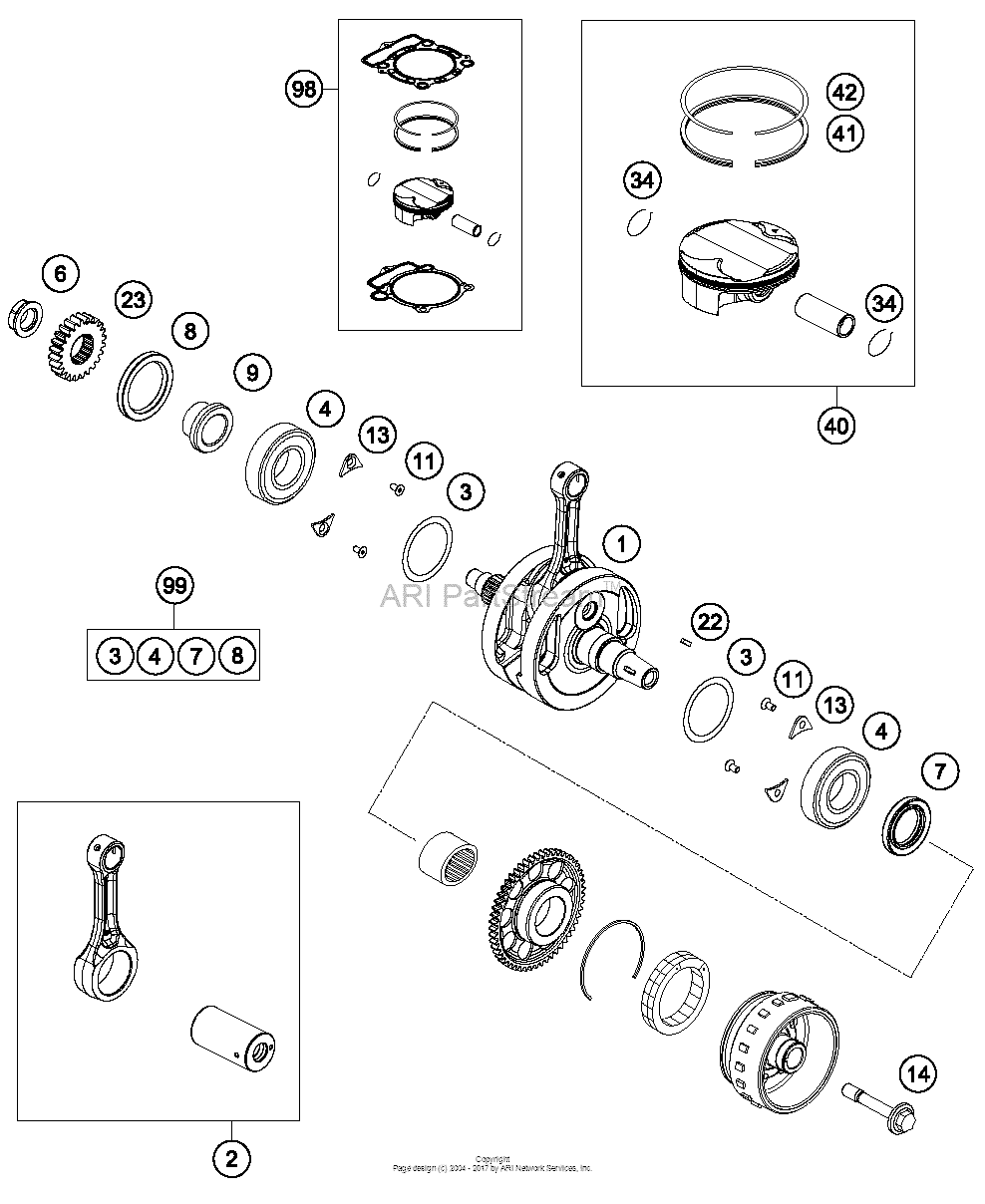

Crankshaft, Piston Diagram KTM 350 350 XC-F US/EU 18089213-939848

Crankshaft, Piston Diagram KTM 350 350 XC-F US/EU 18089213-939848
