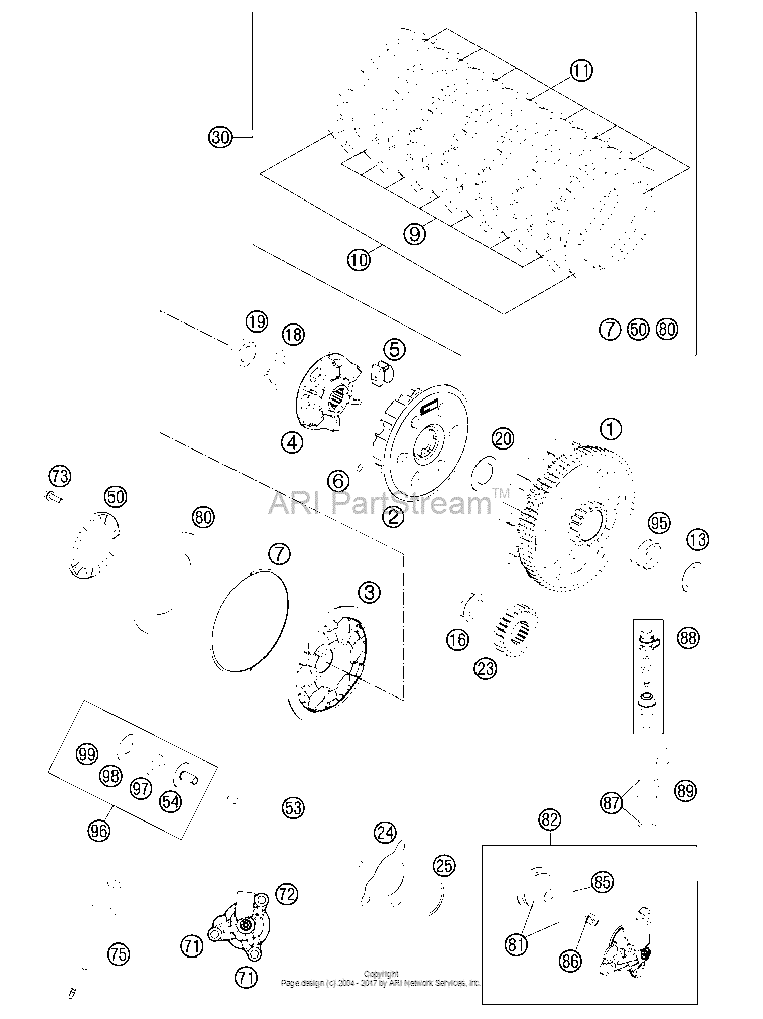

Clutch Diagram KTM 350 350 XCF-W
- Year
- 2013
- Sales region
- US/EU
- Engine Capacity
- 350
- Model
- 350 XCF-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77232001073 Outer clutch cpl.TX30 |
77232001073 |
US $276.06 |
||
|
2
|
2
78132002008
Clutch Hub
TX30 |
78132002008 |
— | ||
| replacement | |||||
|
2
|
2
78132002300 Clutch HubTX30 |
78132002300 |
US $233.27 |
||
|
3
|
3
78132003000 Clutch Pressure CapTX30 |
78132003000 |
US $38.95 |
||
| replacement | |||||
|
3
|
3
78132003100 Clutch Pressure CapTX30 |
78132003100 |
US $33.12 |
||
|
4
|
4
78132002111 HubTX30 |
78132002111 |
US $72.91 |
||
|
5
|
5
78132025100 Damping RubberTX30 |
78132025100 |
US $31.20 |
||
|
6
|
6
78132004000 Sleeve 7,5X33.4TX30 |
78132004000 |
US $2.87 |
||
|
7
|
7
78132013000 Washer 112X118X1.5TX30 |
78132013000 |
US $9.08 |
||
|
9
|
9
59032010200 Intermediate Disc 1,4Mm 20022002 |
59032010200 |
US $9.96 |
||
|
10
|
10
59032010100 Intermediate disc 1mm 20022002 |
59032010100 |
US $8.94 |
||
|
11
|
11
59032011100 Lining disc 2mm 0404 |
59032011100 |
US $24.02 |
||
| replacement | |||||
|
11
|
11
79532011000 Lining Disc 1,95Mm04 |
79532011000 |
US $24.02 |
||
|
13
|
13
77232015000 Inner ring04 |
77232015000 |
US $29.27 |
||
|
16
|
16
77230029000 Nut primary wheel04 |
77230029000 |
US $14.99 |
||
| replacement | |||||
|
16
|
16
0910001801000S Nut primary wheel04 |
0910001801000S |
US $14.99 |
||
|
18
|
18
56532018000 Lock Washer04 |
56532018000 |
US $4.73 |
||
|
19
|
19
0936181505 Hexagon Nut Din0936-M18X1,5 R04 |
0936181505 |
US $7.60 |
||
|
20
|
20
77232009000 Washer 21,8 X 37 X 5,104 |
77232009000 |
US $8.21 |
||
|
23
|
23
77232023024 Primary Gear 24T04 |
77232023024 |
US $83.40 |
||
|
24
|
24
77232062000 Gasket F. Output Cylinder04 |
77232062000 |
US $2.58 |
||
|
25
|
25
0770300015 O-ring 30,00x1,50 nbr 7004 |
0770300015 |
US $3.26 |
||
|
30
|
30
78132010110 Clutch Kit 350 Exc-F 12-1512 |
78132010110 |
US $315.64 |
||
|
50
|
50
78132006100 Spring Ring12 |
78132006100 |
US $39.70 |
||
|
53
|
53
77232054000 Push rod12 |
77232054000 |
US $14.33 |
||
|
54
|
54
78032057000 Pressure piece12 |
78032057000 |
US $24.36 |
||
|
71
|
71
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
72
|
72
0025060356 Hh collar screw m6x35 tx30TX30 |
0025060356 |
US $6.15 |
||
|
73
|
73
0025050166 Hh collar screw m5x16 tx30TX30 |
0025050166 |
US $2.60 |
||
|
75
|
75
50329050000 Vent Injektion Hydr. ClutchTX30 |
50329050000 |
US $50.78 |
||
|
80
|
80
78132005000 Belleville Spring 71X115X1,5 ITX30 |
78132005000 |
US $32.13 |
||
|
81
|
81
77232066000 Piston cpl.TX30 |
77232066000 |
US $50.75 |
||
|
82
|
82
77232061044 Output cylinder cpl.TX30 |
77232061044 |
US $115.35 |
||
|
85
|
85
54832067000 O-ringTX30 |
54832067000 |
US $2.69 |
||
|
86
|
86
54832069000 Pressure springTX30 |
54832069000 |
US $12.09 |
||
|
87
|
87
42013226000 Cu-Seal Ring Din7603-10X16X1TX30 |
42013226000 |
US $4.10 |
||
|
88
|
88
62513020000 Bleeder Screw Cpl. 0505 |
62513020000 |
US $30.16 |
||
|
89
|
89
54832063000 Clutch pipe 0606 |
54832063000 |
US $87.04 |
||
|
95
|
95
56532095000 Needle bearing k26x30x22zw.kse06 |
56532095000 |
US $21.51 |
||
|
96
|
96
78032057044 Pressure piece cpl. 0808 |
78032057044 |
US $22.34 |
||
|
97
|
97
54637097200 Axial Needle Bearing Axk 122608 |
54637097200 |
US $10.06 |
||
|
98
|
98
54637098200 Axial washer as1226 12x26x108 |
54637098200 |
US $5.02 |
||
|
99
|
99
0993012000 Circlip Din7993-Rw1208 |
0993012000 |
US $2.11 |
||
