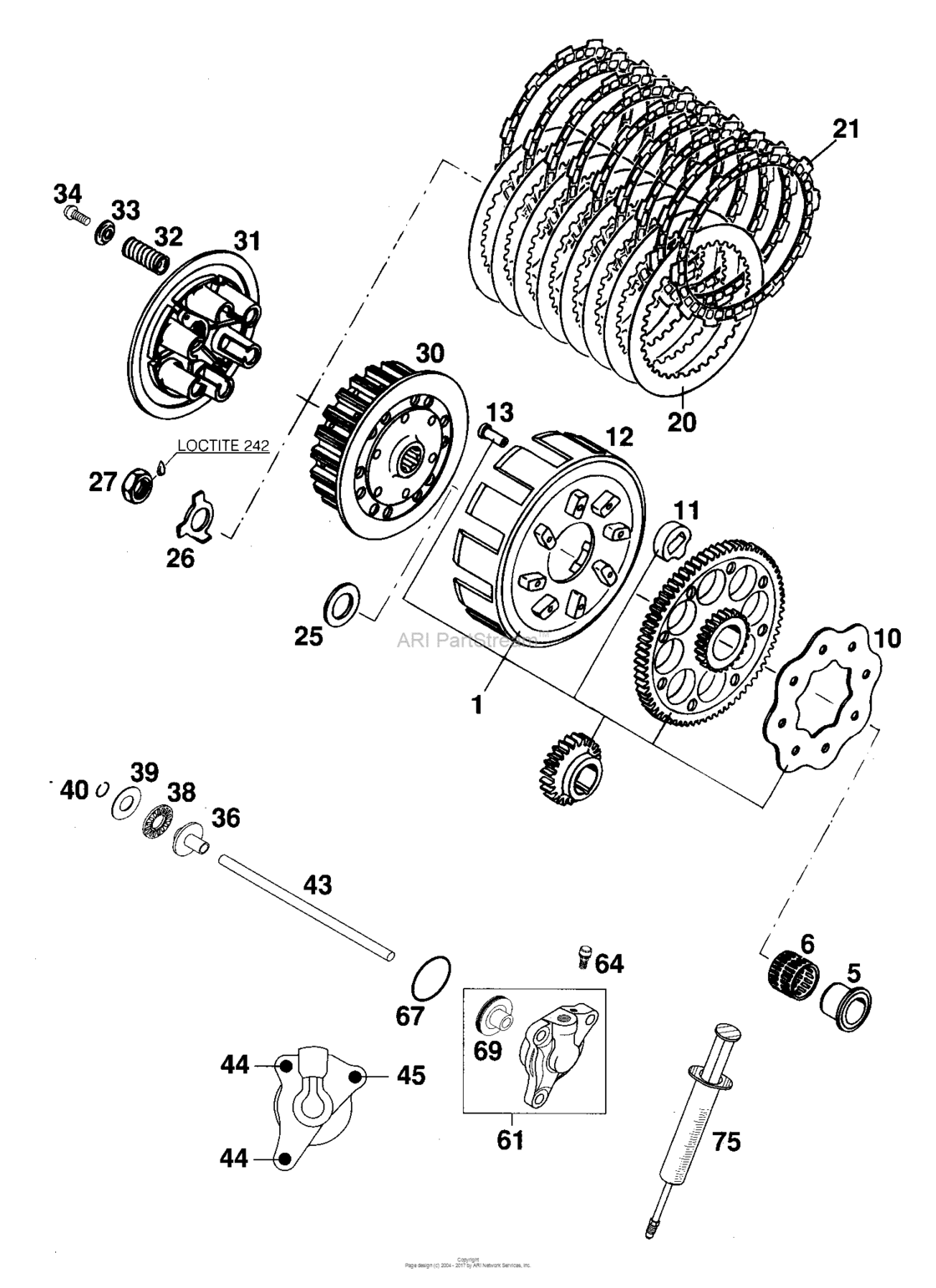

Clutch Diagram KTM 380 380 SX
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 380
- Model
- 380 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54632001272 Outer clutch hub 72t prim. 25t(BLACK) |
54632001272 |
US $526.24 |
||
|
1
|
1
54632001372 Outer clutch hub 72t prim. 26t(BLACK) |
54632001372 |
US $526.24 |
||
|
5
|
5
50332070000 Inner ring with collar(BLACK) |
50332070000 |
US $47.52 |
||
|
6
|
6
56532095000 Needle bearing k26x30x22zw.kse(BLACK) |
56532095000 |
US $21.51 |
||
|
10
|
10
58132028000 Retaining plate(BLACK) |
58132028000 |
US $6.87 |
||
|
11
|
11
58132026000 Damping element(BLACK) |
58132026000 |
US $6.39 |
||
|
12
|
12
54632001200
Outer clutch hub loose
(BLACK) |
54632001200 |
— | ||
|
13
|
13
0733060150 Clutch rivet din7338- 6x15(BLACK) |
0733060150 |
US $7.02 |
||
|
20
|
20
54632012000 Steel Disc(BLACK) |
54632012000 |
US $14.98 |
||
| replacement | |||||
|
20
|
20
54832012100 Steel disc(BLACK) |
54832012100 |
US $8.48 |
||
|
21
|
21
54632011300
Organic Disk
(BLACK) |
54632011300 |
— | ||
| replacement | |||||
|
21
|
21
54832011000 Lining disc fcc 04(BLACK) |
54832011000 |
US $21.69 |
||
|
25
|
25
57532013000 Supportwasher 22,2x35x3 harde.(BLACK) |
57532013000 |
US $22.51 |
||
|
26
|
26
56532018000 Lock Washer(BLACK) |
56532018000 |
US $4.73 |
||
|
27
|
27
0936181505 Hexagon Nut Din0936-M18X1,5 R(BLACK) |
0936181505 |
US $7.60 |
||
|
30
|
30
54632002200 Inner clutch hub(BLACK) |
54632002200 |
US $152.25 |
||
|
31
|
31
54632003000 Pressure cap 250-380 '98(BLACK) |
54632003000 |
US $75.04 |
||
| replacement | |||||
|
31
|
31
54632003100 Pressure cap(BLACK) |
54632003100 |
US $72.10 |
||
|
32
|
32
54632080000 Clutch spring 2,5x43 8,5w(BLACK) |
54632080000 |
US $5.76 |
||
|
33
|
33
58132081000 Spring retainer 6,2 x 20 x 3,2(BLACK) |
58132081000 |
US $1.79 |
||
|
34
|
34
0015060163 Hh Collar Screw M 6X16 Ws=8(BLACK) |
0015060163 |
US $2.23 |
||
|
36
|
36
50332054051
Pressure piece 125-380 '98
(BLACK) |
50332054051 |
— | ||
| replacement | |||||
|
36
|
36
50332154051 Pressure Piece Cpl(BLACK) |
50332154051 |
US $22.83 |
||
|
38
|
38
54637097200 Axial Needle Bearing Axk 1226(BLACK) |
54637097200 |
US $10.06 |
||
|
39
|
39
54637098200 Axial washer as1226 12x26x1(BLACK) |
54637098200 |
US $5.02 |
||
|
39
|
39
54637098300 Axial washer 12,5x25,8x1,5(BLACK) |
54637098300 |
US $1.73 |
||
|
40
|
40
0993012000 Circlip Din7993-Rw12(BLACK) |
0993012000 |
US $2.11 |
||
|
43
|
43
54732054000
Push rod l=199,8mm 250-380 '99
(BLACK) |
54732054000 |
— | ||
|
44
|
44
0015060163 Hh Collar Screw M 6X16 Ws=8(BLACK) |
0015060163 |
US $2.23 |
||
|
45
|
45
0015060203
Hh Collar Screw M 6X20 Ws=8
(BLACK) |
0015060203 |
— | ||
| replacement | |||||
|
45
|
45
0025060206 Hh collar screw m6x20 tx30(BLACK) |
0025060206 |
US $1.97 |
||
|
61
|
61
54732061044
Output Cyl. With Bleeder Screw
(BLACK) |
54732061044 |
— | ||
| replacement | |||||
|
61
|
61
75032061044 Output Cyl. With Bleeder Screw(BLACK) |
75032061044 |
US $230.98 |
||
|
64
|
64
54732064000 Bleeder Screw With Cap(BLACK) |
54732064000 |
US $22.05 |
||
|
67
|
67
0770300015 O-ring 30,00x1,50 nbr 70(BLACK) |
0770300015 |
US $3.26 |
||
|
69
|
69
54632066000
Piston w. o-ring 250-380 '2000
(BLACK) |
54632066000 |
— | ||
| replacement | |||||
|
69
|
69
75032061044 Output Cyl. With Bleeder Screw(BLACK) |
75032061044 |
US $230.98 |
||
|
75
|
75
50329050000 Vent Injektion Hydr. Clutch(BLACK) |
50329050000 |
US $50.78 |
||
