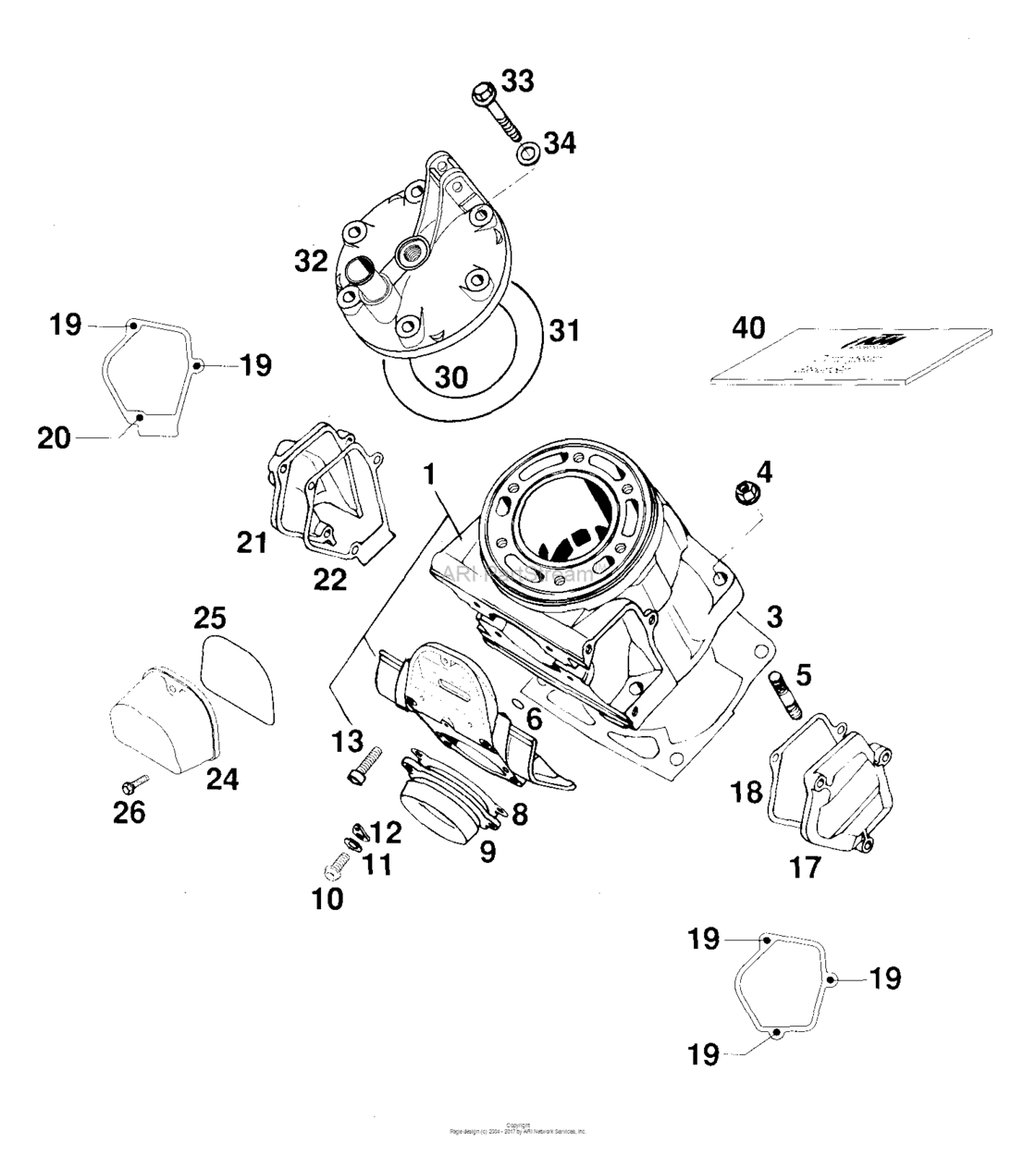

Cylinder Diagram KTM 380 380 SX
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 380
- Model
- 380 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54630405144 Cylinder cpl.w.flange 300'98(BLACK) |
54630405144 |
US $1,366.04 |
||
|
1
|
1
54730005244 Cylinder cpl.w.flange 380'98(BLACK) |
54730005244 |
US $1,120.61 |
||
|
3
|
3
54630030102 Cylinder base gasket 0,20mm'96(BLACK) |
54630030102 |
US $4.98 |
||
|
3
|
3
54630030104 Cylinder base gasket 0,40mm'98(BLACK) |
54630030104 |
US $4.98 |
||
|
3
|
3
54630030105 Cylinder base gasket 0,50mm'96(BLACK) |
54630030105 |
US $5.08 |
||
|
3
|
3
54630030107 Cylinder base gasket 0,75mm'96(BLACK) |
54630030107 |
US $6.89 |
||
|
4
|
4
54630044000 Collar nut m10 ws=13(BLACK) |
54630044000 |
US $2.16 |
||
|
5
|
5
0835100351 Stud din0835-m10x35(BLACK) |
0835100351 |
US $4.32 |
||
|
5
|
5
0835100403 Stud din0835-m10x40(BLACK) |
0835100403 |
US $3.76 |
||
|
6
|
6
0770116241 O-ring 11,3 x2,4 silicon(BLACK) |
0770116241 |
US $1.97 |
||
|
8
|
8
54630046000 Exhaust flange gasket(BLACK) |
54630046000 |
US $9.93 |
||
|
9
|
9
54605073000 Exhaust flange(BLACK) |
54605073000 |
US $59.30 |
||
|
10
|
10
0015060163 Hh Collar Screw M 6X16 Ws=8(BLACK) |
0015060163 |
US $2.23 |
||
|
11
|
11
0137060000
Spring Washer Din0137-B 6
(BLACK) |
0137060000 |
— | ||
| replacement | |||||
|
11
|
11
0137060003 Spring Washer Din0137-B 6(BLACK) |
0137060003 |
US $0.43 |
||
|
12
|
12
51005074000 Retaining plate(BLACK) |
51005074000 |
US $2.11 |
||
|
13
|
13
0912060303 Ah screw din0912-m 6x30(BLACK) |
0912060303 |
US $1.60 |
||
|
17
|
17
54637105000 Control cover l/s(BLACK) |
54637105000 |
US $24.89 |
||
|
18
|
18
54637106000 Gasket for side cover(BLACK) |
54637106000 |
US $3.89 |
||
|
19
|
19
0912050123 Ah screw din0912-m 5x12(BLACK) |
0912050123 |
US $0.85 |
||
|
20
|
20
0912050303 Ah Screw Din0912-M 5X30(BLACK) |
0912050303 |
US $0.66 |
||
|
21
|
21
54637005000 Control cover r/s(BLACK) |
54637005000 |
US $26.21 |
||
|
22
|
22
54637006100 Gasket for control cover(BLACK) |
54637006100 |
US $6.14 |
||
|
24
|
24
54737010000 Flange cover ktc '98(BLACK) |
54737010000 |
US $16.32 |
||
|
25
|
25
0770690020 O-ring 69,00x2,00 nbr 70(BLACK) |
0770690020 |
US $4.15 |
||
|
26
|
26
0015050203
Hh Collar Screw M5X20 Tx30
(BLACK) |
0015050203 |
— | ||
| replacement | |||||
|
26
|
26
0025050206 Hh collar screw m5x20 tx30(BLACK) |
0025050206 |
US $1.33 |
||
|
30
|
30
0770780021
Silic.o-Ring
(BLACK) |
0770780021 |
— | ||
| replacement | |||||
|
30
|
30
0770800021 O-Ring 80,00X2,00 Viton(BLACK) |
0770800021 |
US $7.48 |
||
|
30
|
30
0770840021 0-ring 84,00x2,00 silicon(BLACK) |
0770840021 |
US $4.59 |
||
|
31
|
31
0770114020 O-ring 114,00x2,00 silicone(BLACK) |
0770114020 |
US $7.28 |
||
|
32
|
32
54630306600
Cylinder head "3001" 300'96
(BLACK) |
54630306600 |
— | ||
|
32
|
32
54730006100
Cylinder head "3602"360/380'97
(BLACK) |
54730006100 |
— | ||
|
33
|
33
56530079000
Collar screw m8x42 ws=13 10.9
(BLACK) |
56530079000 |
— | ||
| replacement | |||||
|
33
|
33
56530079000S Hh Collar Screw M8X44 Ws13(BLACK) |
56530079000S |
US $1.60 |
||
|
34
|
34
56530080000 Cu-seal ring 8 x 16 x 1(BLACK) |
56530080000 |
US $2.24 |
||
|
40
|
40
54630097000 Gasket Set Cyl. 250/300 96-06(BLACK) |
54630097000 |
US $98.79 |
||
| replacement | |||||
|
40
|
40
54630097100 Gasket set cyl. 250/300 96-06(BLACK) |
54630097100 |
US $92.72 |
||
