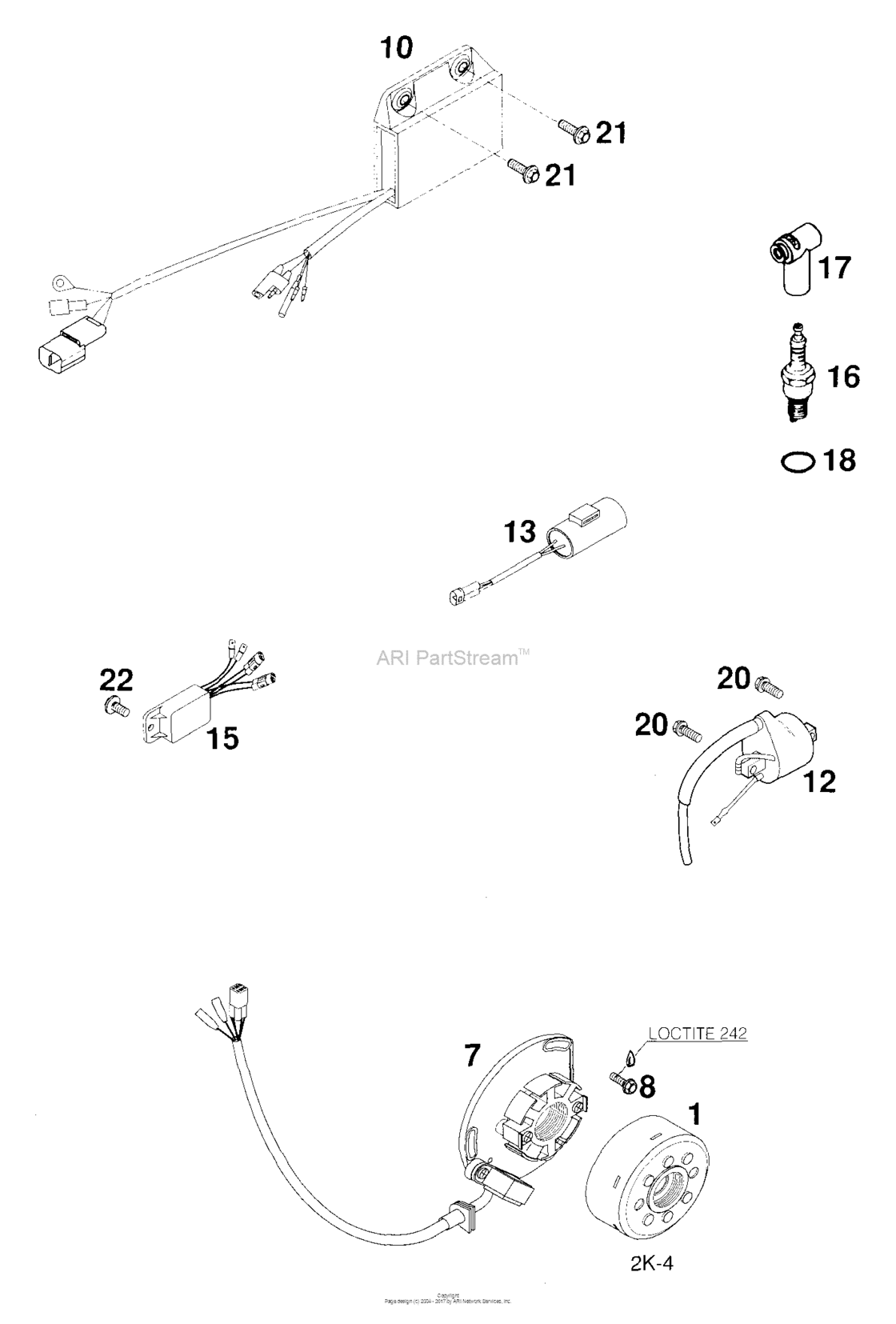

Ignition System Kokusan Diagram KTM 380 380 SX
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 380
- Model
- 380 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54739005000 Flywheel kokusan 2k-1/2k-4 '97(BLACK) |
54739005000 |
US $229.77 |
||
|
7
|
7
50339004400 Stator kokusan 2k-4 '2000(BLACK) |
50339004400 |
US $286.38 |
||
|
8
|
8
0015050163 Hh Collar Screw M 5X16 Ws=8(BLACK) |
0015050163 |
US $1.31 |
||
|
10
|
10
54639031300
Cdi unit kokusan 250 sx '00
(BLACK) |
54639031300 |
— | ||
|
12
|
12
50339006000 Ignitioncoil Ig5128(BLACK) |
50339006000 |
US $77.81 |
||
| replacement | |||||
|
12
|
12
59039006000 Ignitioncoil "ig5128"(BLACK) |
59039006000 |
US $132.38 |
||
|
13
|
13
50311035000 Condensator 2200mf adp-48 2000(BLACK) |
50311035000 |
US $79.05 |
||
|
15
|
15
50311034100 Voltage regulator 12v 2k4 '00(BLACK) |
50311034100 |
US $101.66 |
||
|
16
|
16
54331093410 Spark plug ngk br8ecm(BLACK) |
54331093410 |
US $16.85 |
||
|
17
|
17
54531010000 Spark Plug Protect(BLACK) |
54531010000 |
US $34.54 |
||
| replacement | |||||
|
17
|
17
47039090000 Spark plug cap ngk reinforc.04(BLACK) |
47039090000 |
US $24.26 |
||
|
18
|
18
0770150040 O-ring 15,00x4,00 nbr 70(BLACK) |
0770150040 |
US $1.46 |
||
|
20
|
20
0015060163 Hh Collar Screw M 6X16 Ws=8(BLACK) |
0015060163 |
US $2.23 |
||
|
21
|
21
0014060203 Hh Collar Screw M 6X20 Ws=8(BLACK) |
0014060203 |
US $3.26 |
||
|
22
|
22
0015060123
Hh Collar Screw M 6X12 Ws=8
(BLACK) |
0015060123 |
— | ||
| replacement | |||||
|
22
|
22
0025060126 Hh collar screw m6x12 tx30(BLACK) |
0025060126 |
US $3.96 |
||
