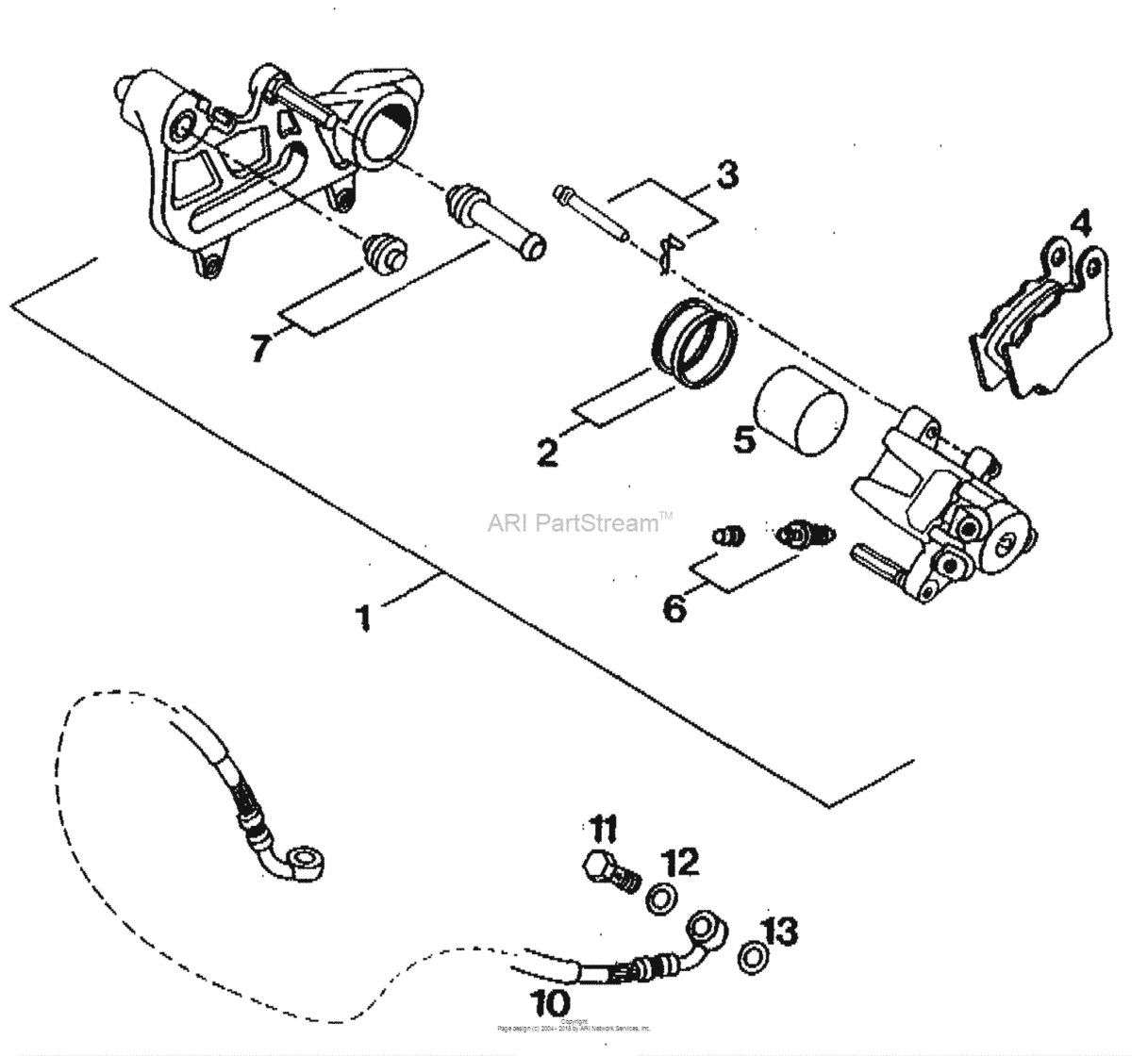

Caliper Rear Diagram KTM 400 400 Duke
- Year
- 1994
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58313301044 Brake caliper rear gold dukeDUKE'94 |
58313301044 |
US $307.82 |
||
|
2
|
2
54613318200 Repair Kit Sealing Rings 34MmDUKE'94 |
54613318200 |
US $23.24 |
||
|
3
|
3
54613310200 Bolt SetDUKE'94 |
54613310200 |
US $24.82 |
||
|
4
|
4
54613309200 Brake Pad Set Ferit Id450FfDUKE'94 |
54613309200 |
US $51.99 |
||
|
5
|
5
54613305200 Brake piston 34mmDUKE'94 |
54613305200 |
US $45.99 |
||
|
6
|
6
54513214000 Bleeder Screw With CapDUKE'94 |
54513214000 |
US $14.89 |
||
| replacement | |||||
|
6
|
6
60013020000 Bleeder Screw With CapDUKE'94 |
60013020000 |
US $6.27 |
||
|
7
|
7
54613218000 Cup Set ShortDUKE'94 |
54613218000 |
US $25.72 |
||
| replacement | |||||
|
7
|
7
54613218100 CUP SET SHORTDUKE'94 |
54613218100 |
US $25.72 |
||
|
10
|
10
54513027000
Brake hose rear 890 mm
DUKE'94 |
54513027000 |
— | ||
|
11
|
11
50213025000 Hollow Screw M10X1X19DUKE'94 |
50213025000 |
US $5.39 |
||
|
12
|
12
42013226000 Cu-Seal Ring Din7603-10X16X1DUKE'94 |
42013226000 |
US $4.10 |
||
|
13
|
13
42013026000 Cu-seal ring din7603-10x16x1,5DUKE'94 |
42013026000 |
US $2.24 |
||
