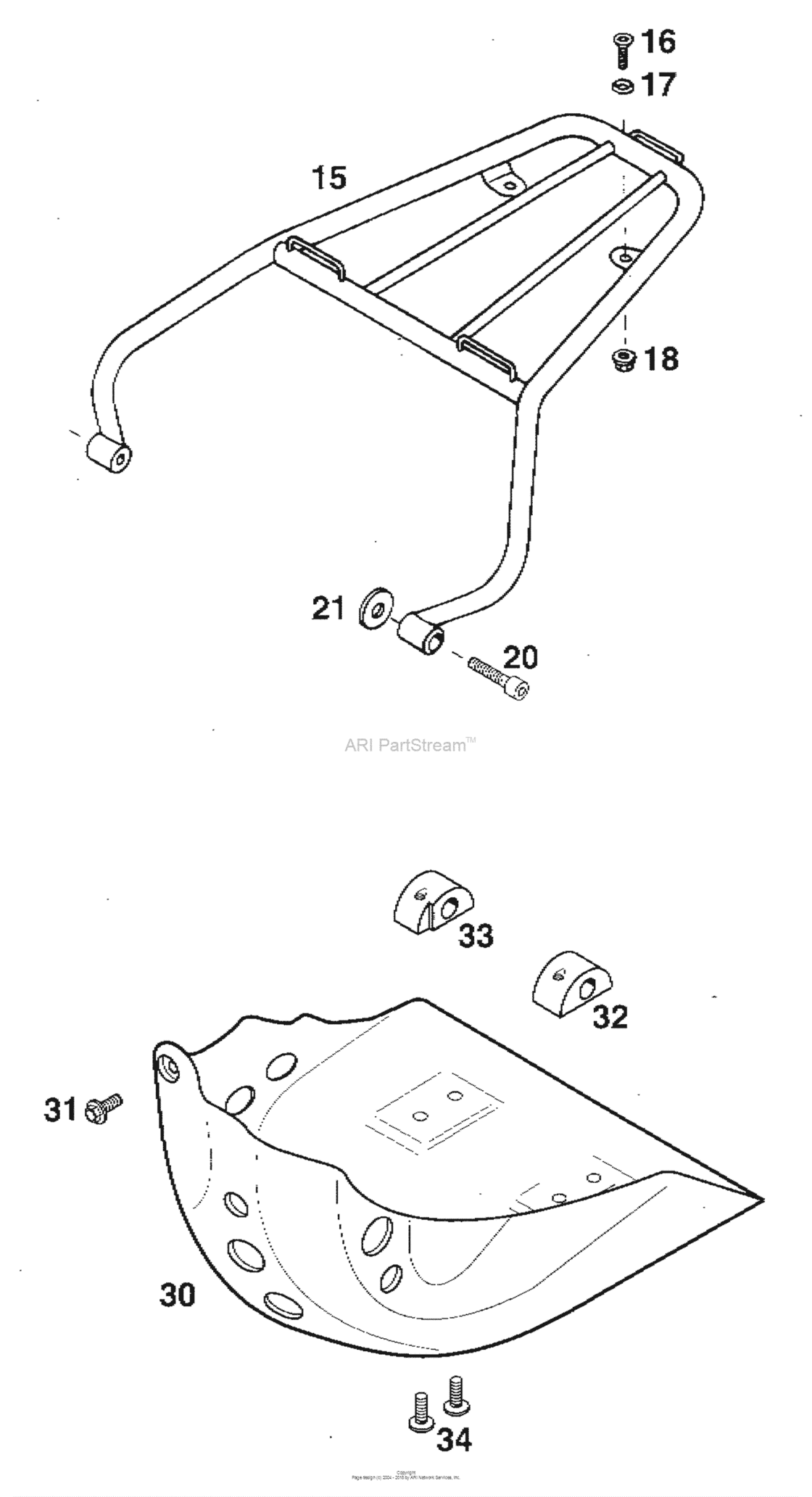

*accessories Diagram KTM 400 400 EGS
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 EGS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15
|
15
58312011000 Baggage carrier '9393 |
58312011000 |
US $181.97 |
||
|
16
|
16
0991060203 Flat Head Din7991-M 6X2093 |
0991060203 |
US $2.99 |
||
| replacement | |||||
|
16
|
16
0991060202 Flat head din7991-m 6x2093 |
0991060202 |
US $3.26 |
||
|
17
|
17
40006006000 Washer 6mm93 |
40006006000 |
US $2.18 |
||
|
18
|
18
56509064000 Self Locking Nut M6 10.993 |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
18
|
18
56509064100 Self Locking Nut M6 10.993 |
56509064100 |
US $1.04 |
||
|
20
|
20
0912060303 Ah screw din0912-m 6x3093 |
0912060303 |
US $1.60 |
||
|
21
|
21
50232050001 Steel washer 6,4x17x393 |
50232050001 |
US $4.86 |
||
|
30
|
30
58303005144
Superseded By 58303005244
97 |
58303005144 |
— | ||
|
31
|
31
0014060133
Hh collar screw m 6x13 ws=8
WS=8 |
0014060133 |
— | ||
| replacement | |||||
|
31
|
31
0024060136 Hh collar screw m6x13 tx30WS=8 |
0024060136 |
US $2.09 |
||
|
32
|
32
58003012100 Engine Protector Bracket '97WS=8 |
58003012100 |
US $21.17 |
||
| replacement | |||||
|
32
|
32
58003012200
Engine protector bracket '97
WS=8 |
58003012200 |
— | ||
|
33
|
33
58003012200
Engine protector bracket '97
WS=8 |
58003012200 |
— | ||
|
34
|
34
0014060153
Hh Collar Screw M6X15 Tx30
WS=8 |
0014060153 |
— | ||
| replacement | |||||
|
34
|
34
0024060156 Hh collar screw m6x15 tx30WS=8 |
0024060156 |
US $3.96 |
||
