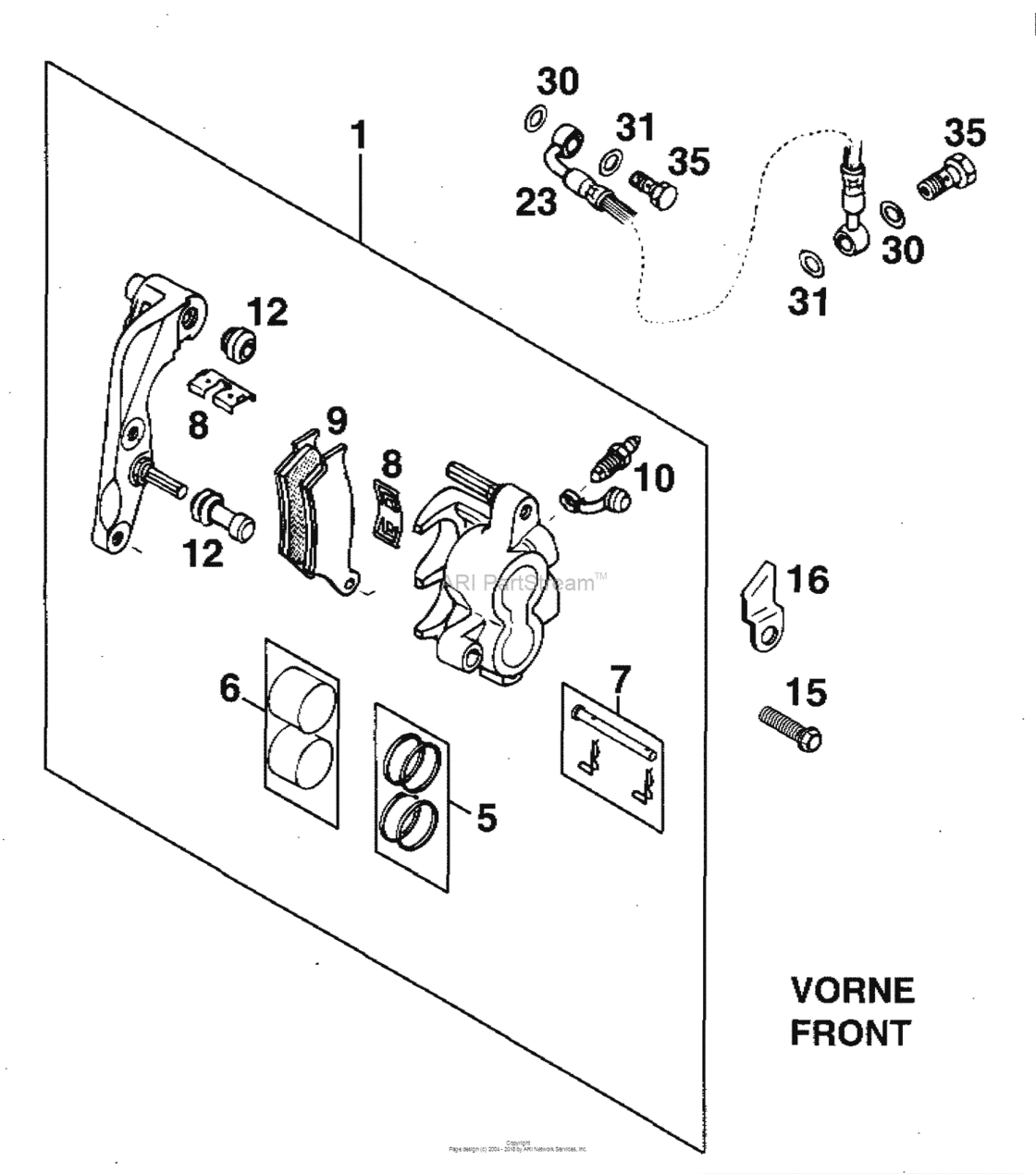

Brake Caliper Front Diagram KTM 400 400 EGS
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 EGS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54613201044
Fro.brake caliper cpl. 2piston
WS=8 |
54613201044 |
— | ||
|
5
|
5
54613205000 Repair kit 28mmWS=8 |
54613205000 |
US $20.21 |
||
|
6
|
6
54613206000 Repair kit piston 28mmWS=8 |
54613206000 |
US $40.29 |
||
|
7
|
7
54613210100 Bolt Cpl. 6X56WS=8 |
54613210100 |
US $17.19 |
||
|
8
|
8
54613212000 Retaining Plate Set BremboWS=8 |
54613212000 |
US $27.20 |
||
|
9
|
9
54613209044 Brake Pad Set Ferodo Id450FfWS=8 |
54613209044 |
US $50.71 |
||
| replacement | |||||
|
9
|
9
54613209244 Brake pad set ferodo id450ffWS=8 |
54613209244 |
US $40.89 |
||
|
9
|
9
54613209144
Brake pad set sinter
(As Required) |
54613209144 |
— | ||
|
10
|
10
54513214000 Bleeder Screw With Cap(As Required) |
54513214000 |
US $14.89 |
||
| replacement | |||||
|
10
|
10
60013020000 Bleeder Screw With Cap(As Required) |
60013020000 |
US $6.27 |
||
|
12
|
12
54613218000 Cup Set Short(As Required) |
54613218000 |
US $25.72 |
||
| replacement | |||||
|
12
|
12
54613218100 CUP SET SHORT(As Required) |
54613218100 |
US $25.72 |
||
|
15
|
15
0015080353 Hh Collar Screw M 8X35 Ws=10WS=10 |
0015080353 |
US $7.12 |
||
|
16
|
16
58313092000 ClampWS=10 |
58313092000 |
US $4.44 |
||
| replacement | |||||
|
16
|
16
50201090000
Clamp for brake hose '94
WS=10 |
50201090000 |
— | ||
|
23
|
23
57513029000 Brake hose 1635mm wp '9696 |
57513029000 |
US $132.24 |
||
|
30
|
30
42013226000 Cu-Seal Ring Din7603-10X16X196 |
42013226000 |
US $4.10 |
||
|
31
|
31
42013026000 Cu-seal ring din7603-10x16x1,596 |
42013026000 |
US $2.24 |
||
|
35
|
35
50213025000 Hollow Screw M10X1X1996 |
50213025000 |
US $5.39 |
||
