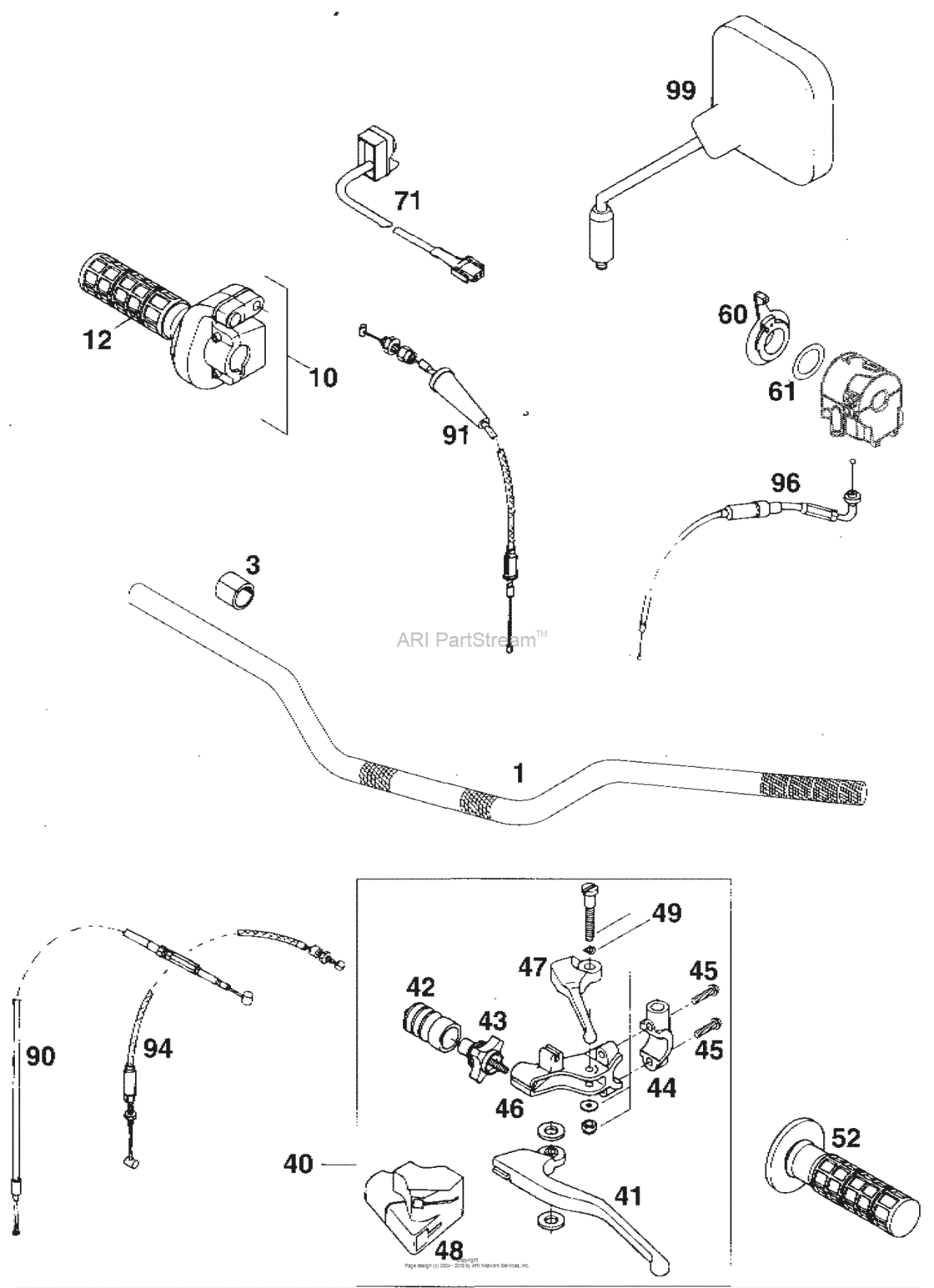

Handlebar, Controls Diagram KTM 400 400 EGS
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 EGS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
58012140000 Rear mirror r/s94 |
58012140000 |
US $42.67 |
||
|
1
|
1
58302001400 Alu-handlebar silver "4t" '9797 |
58302001400 |
US $113.14 |
||
|
3
|
3
50202010000
Spacer bushing 22x28x22pvc
(As Rrequired) |
50202010000 |
— | ||
|
10
|
10
58302010000 Throttle Grip Cpl.domino '9393 |
58302010000 |
US $118.37 |
||
|
12
|
12
58302003000
Gripp Set Full Waffle
93 |
58302003000 |
— | ||
| replacement | |||||
|
12
|
12
58302021000 Gripp set full waffle93 |
58302021000 |
US $28.88 |
||
|
40
|
40
58302040100 Clutch lever assy cpl.domino93 |
58302040100 |
US $112.85 |
||
|
41
|
41
58302055000 Clutch Lever Loose Silver '9793 |
58302055000 |
US $49.42 |
||
| replacement | |||||
|
41
|
41
58402042000 Clutch lever loose silver '9793 |
58402042000 |
US $45.36 |
||
|
42
|
42
54602126000 Bellows clutch lever '9191 |
54602126000 |
US $14.35 |
||
|
43
|
43
58302043000 Adjustment Screw Cpl.m791 |
58302043000 |
US $22.42 |
||
|
44
|
44
58302044000 Clamp mirrow m10x1,2591 |
58302044000 |
US $11.41 |
||
|
45
|
45
0015060253
Hh Collar Screw M6X25 Tx30
WS=8 |
0015060253 |
— | ||
| replacement | |||||
|
45
|
45
0025060256 Hh collar screw m6x25 tx30WS=8 |
0025060256 |
US $2.45 |
||
|
46
|
46
58302023000 Joint dominoWS=8 |
58302023000 |
US $51.48 |
||
|
47
|
47
58302047000 Decompression lever looseWS=8 |
58302047000 |
US $12.19 |
||
|
48
|
48
58302048000 Protecting coverWS=8 |
58302048000 |
US $8.30 |
||
|
49
|
49
58302049000 Lever screw cpl.WS=8 |
58302049000 |
US $6 |
||
|
52
|
52
58302052000
Rubber Grip
93 |
58302052000 |
— | ||
| replacement | |||||
|
52
|
52
58302021000 Gripp set full waffle93 |
58302021000 |
US $28.88 |
||
|
60
|
60
58302050100 Choke lever domino '9494 |
58302050100 |
US $9.04 |
||
|
61
|
61
0988253505 Thrust wash. din0988-25x35x0,594 |
0988253505 |
US $3.33 |
||
|
71
|
71
58311071100 Short circuit switch 550mm '9494 |
58311071100 |
US $39.97 |
||
|
90
|
90
50202090200 Clutch Cable94 |
50202090200 |
US $40.48 |
||
| replacement | |||||
|
90
|
90
58402090000 Clutch cable 4t l=1115mm '9994 |
58402090000 |
US $36.65 |
||
|
91
|
91
58302091000
Throttle cable domino/dellorto
94 |
58302091000 |
— | ||
|
94
|
94
58302094000 Decompression cable lc4 '9393 |
58302094000 |
US $37.81 |
||
|
96
|
96
58302095100 Choke cable lc4 '9494 |
58302095100 |
US $41.38 |
||
|
99
|
99
58012040000 Rear mirror l/s94 |
58012040000 |
US $41.60 |
||
