	Description	OEM Part #	Price
2	2 58036014000 Timing gear 17-t 50 CCM, (As Required)	58036014000	US $69.12
3	3 58036011000 Camshaft gear 34-t 50 CCM, (As Required)	58036011000	US $102.71
3	3 58336011001 Camshaft gear 34-t "01" '94 94	58336011001	US $100.71
4	4 57536013000 Timing chain c107c / 96 links 94	57536013000	—
4	4 58036013000 Timing chain c107c / 100 links 94	58036013000	US $309.38
5	5 57536001000 Timing chain guide 94	57536001000	US $21.51
5	5 58036001000 Timing chain guide 94	58036001000	—
6	6 58036009000 Chain guide screw 94	58036009000	—
07	07 58036065000 Cu-Seal Ring Din7603-6X10X1 94	58036065000	—
	replacement
07	07 0603061001 Cu-Seal Ring Din7603-6X10X1 94	0603061001	US $2.64
7	7 0137060000 Spring Washer Din0137-B 6 94	0137060000	—
	replacement
7	7 0137060003 Spring Washer Din0137-B 6 94	0137060003	US $0.43
8	8 0912060203 Ah Screw Din0912-M 6X20 94	0912060203	US $1.04
9	9 57536002000 Timing chain tensioner 94	57536002000	US $52.02
9	9 58036002000 Timing chain tensioner 94	58036002000	—
10	10 0923080120 Flat head scr. m 8x12 94	0923080120	—
11	11 0912060208 Ah screw din0912-m 6x20 ss 94	0912060208	US $4.10
15	15 58336018000 Securing guide LC4'94	58336018000	—
20	20 58336112000 Driving screw m10x25 LC4'94	58336112000	US $12.75
21	21 58036012000 Steel washer 10 x 28 x 3 LC4'94	58036012000	US $4.61
22	22 58036096000 Circlip sb 42 LC4'94	58036096000	US $1.79
23	23 0625060040 Grooved ball bearing tmb004 LC4'94	0625060040	—
24	24 57636010044 Cam shaft 995 cpl. 400 lc4'95 95	57636010044	US $188.22
24	24 58336010044 Camshaft Cpl. 249/1 Lc4-E 95	58336010044	—
	replacement
24	24 58336110044 Camshaft cpl. 249/1 lc4-e 95	58336110044	US $285.74
25	25 58036097000 Needle bearing bk 2012 95	58036097000	US $18.45
26	26 36003014200 Locking washer 10mm 95	36003014200	US $0.48
30	30 58036003144 Autom.tensioner cpl. '88 88	58036003144	US $265.27
31	31 58036005100 Tensioner gasket 1,5 mm 88	58036005100	US $2.58
32	32 58036004100 Pressure bolt 88	58036004100	—
33	33 58036006100 Pressure spring 0,9mm 88	58036006100	US $1.39
35	35 58036007100 Ratcheting pawl 88	58036007100	—
35	35 58036007050 Pres.spring f.ratcheting pawl 88	58036007050	US $0.77
37	37 0402031780 Needle rol.din5402 nrb 3x17,8 88	0402031780	US $1.29
38	38 58036003100 Tensioner case 88	58036003100	US $49.88
39	39 58G38022000 Seal Ring 88	58G38022000	—
40	40 58036008100 Plug m12x1,5 88	58036008100	US $4.64
41	41 58336016052 Spring for auto-decompr. '95 95	58336016052	—
42	42 58336016000 Decompression Cam 95	58336016000	US $32.95
	replacement
42	42 58336016200 Deco-tappet lc4-e 95	58336016200	—
43	43 0417200120 Circlip ws20 95	0417200120	US $1.19
44	44 58336015000 Stepped ring 95	58336015000	US $6.04
50	50 54211052000 Clamp rsgu 24/15 95	54211052000	US $11.68

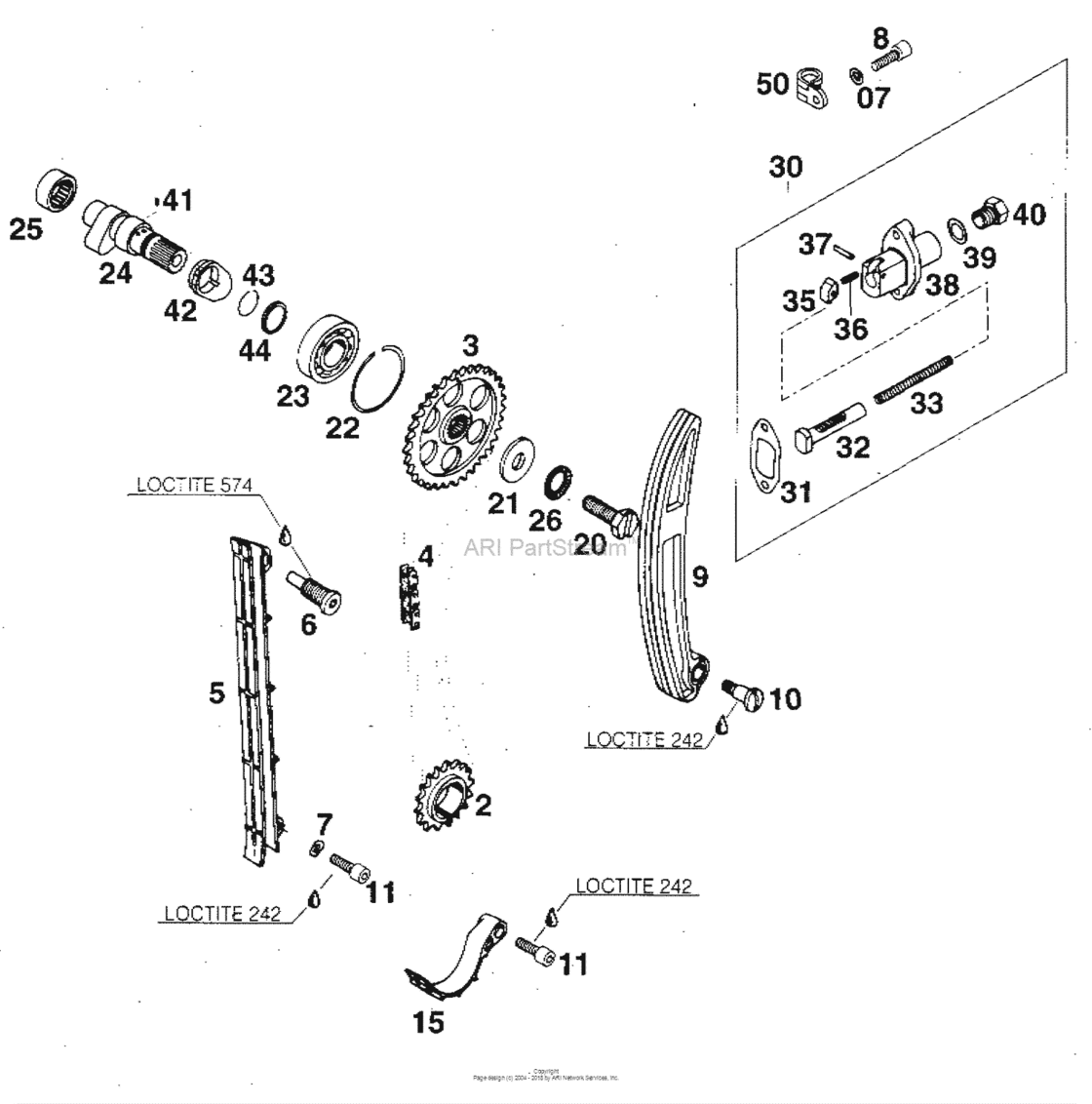

Timing Drive Diagram KTM 400 400 EGS US/EU 18091003-939930

Timing Drive Diagram KTM 400 400 EGS US/EU 18091003-939930
