	Description	OEM Part #	Price
1	1 58035008700 Radiator l/s lc4'92 (4.5164) ’92	58035008700	—
2	2 58035016000 Radiator Cap Small 20,3 Psi ’92	58035016000	US $33.10
3	3 58035007800 Radiator r/s (45247) lc4'94 ’92	58035007800	US $399.72
	replacement
3	3 58335008200 Radiator r/s (45.403) sxc 03 ’92	58335008200	US $335.72
4	4 58035134000 Radiator Protector R/s Black ’92	58035134000	US $18.19
5	5 58035034000 Radiator Protector L/s Black ’92	58035034000	US $16.17
6	6 50235033000 Snap-nut holder m5 kp142 ’92	50235033000	US $3.40
7	7 56535025001 Radiator hose 18x25 per metre ’92	56535025001	US $42.30
8	8 56535027000 Preformed hose 18x24 90 degree ’92	56535027000	—
9	9 58035025900 Preformed radiator hose LC4’93	58035025900	US $20.74
10	10 50235025700 Preformed hose 18x3,5-90 dg LC4’93	50235025700	—
12	12 10001020000 Hose Clamp 18-29 LC4’93	10001020000	US $4.71
13	13 54435024001 Hose Id 7,5 Per Meter LC4’93	54435024001	US $27.40
14	14 50231005000 Hose clamp ydnac 10119 11mm LC4’93	50231005000	US $1.68
15	15 55007016001 Pvc-hose 7x10 per meter LC4’93	55007016001	US $5.98
16	16 44011076155 Superseded By 44011076200 (As Required)	44011076155	—
20	20 41001052000 Rubber Sleeve D=12Mm (As Required)	41001052000	US $5.46
21	21 51006097000 Washer 6,2x22x1,st30,w.galv. (As Required)	51006097000	US $1.62
22	22 54635022000 Sleeve for steering head (As Required)	54635022000	US $1.79
23	23 54635039100 Superseded By 0014060103 SW=8	54635039100	—
25	25 58035026000 T-connector 19/19/19 ts 19 SW=8	58035026000	US $31.30
30	30 0908140153 Plug din0908-m14x1,5 SW=8	0908140153	US $3.42
31	31 0603142015 Alu sealring din7603-14x20x1,5 SW=8	0603142015	US $1.19

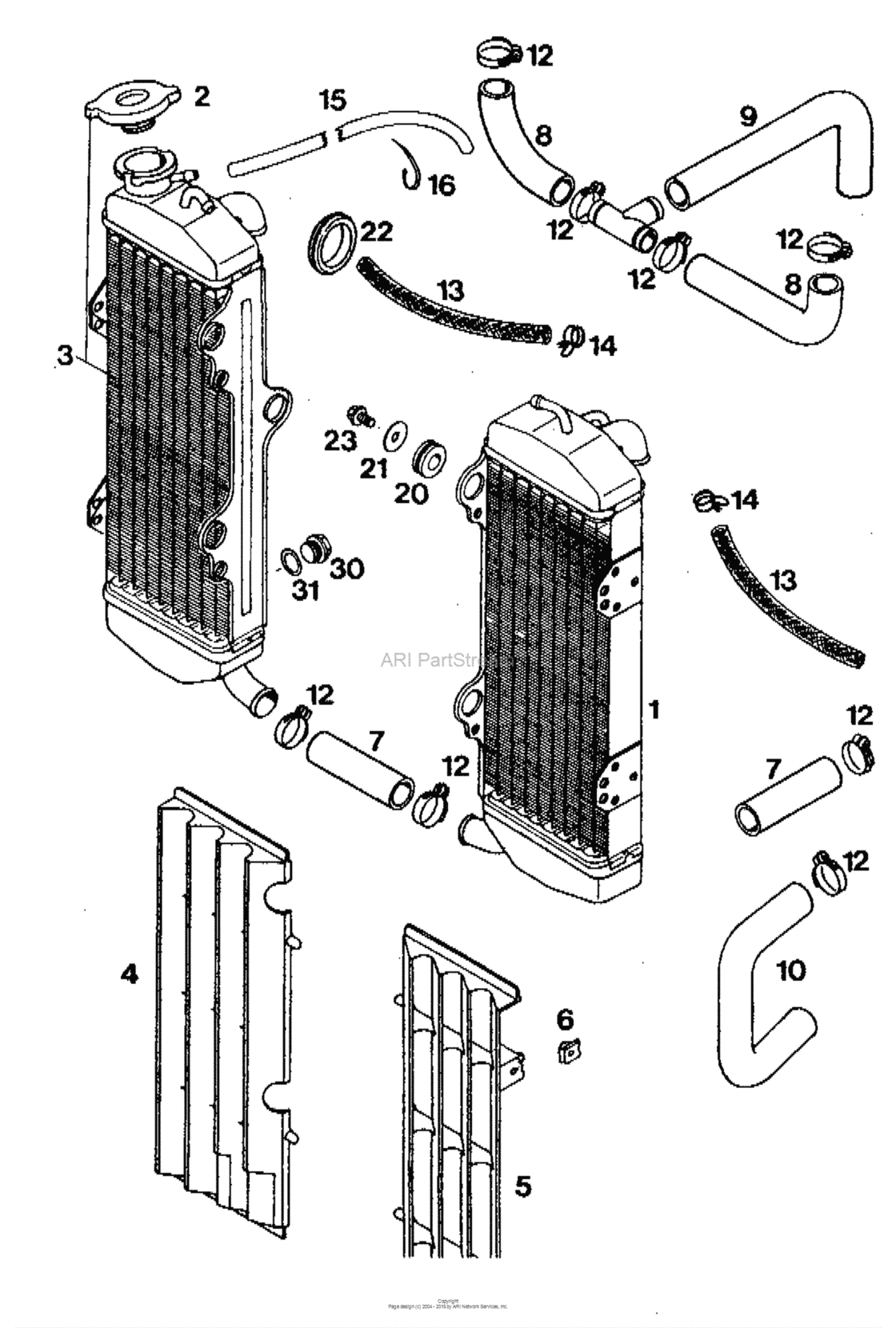

Cooling System Diagram KTM 400 400 EXC U.S.A. 18091621-939957

Cooling System Diagram KTM 400 400 EXC U.S.A. 18091621-939957
