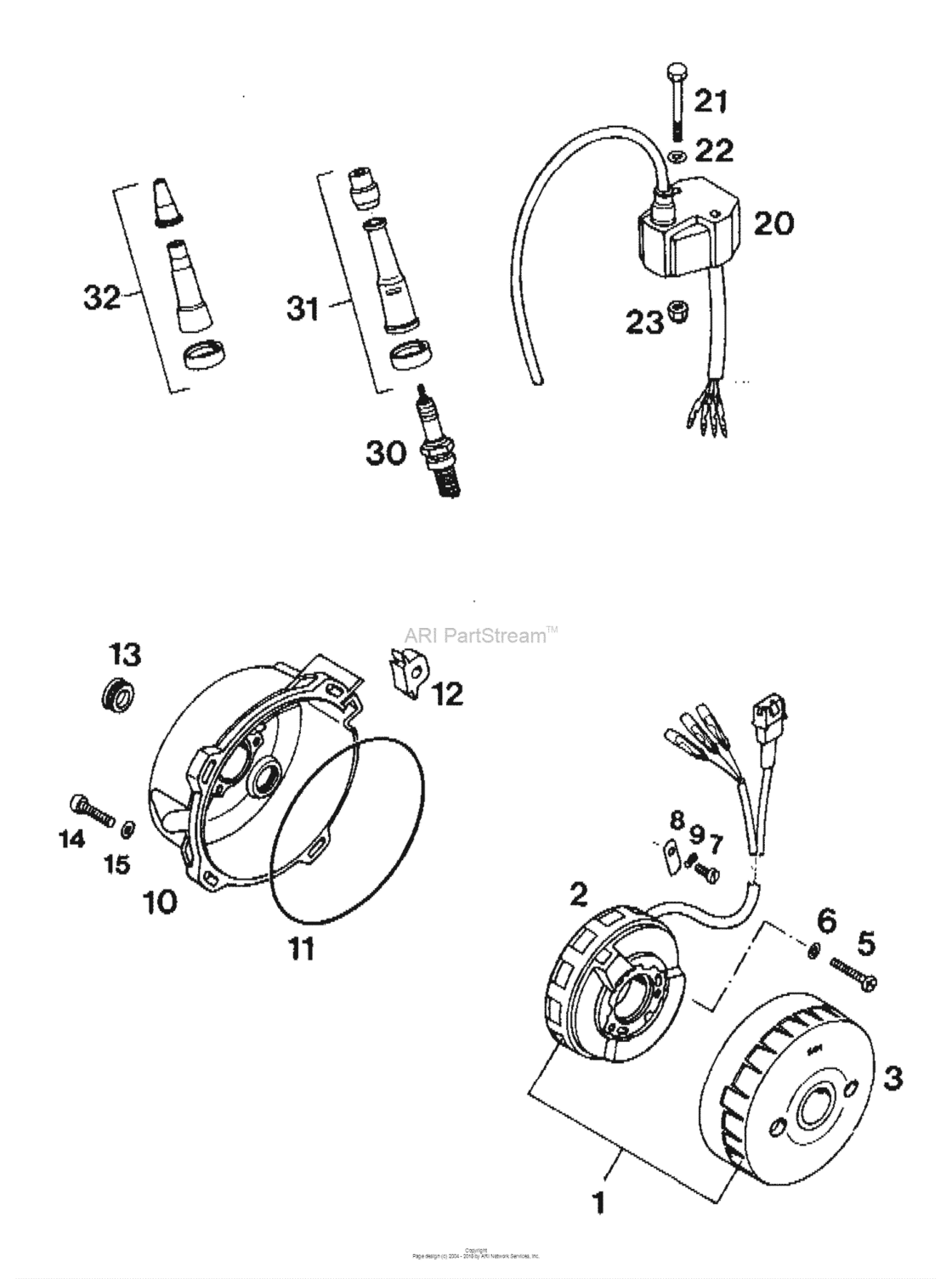

Ignition System Diagram KTM 400 400 EXC
- Year
- 1994
- Sales region
- U.S.A.
- Engine Capacity
- 400
- Model
- 400 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58031002000
Superseded By 58031002100
'91 |
58031002000 |
— | ||
|
2
|
2
58031002050
Stator loose "13"
'91 |
58031002050 |
— | ||
|
3
|
3
58031002051
Rotor loose
'91 |
58031002051 |
— | ||
|
5
|
5
0084050303
Cylinder screw din0084-m 5x30a
'91 |
0084050303 |
— | ||
|
6
|
6
0125050003 Washer Din0125-A 5,3'91 |
0125050003 |
US $2.18 |
||
|
7
|
7
0500050083
Tapetite Screw
'91 |
0500050083 |
— | ||
|
8
|
8
50031003000
Retaining plate
'91 |
50031003000 |
— | ||
|
9
|
9
0137050003
Spring washer din0137-b 5
'91 |
0137050003 |
— | ||
|
10
|
10
58030002200 Ignition cover black'91 |
58030002200 |
US $213.08 |
||
|
11
|
11
0770020490 O-ring 126,72x1,78 b70'91 |
0770020490 |
US $3.33 |
||
|
12
|
12
58031004000 Rubber sleeve'91 |
58031004000 |
US $6.36 |
||
|
13
|
13
58030002050
Plug M18X1,5
'91 |
58030002050 |
— | ||
|
14
|
14
0912060253 Ah Screw Din0912-M 6X25'91 |
0912060253 |
US $1.79 |
||
|
15
|
15
0125060003 Washer Din0125-A 6,4'91 |
0125060003 |
US $0.37 |
||
|
20
|
20
58031006000
Ignition coil tm 14-05
'91 |
58031006000 |
— | ||
|
21
|
21
0931060503 Hh screw din931 m6x50'91 |
0931060503 |
US $0.83 |
||
|
22
|
22
0125060003 Washer Din0125-A 6,4'91 |
0125060003 |
US $0.37 |
||
|
23
|
23
0985060003 Self Lock. Nut Din0985-M 6'91 |
0985060003 |
US $2.60 |
||
|
30
|
30
58031093005
Spark Plug Ngk Dpr8Ea-9
'91 |
58031093005 |
— | ||
| replacement | |||||
|
30
|
30
58439093009 Spark plug ngk dpr8ea-9'91 |
58439093009 |
US $8.82 |
||
|
31
|
31
58031010000
Spark plug connect.sd 05fg ngk
'91 |
58031010000 |
— | ||
|
32
|
32
58031410044
Spark Plug Protect
'91 |
58031410044 |
— | ||
