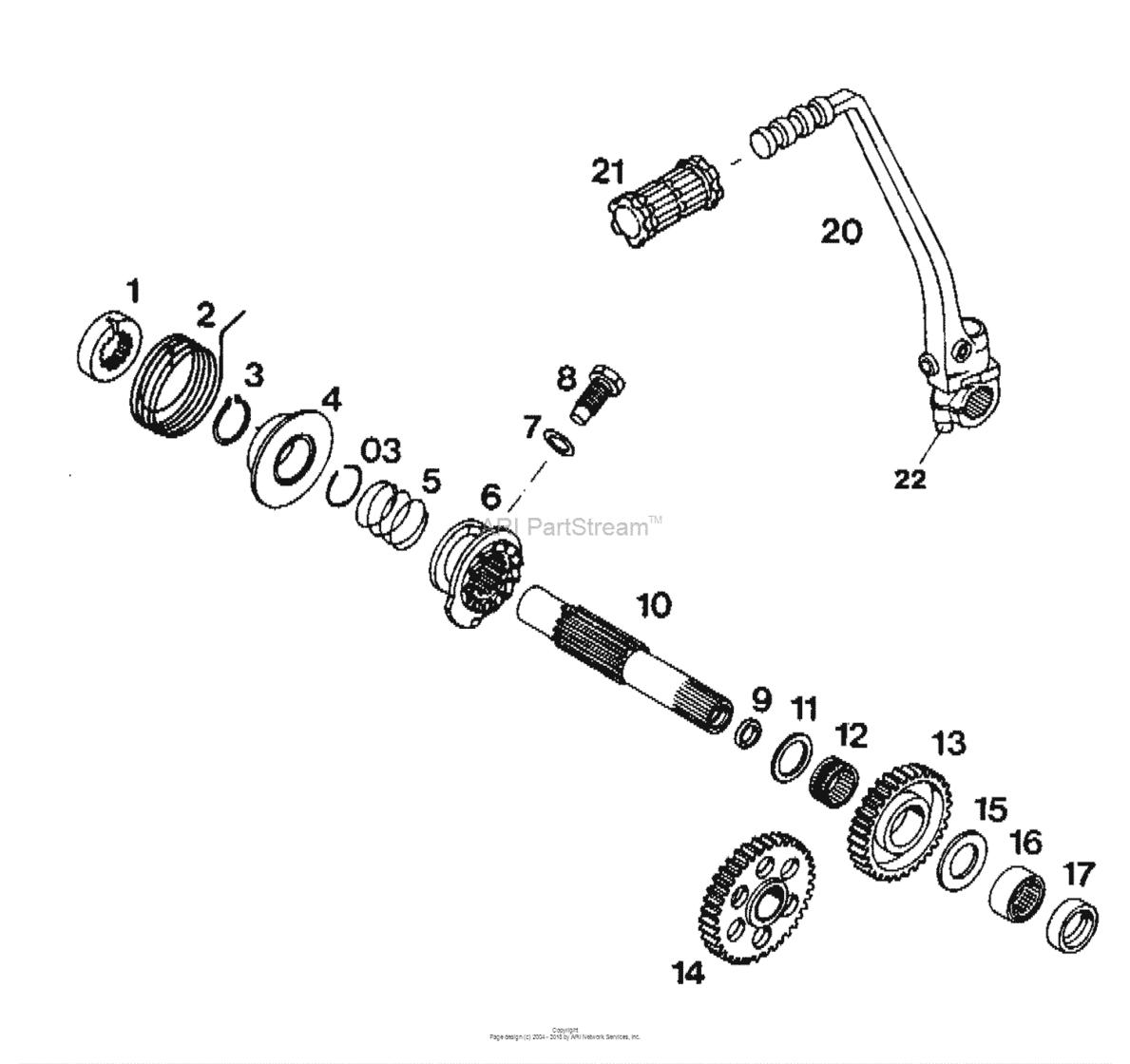

Kickstarter Diagram KTM 400 400 EXC
- Year
- 1994
- Sales region
- U.S.A.
- Engine Capacity
- 400
- Model
- 400 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58033026100
Driving hub
'91 |
58033026100 |
— | ||
|
2
|
2
58033020000 Kickstarter spring'91 |
58033020000 |
US $14.14 |
||
|
3
|
3
52033096000 Lock ring din0471-25x1,64sd'91 |
52033096000 |
US $4.17 |
||
|
03
|
03
52033090100
Lock ring 25x1,2
'91 |
52033090100 |
— | ||
| replacement | |||||
|
03
|
03
0417025000 Circlip Sw25'91 |
0417025000 |
US $2.84 |
||
|
4
|
4
58033037000 Spring bushing'91 |
58033037000 |
US $17.51 |
||
|
5
|
5
58033028000 Ratchet gear spring 1,2 mm'91 |
58033028000 |
US $1.24 |
||
|
6
|
6
58033023100 Kickstarter ratchet gear 18t'91 |
58033023100 |
US $109 |
||
|
7
|
7
58038022000 Cu-Seal Ring Din7603-12X18X1,5'91 |
58038022000 |
US $1.97 |
||
|
8
|
8
58033033000 Stop screw m12x1,5'91 |
58033033000 |
US $12 |
||
|
9
|
9
54632090000 Seal ring dh/gr 12x16x3'91 |
54632090000 |
US $11.03 |
||
|
10
|
10
58033021200
Superseded By 58033021300
'91 |
58033021200 |
— | ||
|
11
|
11
58033031000 Stop disk 22,2 x 30 x 1,5'91 |
58033031000 |
US $3.32 |
||
|
12
|
12
56533098000 Needle bearing k22x26x13h'91 |
56533098000 |
US $13.74 |
||
|
13
|
13
58033022600 Kickstarter gear 35t'91 |
58033022600 |
US $86.97 |
||
|
14
|
14
58033024000 Intermediate gear 37-t'91 |
58033024000 |
US $111.16 |
||
|
15
|
15
56532012000 Stop disk 22,2 x 35 x 2'91 |
56532012000 |
US $6.89 |
||
|
16
|
16
58033090000 Needle bearing rna 4903'91 |
58033090000 |
US $33.07 |
||
|
17
|
17
0760223270 Shaft seal ring 22x32x7 bsl'91 |
0760223270 |
US $9.61 |
||
|
20
|
20
58033036044 Kickstarter cpl.'91 |
58033036044 |
US $140.90 |
||
|
21
|
21
58033040000
Rubber (kick starter)
(As Required) |
58033040000 |
— | ||
|
22
|
22
0912070203 Allen Head Screw(As Required) |
0912070203 |
US $0.80 |
||
| replacement | |||||
|
22
|
22
0015070253
Hh Collar Screw M 7X25 Ws=8
(As Required) |
0015070253 |
— | ||
