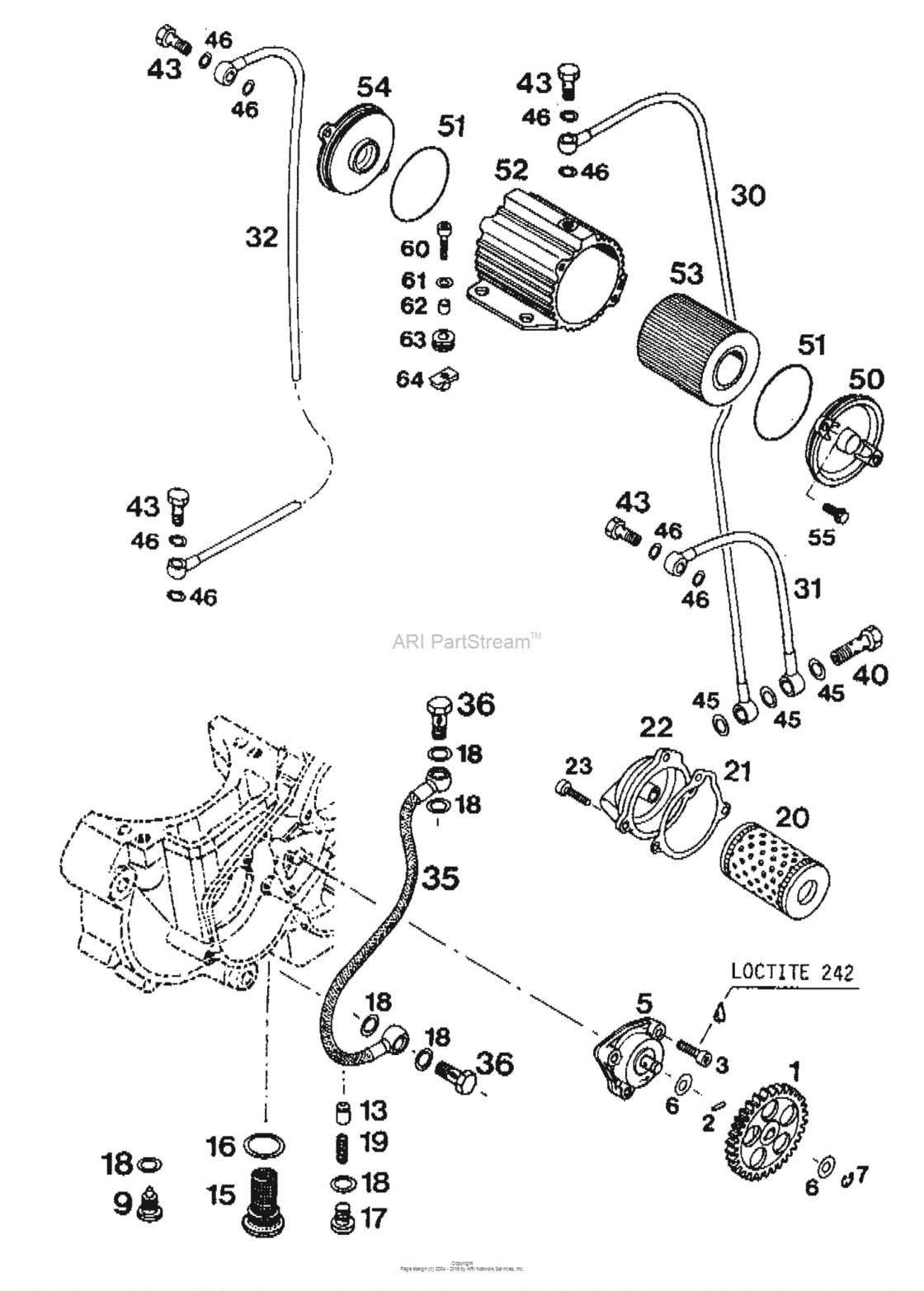

Lubrication System Diagram KTM 400 400 EXC
- Year
- 1994
- Sales region
- U.S.A.
- Engine Capacity
- 400
- Model
- 400 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58038001000 Oil Pump Gear 31-T'93 |
58038001000 |
US $59.48 |
||
| replacement | |||||
|
1
|
1
0402251980 Needlerol.din5402 Nra 2,5X19,8'93 |
0402251980 |
US $2.02 |
||
|
2
|
2
0402025980 Needle roller din5402 2,5x9,8'93 |
0402025980 |
US $2.72 |
||
|
3
|
3
0912060203 Ah Screw Din0912-M 6X20'93 |
0912060203 |
US $1.04 |
||
|
5
|
5
58038007100
Oil Pump Cpl
LC4'92 |
58038007100 |
— | ||
| replacement | |||||
|
5
|
5
58038007700 Oil pump mikuni g-73-10LC4'92 |
58038007700 |
US $85.97 |
||
|
6
|
6
58038007755 Stop Disk 8,1 X 15 X 0,5LC4'92 |
58038007755 |
US $1.04 |
||
|
7
|
7
0799060000 Tab washer din6799-rs 6,0LC4'92 |
0799060000 |
US $0.66 |
||
|
9
|
9
58038020000
Superseded By 58030021000
LC4'92 |
58038020000 |
— | ||
|
13
|
13
58038028000 Valve piston d=10mmLC4'92 |
58038028000 |
US $38.76 |
||
|
15
|
15
58038019000
Superseded By 58038019100
LC4'92 |
58038019000 |
— | ||
|
16
|
16
58038017000 Seal ring 22x27x1 (copper)LC4'92 |
58038017000 |
US $1.51 |
||
|
17
|
17
0908120153 Plug din0908-m12x1,5LC4'92 |
0908120153 |
US $3.81 |
||
|
18
|
18
58038022000 Cu-Seal Ring Din7603-12X18X1,5LC4'92 |
58038022000 |
US $1.97 |
||
|
19
|
19
58038023300 Pressure spring l=25mm d=1mmLC4'92 |
58038023300 |
US $6.61 |
||
|
20
|
20
58038005000 Oil Filter LongLC4'92 |
58038005000 |
US $14.45 |
||
| replacement | |||||
|
20
|
20
58038005100 Oil Filter LongLC4'92 |
58038005100 |
US $20.93 |
||
|
21
|
21
58030041000
Oil Filter Cover Gasket 2001
LC4'92 |
58030041000 |
— | ||
| replacement | |||||
|
21
|
21
58530041000 Oil filter cover gasket 2001LC4'92 |
58530041000 |
US $8.06 |
||
|
22
|
22
58030008600 Filtercover'91 |
58030008600 |
US $61.17 |
||
| replacement | |||||
|
22
|
22
58530041000 Oil filter cover gasket 2001'91 |
58530041000 |
US $8.06 |
||
|
23
|
23
0912060163 Ah Screw Din0912-M 6X16'91 |
0912060163 |
US $1.29 |
||
|
30
|
30
58038234600
Oil line filter/micro-filter
'91 |
58038234600 |
— | ||
|
31
|
31
58038334600 Oil line filter/inject.va. r/s'91 |
58038334600 |
US $37.96 |
||
|
32
|
32
58038134300 Oil line mic-filter/clut.cover'91 |
58038134300 |
US $43.61 |
||
|
35
|
35
57538035000
Oil line crankcase/transmis.
'91 |
57538035000 |
— | ||
|
36
|
36
57538030000
Banjo bolt m12 x 1,5 din7643
'91 |
57538030000 |
— | ||
|
40
|
40
58038033100
Dual Banjo Bolt M10X1
'91 |
58038033100 |
— | ||
| replacement | |||||
|
40
|
40
58038033200 Dual banjo bolt m10x1'91 |
58038033200 |
US $12.89 |
||
|
43
|
43
58038030000
Banjo Bolt M8X1
'91 |
58038030000 |
— | ||
| replacement | |||||
|
43
|
43
58038029000 Banjo bolt m8x1'91 |
58038029000 |
US $3.72 |
||
|
45
|
45
58038032010 Copper Gasket Din7603-10X14X1'91 |
58038032010 |
US $1.77 |
||
| replacement | |||||
|
45
|
45
0603100141 Copper Gasket Din7603-10X14X1'91 |
0603100141 |
US $2.24 |
||
|
46
|
46
58038032000
Seal Ring Cu Din7603- 8X12X1
'91 |
58038032000 |
— | ||
| replacement | |||||
|
46
|
46
0603082121 Seal ring cu din7603- 8x12x1'91 |
0603082121 |
US $2.40 |
||
|
50
|
50
58038041000
Superseded By 58038041100
'91 |
58038041000 |
— | ||
|
51
|
51
0770056020 O-ring 56,00x2,00 viton'91 |
0770056020 |
US $4.42 |
||
|
52
|
52
58038043000 Micro-Filter Housing Cpl'91 |
58038043000 |
US $54.23 |
||
| replacement | |||||
|
52
|
52
58038043044
Mikro-filter housing cpl. 97
'91 |
58038043044 |
— | ||
|
53
|
53
58038044000
Micro filter element
'91 |
58038044000 |
— | ||
|
54
|
54
58038042000 Filter Cover With M8 X 1'91 |
58038042000 |
US $51.95 |
||
| replacement | |||||
|
54
|
54
58038042100 Filter cover with m8 x 1'91 |
58038042100 |
US $47.92 |
||
|
55
|
55
0010050163 Special screw din7500-m5,0x16'91 |
0010050163 |
US $0.83 |
||
|
60
|
60
0912050203 Ah screw din0912-m 5x20'91 |
0912050203 |
US $0.80 |
||
|
61
|
61
0021050003 Washer din9021-a 5,3'91 |
0021050003 |
US $1.29 |
||
|
62
|
62
54431032050 Spacer bushing 6x8x8,5'91 |
54431032050 |
US $1.60 |
||
|
63
|
63
31008060000 Rubber Sleeve D=8Mm Open'91 |
31008060000 |
US $1.09 |
||
|
64
|
64
54603048200 Range change metal nut m5'91 |
54603048200 |
US $3.72 |
||
