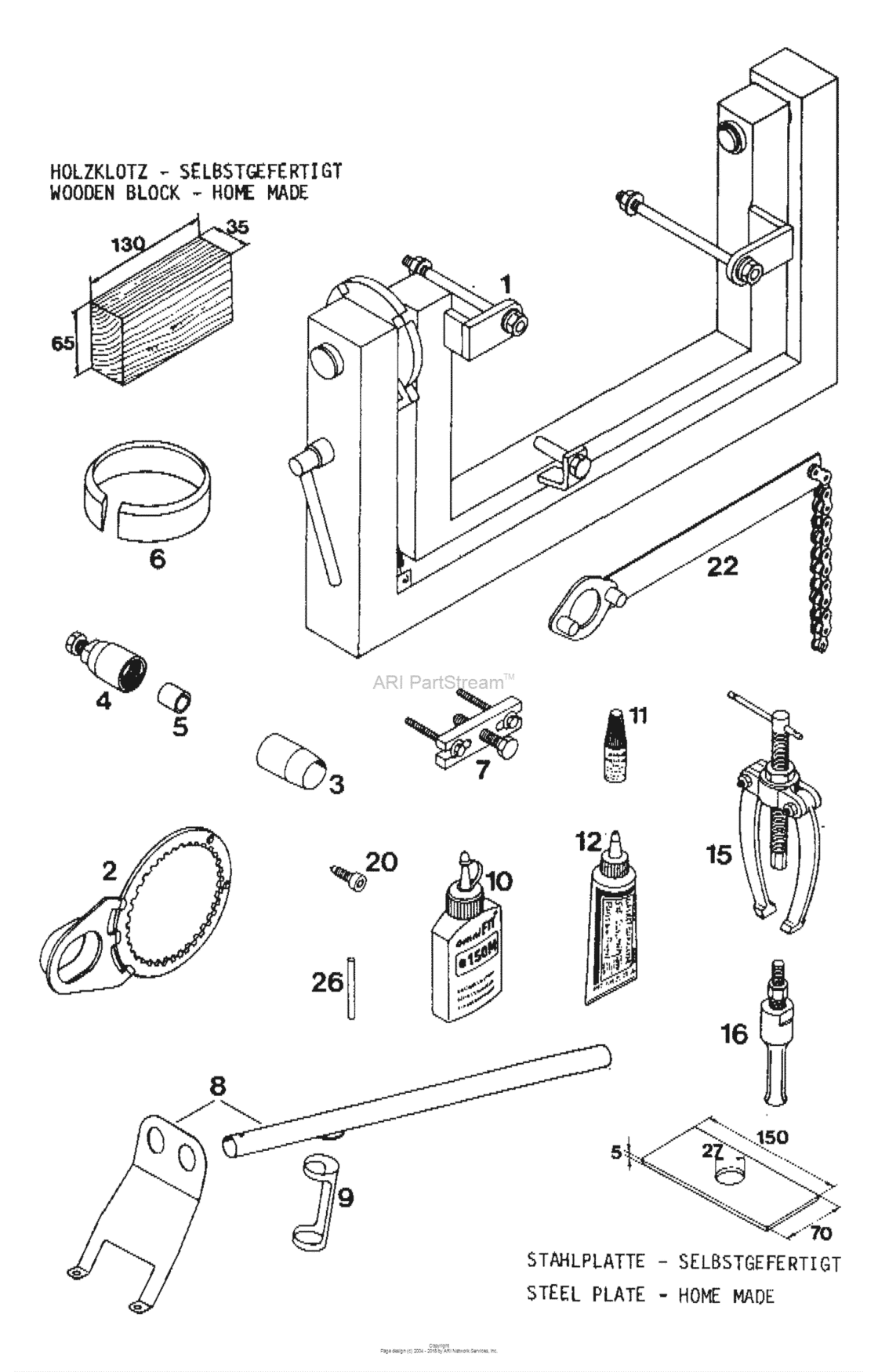

Special Tools Diagram KTM 400 400 EXC
- Year
- 1994
- Sales region
- U.S.A.
- Engine Capacity
- 400
- Model
- 400 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58012001000
Assy Support With Engineholder
'92 |
58012001000 |
— | ||
| replacement | |||||
|
1
|
1
56012001044 Assy Support With Engineholder'92 |
56012001044 |
US $1,830.65 |
||
|
2
|
2
58012003000
Clutch holder d=153mm
'92 |
58012003000 |
— | ||
|
3
|
3
58012005025 Mounting sleeve d=25mm'92 |
58012005025 |
US $34.82 |
||
|
4
|
4
58012009000 Flywheel Extractor'92 |
58012009000 |
US $41.55 |
||
|
5
|
5
51012016000 Protection cap crankshaft m12'92 |
51012016000 |
US $32.11 |
||
|
6
|
6
58012015089 Piston ring compressor d=89mm'92 |
58012015089 |
US $68.32 |
||
|
6
|
6
58012015090
Piston Ringspanner 500 Lc4
'92 |
58012015090 |
— | ||
|
6
|
6
58012015095 Piston ring compressor d=95mm'92 |
58012015095 |
US $115.60 |
||
|
6
|
6
58012015100 Piston ring compressor d=100mm'92 |
58012015100 |
US $136.15 |
||
|
7
|
7
58012021000 Extractor Prim. Gear Cpl'92 |
58012021000 |
US $42.50 |
||
| replacement | |||||
|
7
|
7
59029021044 Extractor Prim. Gear Cpl'92 |
59029021044 |
US $14.37 |
||
|
8
|
8
58012019000 Valve installation kit'92 |
58012019000 |
US $99.94 |
||
|
9
|
9
6276470
Push insert
'92 |
6276470 |
— | ||
|
10
|
10
09043
Omnifit 150 Green
(As Required) |
09043 |
— | ||
|
11
|
11
6899785 Loctite 243 Blue 6Ccm(As Required) |
6899785 |
US $40.61 |
||
|
12
|
12
6899784
Loctite Red
(As Required) |
6899784 |
— | ||
|
15
|
15
15112017000 Bushing extractor(As Required) |
15112017000 |
US $144.77 |
||
|
16
|
16
15112018000 Intern.bear.puller 12-16 mm(As Required) |
15112018000 |
US $179.89 |
||
|
16
|
16
15112018100 Intern.bear.puller 18-23 mm(As Required) |
15112018100 |
US $227.53 |
||
|
20
|
20
58030080000 Locating screw m8 l=23(As Required) |
58030080000 |
US $13.60 |
||
|
22
|
22
51012012000 Holding spanner for sprocket(As Required) |
51012012000 |
US $79.95 |
||
|
26
|
26
58029026007 Limit plug gauge f.valve guide(As Required) |
58029026007 |
US $44.98 |
||
