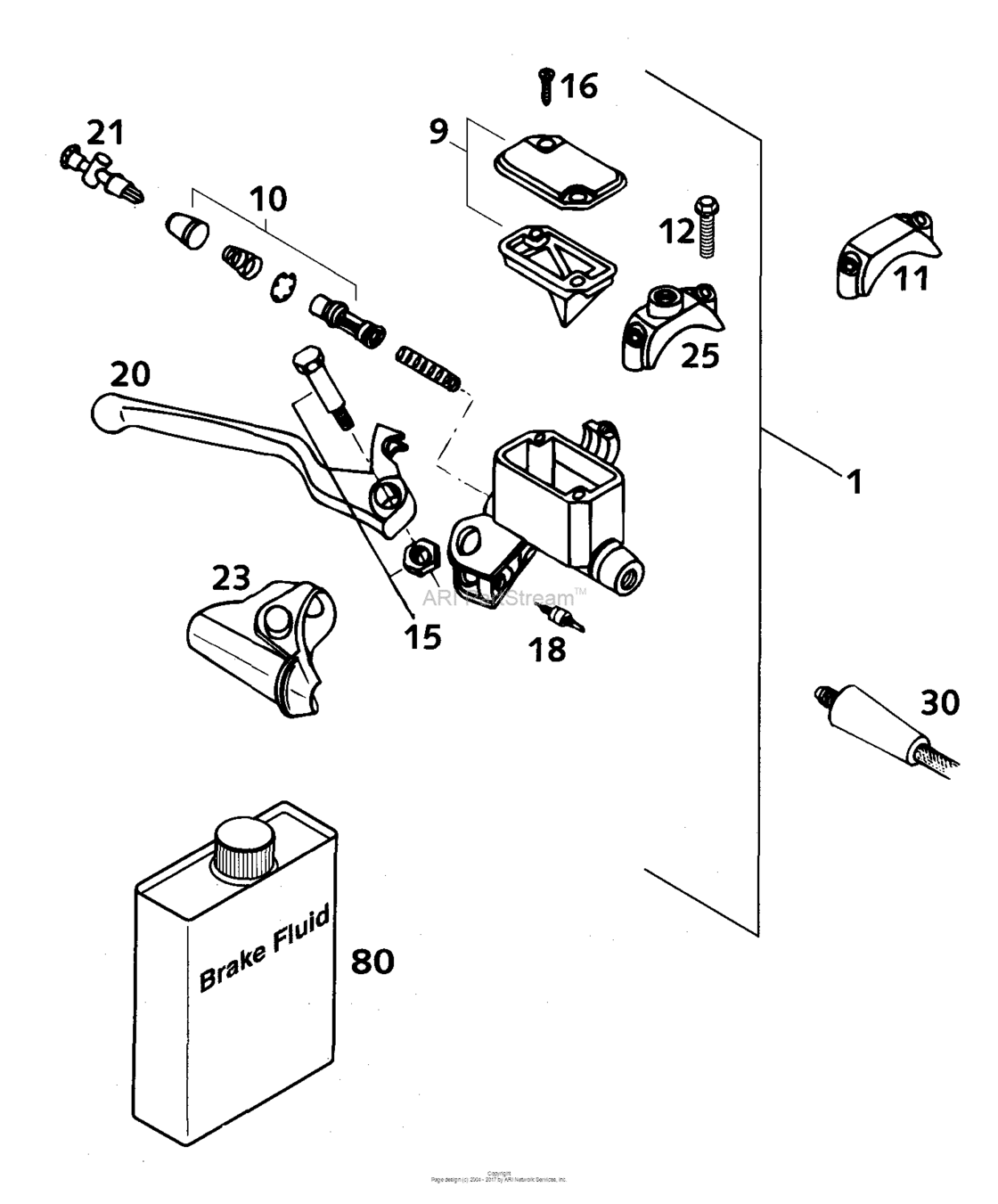

Hand Brake Cylinder Diagram KTM 400 400 LC4-E
- Year
- 2001
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LC4-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58413001000 Hand Brake Cylinder Black 200097 |
58413001000 |
US $188.04 |
||
|
9
|
9
50213012000 Cover cpl.97 |
50213012000 |
US $30.97 |
||
|
10
|
10
50213050000 Repair kit piston 11mm97 |
50213050000 |
US $29.10 |
||
|
11
|
11
54413011000 Clamp Brembo97 |
54413011000 |
US $23.44 |
||
|
12
|
12
0015060253
Hh Collar Screw M6X25 Tx30
97 |
0015060253 |
— | ||
| replacement | |||||
|
12
|
12
0025060256 Hh collar screw m6x25 tx3097 |
0025060256 |
US $2.45 |
||
|
15
|
15
50213015000 Lever screw cpl.97 |
50213015000 |
US $14.60 |
||
|
16
|
16
0965050163 Flat head screw din0965-m 5x1697 |
0965050163 |
US $0.85 |
||
|
18
|
18
51011050000 Break Light Switch97 |
51011050000 |
US $20.76 |
||
| replacement | |||||
|
18
|
18
51011050100 BREAK LIGHT SWITCH97 |
51011050100 |
US $17.22 |
||
|
20
|
20
50213020000 Hand Brake Lever Loose Brem'9497 |
50213020000 |
US $28.63 |
||
|
21
|
21
50213021000 Adjusting Screw Cpl97 |
50213021000 |
US $20.45 |
||
|
23
|
23
50213023000 Protection Cap Brembo'9497 |
50213023000 |
US $23.58 |
||
|
25
|
25
58012040150 Clamp for mirror '9497 |
58012040150 |
US $18.90 |
||
|
30
|
30
58413011200 Brakehose fr.l=1225mm lc4 200097 |
58413011200 |
US $85.27 |
||
|
80
|
80
306054
Brake fluid dot 4.0
97 |
306054 |
— | ||
