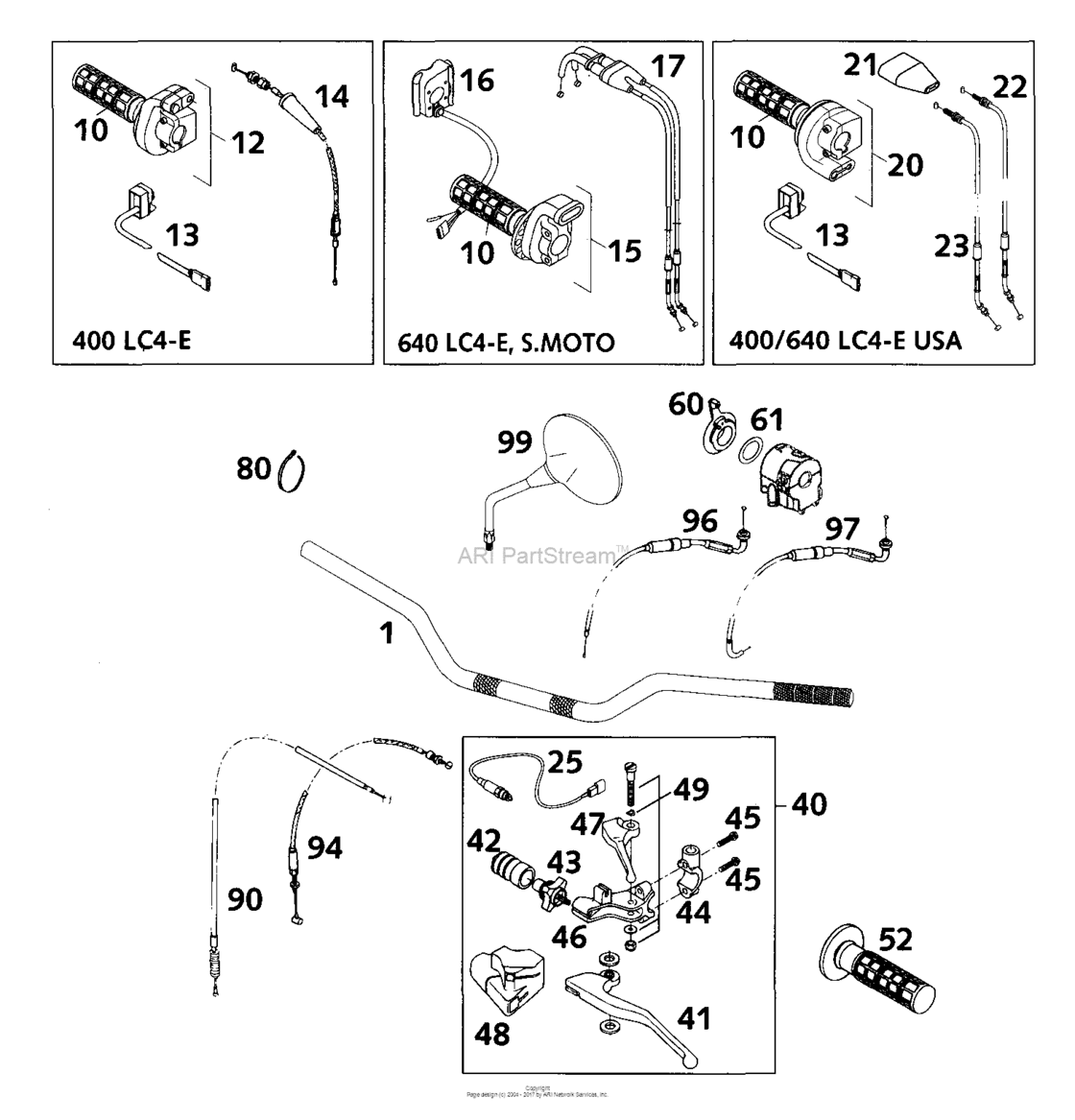

Handlebar, Controls Diagram KTM 400 400 LC4-E
- Year
- 2001
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LC4-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58302001400 Alu-handlebar silver "4t" '9797 |
58302001400 |
US $113.14 |
||
|
10
|
10
58302003000
Gripp Set Full Waffle
97 |
58302003000 |
— | ||
| replacement | |||||
|
10
|
10
58302021000 Gripp set full waffle97 |
58302021000 |
US $28.88 |
||
|
12
|
12
58302010000 Throttle Grip Cpl.domino '9397 |
58302010000 |
US $118.37 |
||
|
13
|
13
58411074000 Start-stop switch97 |
58411074000 |
US $40.29 |
||
|
14
|
14
58202091000
Throttle cable dom./dello.adv.
97 |
58202091000 |
— | ||
|
15
|
15
58402010600 Throttle grip cpl. 640lc4 200097 |
58402010600 |
US $57.09 |
||
|
16
|
16
59011074000
Start-Stop Switch 2000
97 |
59011074000 |
— | ||
| replacement | |||||
|
16
|
16
59011074100 Start-Stop Switch 200097 |
59011074100 |
US $54.49 |
||
|
16
|
16
59011074100 Start-Stop Switch 200097 |
59011074100 |
US $54.49 |
||
|
17
|
17
58402091600 Thrott.cable "open-close" 200097 |
58402091600 |
US $97.17 |
||
|
20
|
20
58402010400 Thrott.grip cpl. domino-mikuni97 |
58402010400 |
US $63.39 |
||
|
21
|
21
58302016200
Protect.cover rxc/duke usa '95
97 |
58302016200 |
— | ||
|
22
|
22
58402092000 Thrott.cable"close"dom.-mikuni97 |
58402092000 |
US $52.17 |
||
|
23
|
23
58402192000 Thrott.cable"open"dom.-mikuni97 |
58402192000 |
US $54.64 |
||
|
25
|
25
58411049000 Clutch switch '9697 |
58411049000 |
US $28.61 |
||
|
40
|
40
58402040100
Clutch lever cpl. domino '97
97 |
58402040100 |
— | ||
|
41
|
41
58402042000 Clutch lever loose silver '9797 |
58402042000 |
US $45.36 |
||
|
42
|
42
58302126000 Clutch lever boot '9597 |
58302126000 |
US $3.91 |
||
|
43
|
43
58302043000 Adjustment Screw Cpl.m797 |
58302043000 |
US $22.42 |
||
|
44
|
44
58302044000 Clamp mirrow m10x1,2597 |
58302044000 |
US $11.41 |
||
|
45
|
45
0015060253
Hh Collar Screw M6X25 Tx30
97 |
0015060253 |
— | ||
| replacement | |||||
|
45
|
45
0025060256 Hh collar screw m6x25 tx3097 |
0025060256 |
US $2.45 |
||
|
46
|
46
58402041000 Joint (pivot) domino '9697 |
58402041000 |
US $40.27 |
||
|
47
|
47
58302047000 Decompression lever loose97 |
58302047000 |
US $12.19 |
||
|
48
|
48
58402048000 Plastic Cover97 |
58402048000 |
US $9.83 |
||
| replacement | |||||
|
48
|
48
58302048000 Protecting cover97 |
58302048000 |
US $8.30 |
||
|
49
|
49
58302049000 Lever screw cpl.97 |
58302049000 |
US $6 |
||
|
52
|
52
58302052000
Rubber Grip
97 |
58302052000 |
— | ||
| replacement | |||||
|
52
|
52
58302021000 Gripp set full waffle97 |
58302021000 |
US $28.88 |
||
|
60
|
60
58302050100 Choke lever domino '9497 |
58302050100 |
US $9.04 |
||
|
61
|
61
0988253505 Thrust wash. din0988-25x35x0,597 |
0988253505 |
US $3.33 |
||
|
80
|
80
44011076200 Cable tie 200/3,6mm black97 |
44011076200 |
US $0.39 |
||
|
80
|
80
44011076100 Cable tie 100/2,5mm black97 |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
80
|
80
44011076140 Cable tie 140/2,5mm black97 |
44011076140 |
US $0.29 |
||
|
90
|
90
58402090000 Clutch cable 4t l=1115mm '9997 |
58402090000 |
US $36.65 |
||
|
94
|
94
58302094200 Decompr. cable l=693,5 lc4 '9997 |
58302094200 |
US $34.44 |
||
|
96
|
96
58302095100 Choke cable lc4 '9497 |
58302095100 |
US $41.38 |
||
|
97
|
97
58402095000 Choke cable for mikuni lc4 '9897 |
58402095000 |
US $48.04 |
||
|
99
|
99
58412040100 Rear mirror l/s+r/s lc4 200197 |
58412040100 |
US $66.86 |
||
