Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 57636020300 Cylinder head cpl. 400 lc4 '97 ’92	57636020300	US $964.97
1	1 58436020000 Cylinder head cpl. 640 lc4 '98 ’92	58436020000	—
2	2 49030090000 Dowel 9,8 x 7 x 10 ’92	49030090000	US $5.54
	replacement
2	2 49030090100 Dowel 9,8 X7X10 ’92	49030090100	US $2.60
3	3 58036065100 Cu-seal ring 6 x 10 x 2 ’92	58036065100	US $0.90
4	4 58036152500 Valve Cover Front ’92	58036152500	US $43.49
	replacement
4	4 58036152600 Valve cover front '99 ’92	58036152600	US $33.58
5	5 58036052000 Valve Cover Rear ’92	58036052000	US $43.76
	replacement
5	5 58036052200 Valve cover rear ’92	58036052200	US $14.33
6	6 58036053000 Valve cover gasket ’92	58036053000	US $4.71
7	7 57530036000 Cylinder head gasket 90,3 mm ’92	57530036000	US $64.33
7	7 58330036000 Cylinder head gasket 101,3 mm ’92	58330036000	US $65.03
8	8 0603061001 Cu-Seal Ring Din7603-6X10X1 ’92	0603061001	US $2.64
9	9 0912060353 Ah Screw Din0912-M 6X35 ’92	0912060353	US $2.09
11	11 0912060253 Ah Screw Din0912-M 6X25 ’92	0912060253	US $1.79
12	12 49030028000 Collar nut m8 ’92	49030028000	US $2.09
13	13 0835080355 Stud din0835-m 8x35 10.9 ’92	0835080355	US $2.23
13	13 54330043000 Stud din0835-m 8x40 ’92	54330043000	US $3.79
14	14 58036098000 Cu-seal ring 10 x 20 x 1 ’92	58036098000	US $1.22
014	014 58036099100 Collar screw m10x80 ws=13 10.9 ’92	58036099100	US $8.87
15	15 42011252000 Temperature switch vdo ’92	42011252000	—
018	018 0993012000 Circlip Din7993-Rw12 ’92	0993012000	US $2.11
18	18 58036026600 Valve Guide Intake ’92	58036026600	US $16.85
	replacement
18	18 58036026644 Valve guide intake cpl. ’92	58036026644	US $14.43
19	19 58036126600 Valve Guide Exhaus ’92	58036126600	US $16.46
	replacement
19	19 58036126644 Valve guide exhaust cpl. ’92	58036126644	US $14.43
30	30 58036040000 Exhaust flange r/s ’92	58036040000	US $37.88
31	31 58036140000 Exhaust flange l/s ’92	58036140000	US $37.03
32	32 58036041000 Exhaust flange gasket ’92	58036041000	US $4.71
34	34 58336024000 Plug sas bore ’92	58336024000	US $2.92
35	35 58436054000 Cu-seal ring 12 x 16 x 2 ’92	58436054000	US $1.19
39	39 58136042040 Intake flange d=40mm ’92	58136042040	—
41	41 58136043000 Intake flange gasket ’92	58136043000	US $3.30
42	42 58136044100 Intake boot d=38mm 400-660 lc4 ’92	58136044100	US $36.07
42	42 58436044000 Intake boot for mikuni carbu. ’92	58436044000	US $29.05
45	45 56530061000 Clamp sm12/a60 ’92	56530061000	—
49	49 0912060163 Ah Screw Din0912-M 6X16 ’92	0912060163	US $1.29
50	50 0991060203 Flat Head Din7991-M 6X20 ’92	0991060203	US $2.99
	replacement
50	50 0991060202 Flat head din7991-m 6x20 ’92	0991060202	US $3.26
51	51 0912060203 Ah Screw Din0912-M 6X20 ’92	0912060203	US $1.04
52	52 0912060253 Ah Screw Din0912-M 6X25 ’92	0912060253	US $1.79
53	53 51005074000 Retaining plate ’92	51005074000	US $2.11
54	54 0912060501 Ah screw din0912-m 6x50 12.9 ’92	0912060501	US $1.45
55	55 0912060551 Ah screw din0912-m 6x55 12.9 ’92	0912060551	US $1.73
56	56 0912060653 Ah Screw Din0912-M 6X65 ’92	0912060653	US $1.84
57	57 0912060703 Ah screw din0912-m 6x70 ’92	0912060703	US $1.79
58	58 0912060404 Ah Screw Din0912-M 6X40 A2 ’92	0912060404	US $1.38
59	59 56509064000 Self Locking Nut M6 10.9 ’92	56509064000	US $1.14
	replacement
59	59 56509064100 Self Locking Nut M6 10.9 ’92	56509064100	US $1.04
60	60 0137060000 Spring Washer Din0137-B 6 ’92	0137060000	—
	replacement
60	60 0137060003 Spring Washer Din0137-B 6 ’92	0137060003	US $0.43

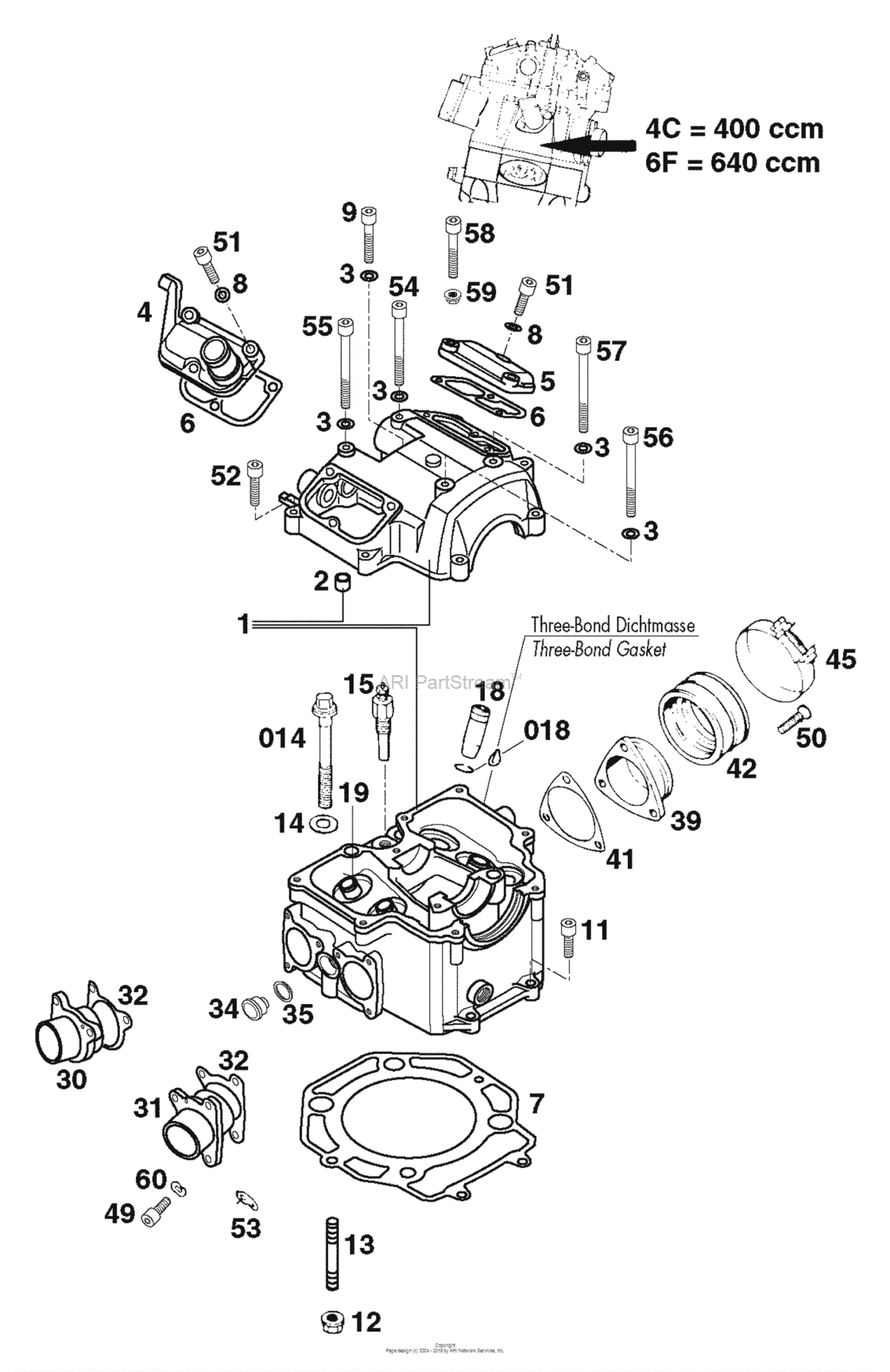

Cylinder Head Diagram KTM 400 400 LC4 US/EU 18091777-939964

Cylinder Head Diagram KTM 400 400 LC4 US/EU 18091777-939964
