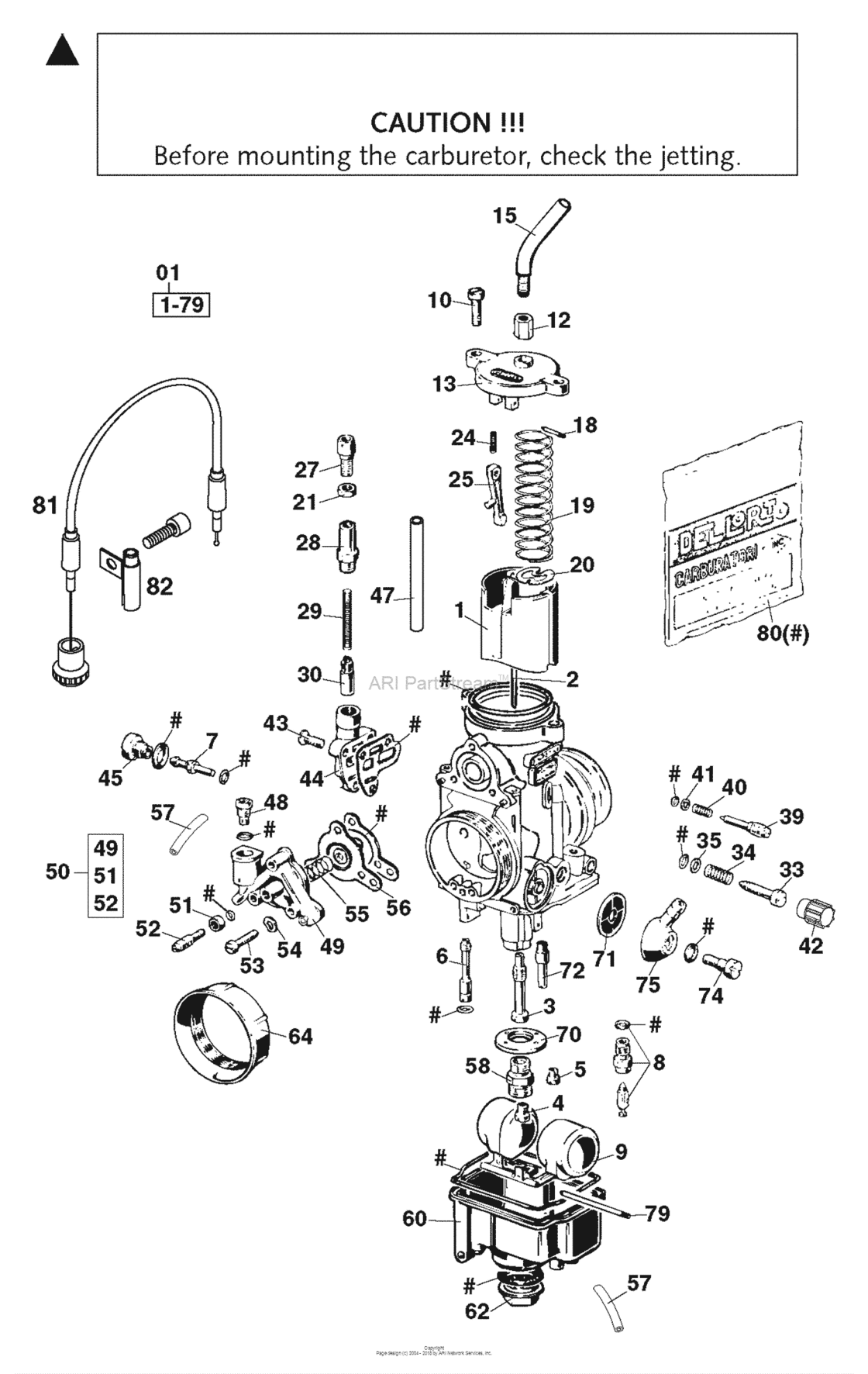

Carburetor Diagram KTM 400 400 LC4 SXC
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LC4 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
57631001044
Carburetor Phm 38 Nd (100197)
97 |
57631001044 |
— | ||
|
1
|
1
57231135000
Throttle valve 50/1 dm=42mm
97 |
57231135000 |
— | ||
|
2
|
2
49031134032 Jet needle k3297 |
49031134032 |
US $21.22 |
||
|
2
|
2
49031134011
Jet Needle K11
97 |
49031134011 |
— | ||
|
3
|
3
57031521265
Needle Jet Ab
97 |
57031521265 |
— | ||
|
4
|
4
57031523135
Main jet 135
97 |
57031523135 |
— | ||
|
4
|
4
57031523140 Main jet 14097 |
57031523140 |
US $5.73 |
||
|
4
|
4
57031523142
Main Jet 142
97 |
57031523142 |
— | ||
|
4
|
4
57031523145 Main jet 14597 |
57031523145 |
US $6.63 |
||
|
4
|
4
57031523148
Main jet 148
97 |
57031523148 |
— | ||
|
4
|
4
57031523150 Main jet 15097 |
57031523150 |
US $5.17 |
||
|
4
|
4
57031523155 Main jet 15597 |
57031523155 |
US $5.87 |
||
|
4
|
4
57031523158 Main jet 15897 |
57031523158 |
US $6.09 |
||
|
5
|
5
15131123055 Jet 5597 |
15131123055 |
US $7.16 |
||
|
5
|
5
15131123052 Jet 5297 |
15131123052 |
US $7.77 |
||
|
5
|
5
15131123050 Jet 5097 |
15131123050 |
US $6.55 |
||
|
5
|
5
15131123045 Jet 4597 |
15131123045 |
US $6.46 |
||
|
6
|
6
57031551045 Starting Jet 4597 |
57031551045 |
US $9.64 |
||
|
7
|
7
57031566033
Accelerating Jet 33
97 |
57031566033 |
— | ||
|
8
|
8
57231120300 Needle Valve 30097 |
57231120300 |
US $52.39 |
||
|
9
|
9
57031509000
Float 8,5 gramme
97 |
57031509000 |
— | ||
|
9
|
9
58331509000 Float97 |
58331509000 |
US $37.11 |
||
|
10
|
10
57031524000
Hexagon Nut M 5X16
97 |
57031524000 |
— | ||
|
12
|
12
58031528000
Support bushing m6x0,75 ws=10
97 |
58031528000 |
— | ||
|
13
|
13
57231127000
Carburetor Cover
97 |
57231127000 |
— | ||
|
15
|
15
58431024000
Tube f.carburetor 400lc4-e '97
97 |
58431024000 |
— | ||
|
18
|
18
57031571000
Stud 2,5X16
97 |
57031571000 |
— | ||
|
19
|
19
57031530000 Sliding Spring97 |
57031530000 |
US $1.28 |
||
|
20
|
20
57031532000 Retaining plate97 |
57031532000 |
US $0.92 |
||
|
21
|
21
52031126000 Hexagon nut m 6x0,75 din043997 |
52031126000 |
US $8.35 |
||
|
24
|
24
57031570000
Spring
97 |
57031570000 |
— | ||
|
25
|
25
57031569000
Pump Lever
97 |
57031569000 |
— | ||
|
27
|
27
57031525000 Adjustment screw m6x0,7597 |
57031525000 |
US $4.47 |
||
|
28
|
28
57231155000 Plug97 |
57231155000 |
US $9.08 |
||
|
29
|
29
57231153000
Spring
97 |
57231153000 |
— | ||
| replacement | |||||
|
29
|
29
58031153000 Spring97 |
58031153000 |
US $1.51 |
||
|
30
|
30
57031549000 Starting device97 |
57031549000 |
US $5.90 |
||
|
33
|
33
57031519000
Idle Adjust Screw
97 |
57031519000 |
— | ||
| replacement | |||||
|
33
|
33
45131019000 Idle adjust screw97 |
45131019000 |
US $5.93 |
||
|
34
|
34
52031116000
Spring
97 |
52031116000 |
— | ||
| replacement | |||||
|
34
|
34
45131518000 Spring97 |
45131518000 |
US $2.94 |
||
|
35
|
35
57031573000 Washer 5,1 x 8 x 0,897 |
57031573000 |
US $1.21 |
||
|
39
|
39
57031517000 Mixture Regulat.screw M7X0,7597 |
57031517000 |
US $5.90 |
||
|
40
|
40
57031515000
Spring Air Adjust.screw
97 |
57031515000 |
— | ||
|
41
|
41
57031572000 Washer 3,3 x 5,8 x 0,597 |
57031572000 |
US $1.63 |
||
|
42
|
42
57031519100
Knurled Cap
97 |
57031519100 |
— | ||
|
43
|
43
0964040143 Oval Head Screw Din0964-M 4X1497 |
0964040143 |
US $0.37 |
||
|
44
|
44
57231150100 Start.device body 4s97 |
57231150100 |
US $58.67 |
||
|
45
|
45
57031567000
Jet Holder
97 |
57031567000 |
— | ||
|
47
|
47
58331029048
Slide Stop L=48Mm
97 |
58331029048 |
— | ||
|
48
|
48
57031565000
Bleeder Valve
97 |
57031565000 |
— | ||
|
50
|
50
57231160044
Pump Housing Cpl
97 |
57231160044 |
— | ||
|
53
|
53
0084040203 Cyl.screw din0084-m 4x20 a97 |
0084040203 |
US $0.15 |
||
|
54
|
54
0137040003
Spring washer din0137-b 4
97 |
0137040003 |
— | ||
|
55
|
55
57031559000
Spring
97 |
57031559000 |
— | ||
|
56
|
56
57031557000
Diaphragm
97 |
57031557000 |
— | ||
|
57
|
57
52031137001 Pvc-hose 3x5mm97 |
52031137001 |
US $6 |
||
|
58
|
58
57031522000
Jet Holder
97 |
57031522000 |
— | ||
|
60
|
60
57031511100
Float chamber with run over t.
97 |
57031511100 |
— | ||
|
62
|
62
57031514000
Plug
97 |
57031514000 |
— | ||
|
64
|
64
57731040000
Intake Trumpet For Phm 38 Nd
97 |
57731040000 |
— | ||
|
70
|
70
50131174000
Filter
97 |
50131174000 |
— | ||
|
71
|
71
15131112000 Fuel Filter97 |
15131112000 |
US $5 |
||
|
72
|
72
57031556000
Rebound Valve
97 |
57031556000 |
— | ||
|
74
|
74
0933060163 Hh Screw Din0933-M 6X1697 |
0933060163 |
US $0.61 |
||
|
75
|
75
57031513000 Hose Connector97 |
57031513000 |
US $7.16 |
||
|
79
|
79
57031508000
Pin
97 |
57031508000 |
— | ||
|
80
|
80
57731099000
Gasket Set Phm 38 Nd
97 |
57731099000 |
— | ||
|
81
|
81
58302095200
Choke Cable Cpl. Sx,sxc,sc'97
97 |
58302095200 |
— | ||
|
82
|
82
58302095251 Sleeve For Choke Cable97 |
58302095251 |
US $15.67 |
||
